Askubal Motorsport 570 Series Spherical Plain Bearings, Reinforced, UNF Thread

Askubal

Some options are available below Please check them before adding to the cart

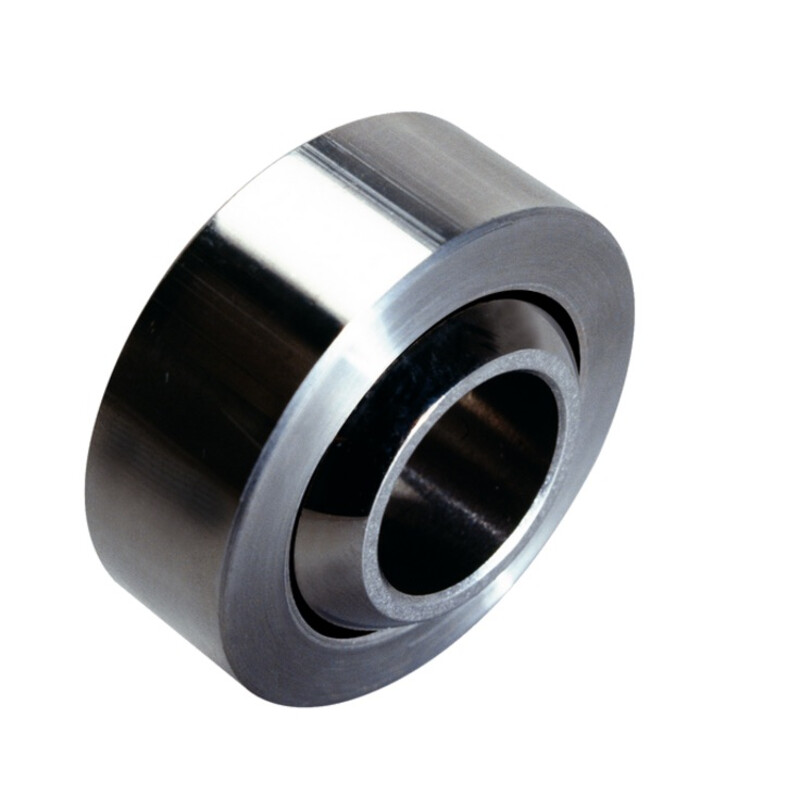

Askubal Spherical Plain Bearings

570 motorsport series, reinforced, wide angle
Diameter for UNF thread
Maintenance free with an antifriction film consisting of PTFE with metal fabric
Stainless steel inner ring, trempé, rectifié et poli
Outer ring of spherical bearing made of stainless steel, swaged around the inner ring
Made in Germany, high manufacturing quality

Ask a question about this product

Your choice *Please fill in this field.
1 x G 6-570 Plain Bearing | d=0.25" | d1=0.38" | B=0.593" +€81.99 (Dispatched under 2 to 4 days)
1 x G 8-570 Plain Bearing | d=0.3125" | d1=0.5" | B=0.813" +€85.99 (Dispatched under 2 to 4 days)
1 x G 10-570 Plain Bearing | d=0.375" | d1=0.5" | B=0.813" +€93.99 (Dispatched under 2 to 4 days)
1 x G 12-570 Plain Bearing | d=0.4375" | d1=0.6" | B=0.875" +€103.99 (Dispatched under 2 to 4 days)
1 x G 14-570 Plain Bearing | d=0.5" | d1=0.669" | B=0.937" +€129.99 (Dispatched under 2 to 4 days)
1 x G 16-570 Plain Bearing | d=0.625" | d1=0.844" | B=1.2" +€147.99 (Dispatched under 2 to 4 days)
1 x G 18-570 Plain Bearing | d=0.75" | d1=0.95" | B=1.28" +€179.99 (Dispatched under 2 to 4 days)
1 x G 22-570 Plain Bearing | d=0.875" | d1=1.11" | B=1.4" +€265.99 (Dispatched under 2 to 4 days)

€0.00

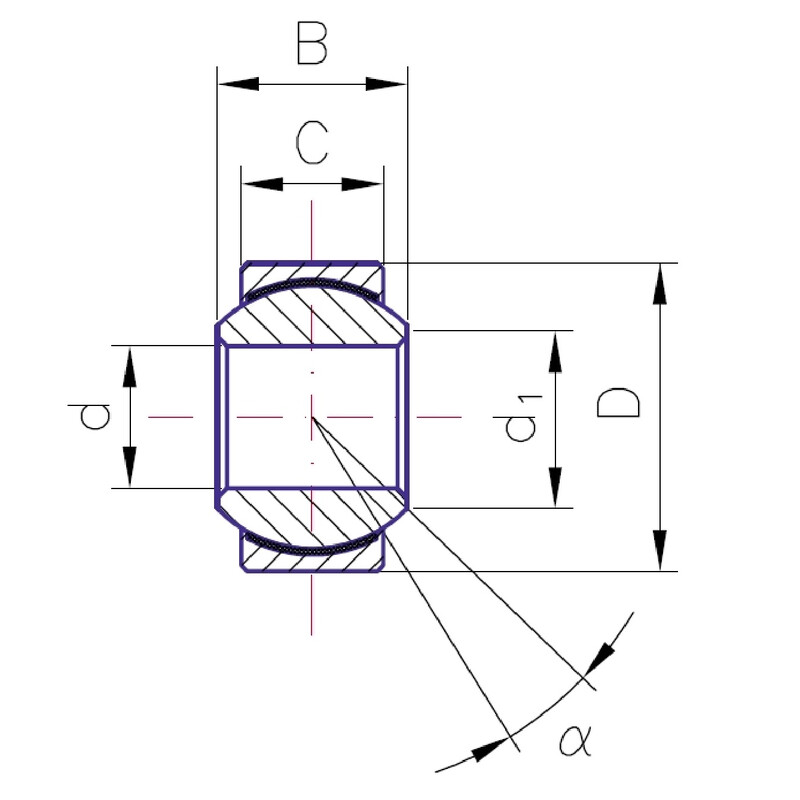

Reference	Name	d (Inch) Tolerance +0 -0.0005	d1 ~ min. (Inch)	B (Inch) Tolerance +0.000 -0.002	C (Inch) Tolerance +0.005 -0.005	D (Inch) Tolerance +0.0000 - 0.0005	Load rating static. C0 max. (kN)	Load rating dyn. C max. (kN)	Tilt angle α (°)	Weight (kg)
900349	G 6-570	0,2500	0,380	0,593	0,550	0,7400	44,88	18,05	24	0,016
900351	G 8-570	0,3125	0,500	0,813	0,345	0,9060	79,96	32,16	23	0,031
900353	G 10-570	0,3750	0,500	0,813	0,345	0,9060	79,96	32,16	23	0,031
900355	G 12-570	0,4375	0,600	0,875	0,345	1,0000	89,59	36,03	22	0,043
900357	G 14-570	0,5000	0,669	0,937	0,401	1,1250	119,01	47,86	20	0,072
900359	G 16-570	0,6250	0,844	1,200	0,567	1,3750	213,68	85,94	20	0,111
900361	G 18-570	0,7500	0,950	1,280	0,620	1,5625	253,00	101,75	18	0,142
900363	G 22-570	0,8750	1,110	1,400	0,625	1,7500	283,98	114,21	18	0,195

Askubal Rod Ends and Spherical Plain Bearings Specifications

Spherical bearings and rod ends are an integral part of motorsports. Askubal's many years of experience in the development and production of bearings form the foundation of their motorsports range. Their applications cover all forms of motorsports, from go-karts and motorcycles to race cars, rally cars, and even Formula 1. The spherical bearings are used in chassis, shock absorbers, steering linkages, as well as in suspensions and drive train.

The bearings used in motorsports are fundamentally similar to those in the industry. However, industrial bearings are usually not suitable for automotive competition. The requirements for bearings in this field differ from those in mechanical engineering. Optimal performance and high load capacity are essential criteria. This is why Askubal has developed a range specifically designed to withstand the high loads and speeds of motorsports.

The bearings are available in different series, with metric or UNF dimensions, in a maintenance-free version with a PTFE coating or a maintenance-required version, with or without a V-groove. They can have internal or external threading, right-hand, left-hand, or fine-pitch threads.

Askubal bearings comply with DIN ISO 12240-1 and 12240-4 standards. These standards define dimensional series, tolerances, internal radial clearance, and dimensions. However, they remain quite broad, allowing for a wide variety of material combinations, surface treatments, and sliding elements. On the other hand, designations, permissible loads, and service life calculations are not standardized and vary between manufacturers. Do not confuse this product with low-cost, unbranded spherical bearings, which are fragile and dangerous. Askubal spherical bearings are extremely strong and do not break!
