AP Racing Double Ended Handbrake Master Cylinder
Dispatched under
7 to 11 days, as of Monday, May 12, 2025
This item is made in the United States !
AP Racing Double Ended Master Cylinder
- Dual circuit : two inputs and two outputs
- Material : forged aluminium
- Inlet and outlet threads : M10x100
- Rod end spherical bearings and rubber boots included
- AP Racing quality
Ask a question about this productAP Racing Double Ended Handbrake Master Cylinder Specifications

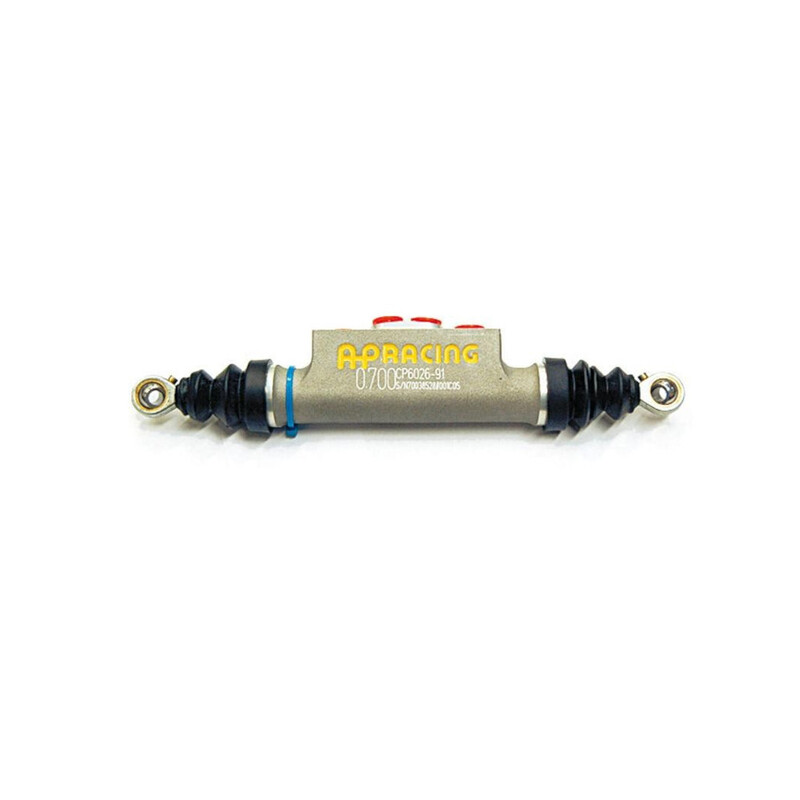

Light and compact, this AP Racing double ended master cylinder for dual hydraulic handbrake circuits is made of forged aluminium with an anodised finish. The push rod and piston are made in one piece to ensure a high level of strength. It features two 10x100 inlet and two 10x100 outlet threads. Rod end spherical bearings and rubber boots are included.

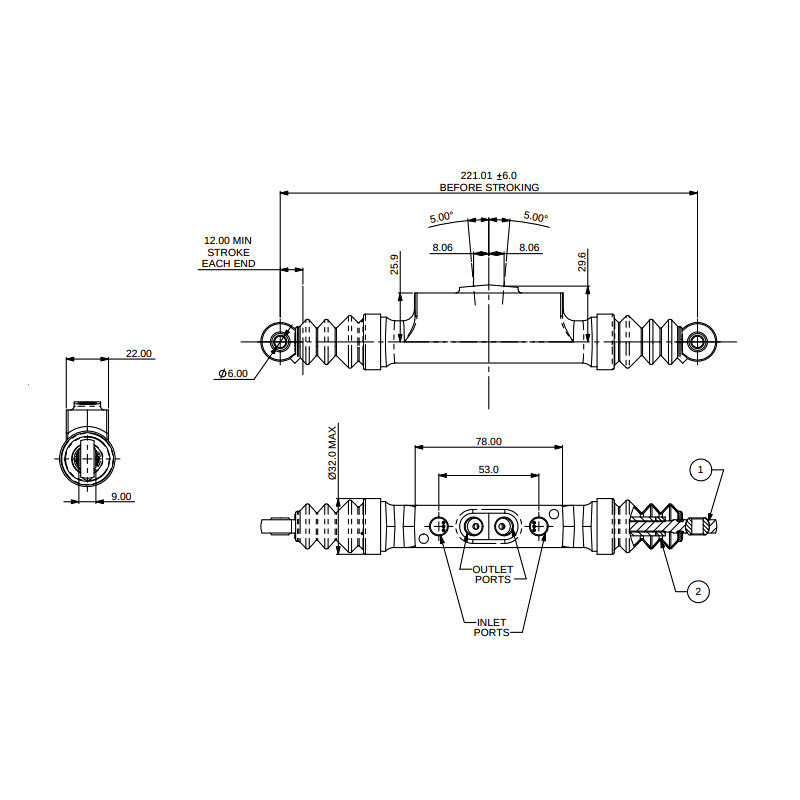

Technical data :
- Weight : 250 grams (0.55 lbs)
- Full stroke : 2x12 mm
- Bore diameter : 17.8 mm (0.70")
- Travel to cut-off : 0.48 to 0.63 mm (0.19" to 0.25")
- Inlet and outlet hydraulic threads : M10x100
Characteristics
| Manufacturer | AP Racing |
|---|
Number 1 in competition quality brakes, AP Racing is the performance line brand from Brembo. Offering clutch kits and master cylinders too, AP Racing cover all sorts of needs for the best equipped vehicles around.
