AiM SW4 GT Formula Steering Wheel

AiM
Some options are available below Please check them before adding to the cart

AiM Formula 4 GT Steering Wheel

  • 5" TFT display with adjustable settings
  • Integrated 4 GB data logger
  • Fully configurable buttons and rotary switches
  • Supports over 2000 ECU protocols
  • Shift lights and alarm RGB LEDs
  • Removable handgrips
  • Easy setup with Race Studio 3
  • Available in 320 or 350 mm diameter
  • Optional shift paddles
  • Your choice *Please fill in this field.
€0.00

AiM SW4 GT Steering Wheel Specifications

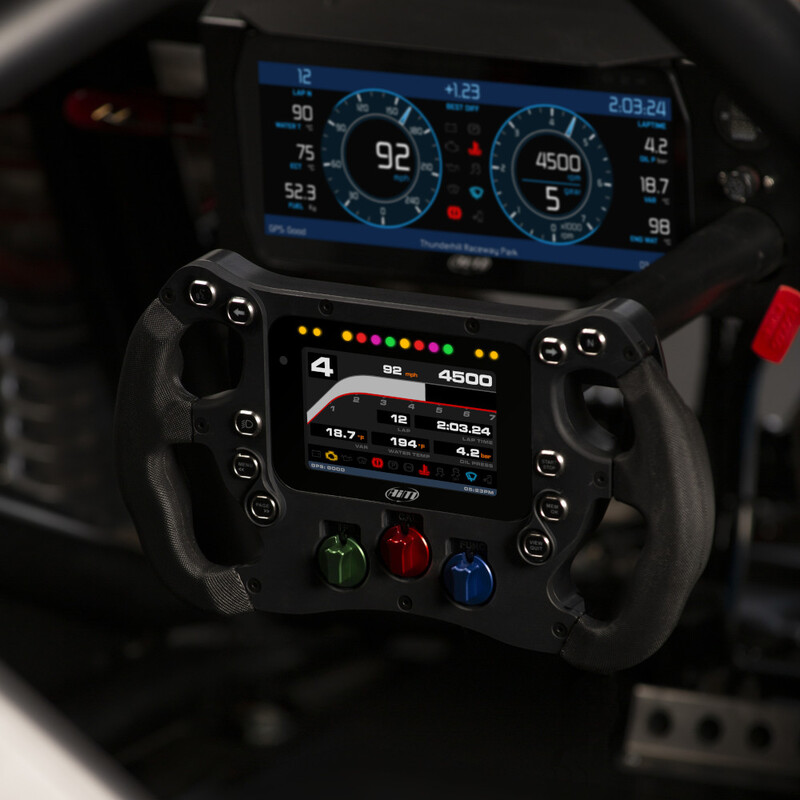

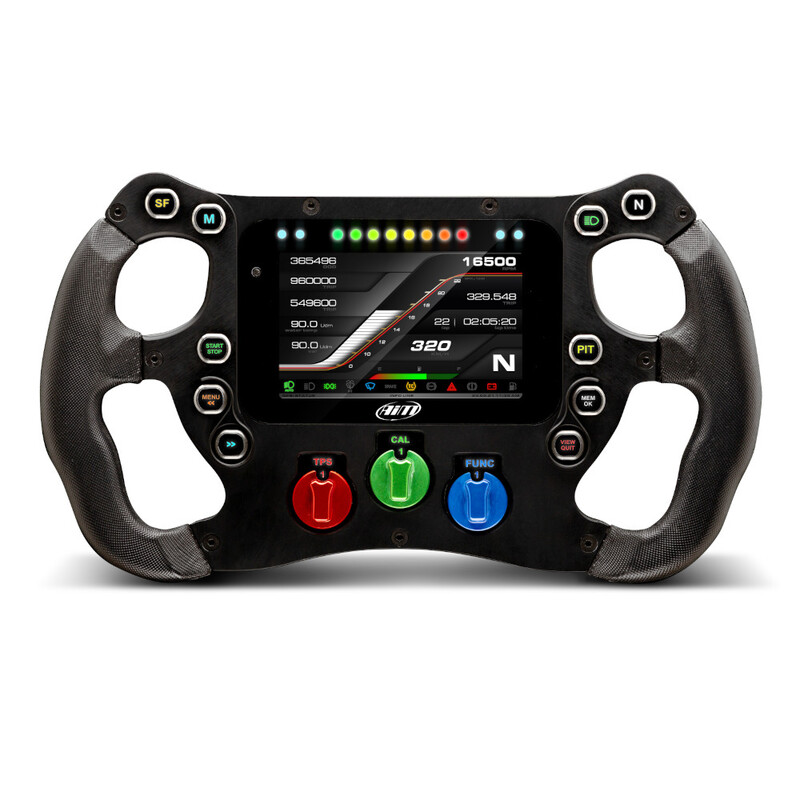

The AiM SW4 GT is a steering wheel with an integrated display specially designed for formula cars and sport-prototypes, available in 320 or 350 mm. It features a data logger that can be fully configured and adapted to many motorsport disciplines.

Extremely versatile, this steering wheel can obtain and display data from more than 1000 ECU models. The data sampled through the CAN interface depends on the ECU, but generally includes RPM and engine load, throttle position, oil, air and water temperatures, oil pressure, battery voltage, speed, engaged gear, air/fuel ratio...

The SW4 GT steering wheel features a high-contrast 5-inch TFT display for perfect readability in any light conditions. It displays a wide range of real-time graphic layouts. It has 8 shift light LEDs and 4 alarm LEDs, as well as 10 pushbuttons and 3 rotary switches, all backlit and configurable. The removable polyurethane handle grips ensure a perfect grip and a great comfort of use.

Thanks to the Race Studio 3 software, you can easily configure the steering wheel functions according to your preferences and analyze all the data recorded during the race.

Several extra devices from the manufacturer can be connected to the steering wheel using the 3 CAN ports in order to expand its functionality: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Memory Module...

Technical specifications:

  • Display: 5" TFT 800 x 480 pixels
  • Shift lights: 8 configurable RGB LEDs
  • Alarm lights: 4 configurable RGB LEDs
  • CAN connections: 3
  • ECU connection: CAN
  • ECU compatibility: 1000+ ECUs
  • Internal memory: 4 GB
  • Material: Anodized aluminum
  • Buttons: 10 pushbuttons + 3 rotary switches (all with RGB backlights)
  • Connector: 1 Deutsch Autosport 22-pin male connector
  • Dimensions: 320 x 183.5 x 42.5 mm ou 350 x 183.5 x 42.5 mm
  • Weight: 2.6 kg
  • Waterproof: IP67

Video:

Characteristics

AiM is the world leader in motorsport data acquisition. The company offers products that combine the functions of traditional tachometers, temperature and pressure gauges, and stopwatches in compact, high-performance, and easy-to-use instruments. On-board cameras, instrumented steering wheels, digital displays, recorders, GPS chronos and sensors are among the brand's essentials.
