AiM Solo 2 DL GPS Lap Timer with ECU Input

AiM
Some options are available below Please check them before adding to the cart

AiM Solo 2 DL Lap Timer

  • Ideal for track days, regularity events, performance tests (0-100 km/h...)
  • Direct ECU data logging
  • Ultra-precise integrated GPS
  • Graphical display
  • 10 configurable RGB LEDs
  • Wi-Fi connectability
  • 4 GB internal memory
  • Database with over 2000 tracks worldwide
  • Automatic track recognition
  • Choice of connection: OBDII, CAN/RS232 or RPM
  • Your choice *Please fill in this field.
  • Optional bracket
€0.00

AiM Solo 2 DL GPS Lap Timer Specifications

The AiM Solo 2 DL is a lap timer with data acquisition designed for motor sports, both ultra-precise and very easy to use. It receives data from two satellite navigation systems, GPS and Glonass, which makes it much faster and accurate than the previous version with a tolerance of 2 hundredths of a second. It can also be connected to the vehicle's ECU to obtain various data from previously installed sensors.

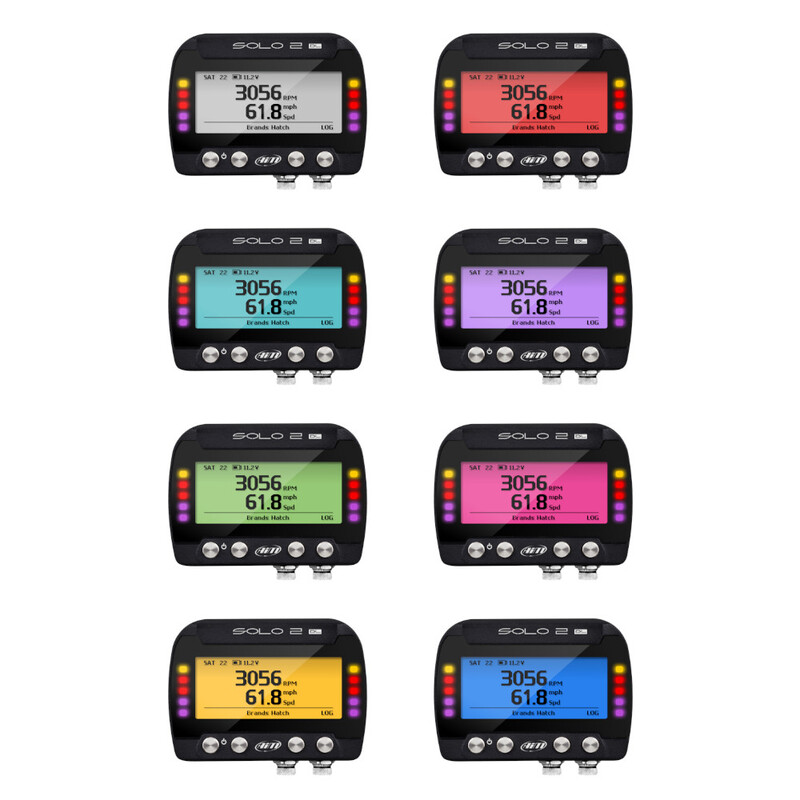

This lap timer has a high contrast display for excellent readability of the data displayed. It offers a choice of 7 different backlight colors to easily adapt to your preferences.

The predictive lap timing feature allows you to compare your current lap to your best lap in real time. The LEDs are also configurable and inform you if you are faster or slower. Several display options are available depending on your needs.

Very versatile, the Solo 2 DL has two modes: speed races on a closed track or performance tests (for example: 0-100 km/h). For each of these configurations, the lap timer displays all the data in real time and records it for review after each session.

The Solo 2 DL GPS lap timer lets you create a new temporary or permanent track layout if it's not in its database, whether it's a rally stage or a closed-loop track. With more than 2000 tracks from around the world preloaded, Solo 2 DL identifies its location as soon as it is switched on. Once you start driving, it automatically recognizes the track's starting line coordinates and begins sampling lap times every time you go past.

Solo 2 DL can be easily connected to the vehicle's ECU (more than 1000 supported models) in order to obtain a large amount of data, such as: RPM, throttle position, oil, air and water temperatures, oil pressure, battery voltage, speed, engaged gear, air/fuel ratio. It is possible to connect to the ECU using the OBDII port, or directly via the CAN/RS232 channel. If your vehicle does not have an ECU, you can also connect the lap timer to a coil RPM. Please choose the option adapted to your configuration when ordering.

The Solo 2 DL has built-in Wi-Fi connectivity that allows you to analyze data in depth and transfer it quickly and securely to a computer up to 50 meters away without the use of cables. This data can then be imported into the Race Studio 3 software.

With Race Studio 3, you can create, modify, delete, import and export configurations with all channels, ECU drivers, math channels, display pages, digital outputs, alarms, shift lights... This powerful software can also analyze all the data recorded by the Solo 2 DL and download to your PC: graphs, histograms and tables to provide you with objective support that will help you improve your driving and overall performance.

The following additional devices can be connected to Solo 2 DL: Lambda Controller and SmartyCam HD or GP HD camera.

Technical specifications:

  • Display: Graphical
  • Resolution: 238 x 99 pixels
  • Display pages: Up to 8 freely configurable
  • Backlight: 7 configurable RGB colors
  • Shift lights/alarm LEDs: 10 configurable RGB LEDs
  • 3 axis inertial platform: Accelerometer ± 5 G + gyroscope + magnetometer
  • Wi-Fi connection: Yes
  • GPS: 10 Hz
  • ECU connection: CAN, RS232 or K-Line
  • External power: 12 V
  • Connectors: 1 Binder 712 socket, 5 pins + 1 Binder 712 socket, 8 pins
  • Internal memory: 4 GB
  • Battery type: Rechargeable Lithium
  • Dimensions: 98 x 73.7 x 30.2 mm
  • Weight: 249 g (battery included)
  • Waterproof: IP67

Included in the box:

  • Solo 2 DL lap timer
  • Power cable with AC adapter
  • Choice of power lead: CAN/K-Line with OBDII connector, CAN/RS232 or RPM
  • Mounting bracket with screws
  • Race Studio 3 software

Characteristics

AiM is the world leader in motorsport data acquisition. The company offers products that combine the functions of traditional tachometers, temperature and pressure gauges, and stopwatches in compact, high-performance, and easy-to-use instruments. On-board cameras, instrumented steering wheels, digital displays, recorders, GPS chronos and sensors are among the brand's essentials.
