AiM SmartyCam GP HD 2.2 Onboard Camera
AiM SmartyCam GP HD Rev. 2.2

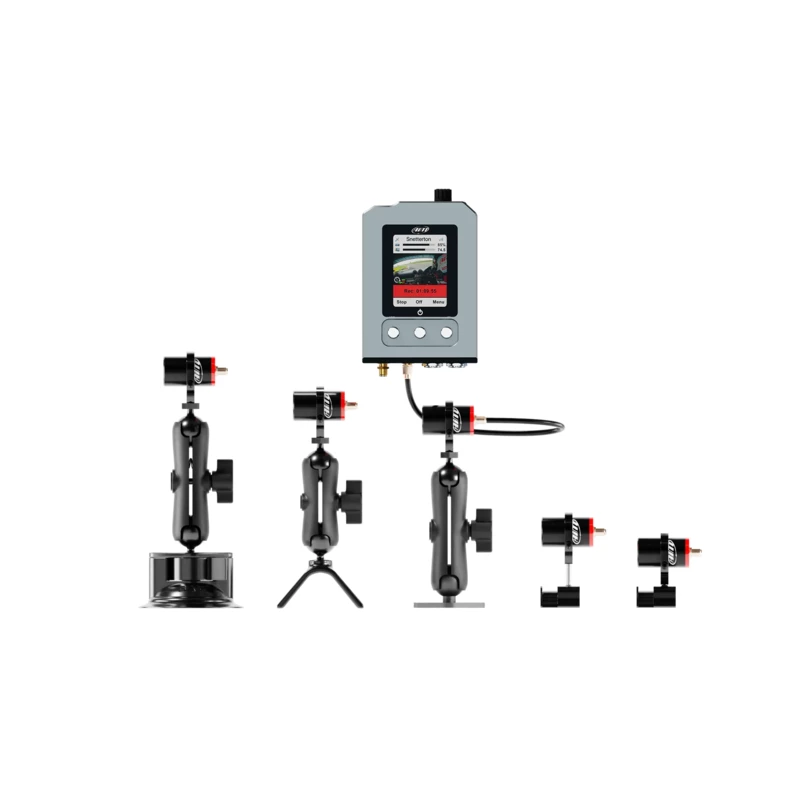

- Onboard camera with bullet designed for motorsports
- 1280p HD quality recording at 30 fps
- Real-time overlay videos
- TFT color display
- Choice of lens and CAN cable
- Automatic start/stop feature
- Crystal clear images without distortion or wave effect
- Many configuration options
- 100% waterproof compact housing
Ask a question about this productSmartyCam GP HD 2.2 AiM Specifications

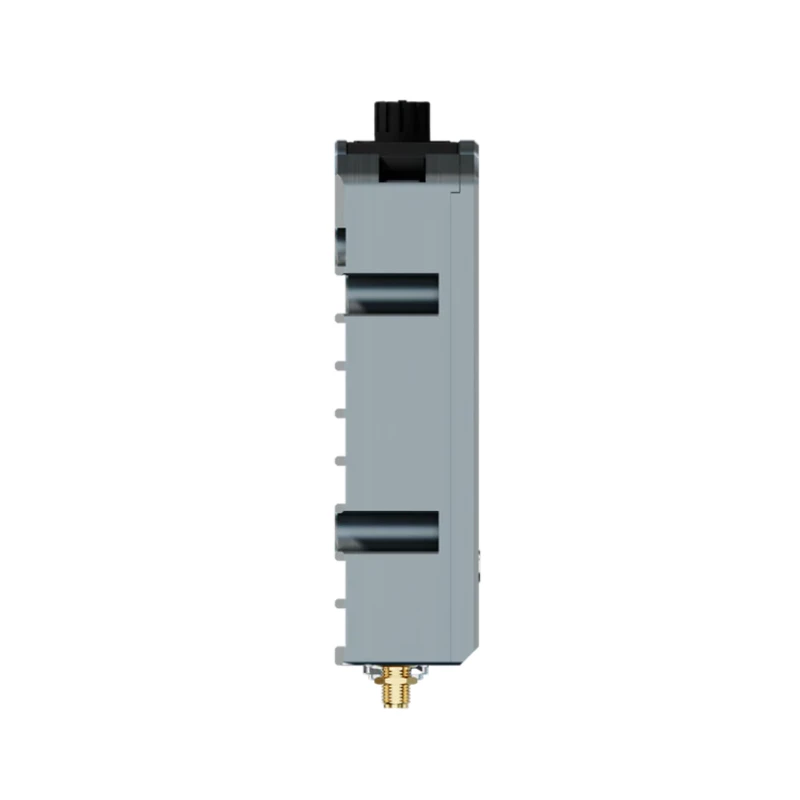

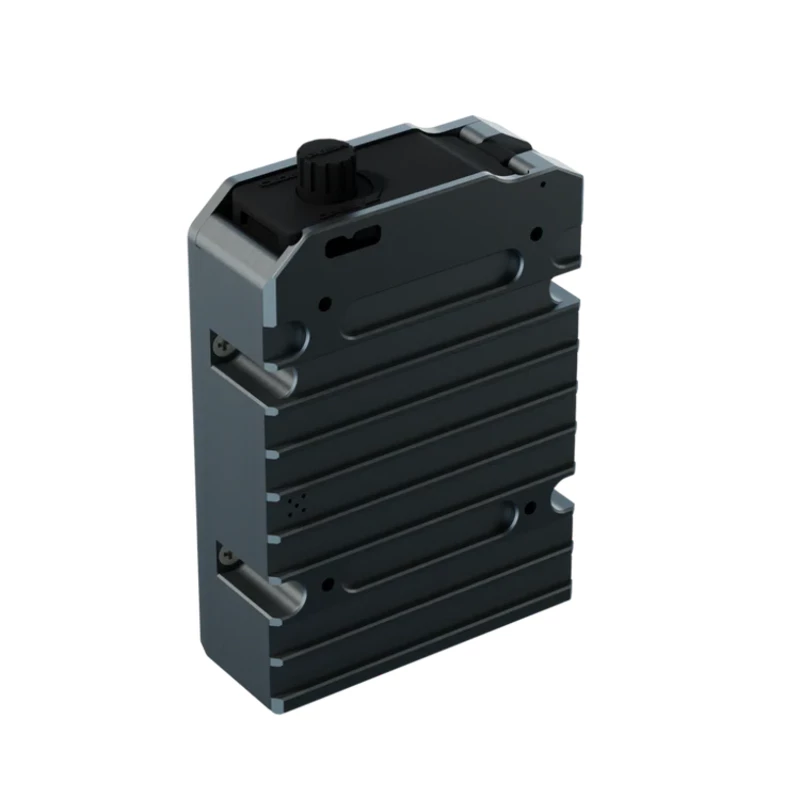

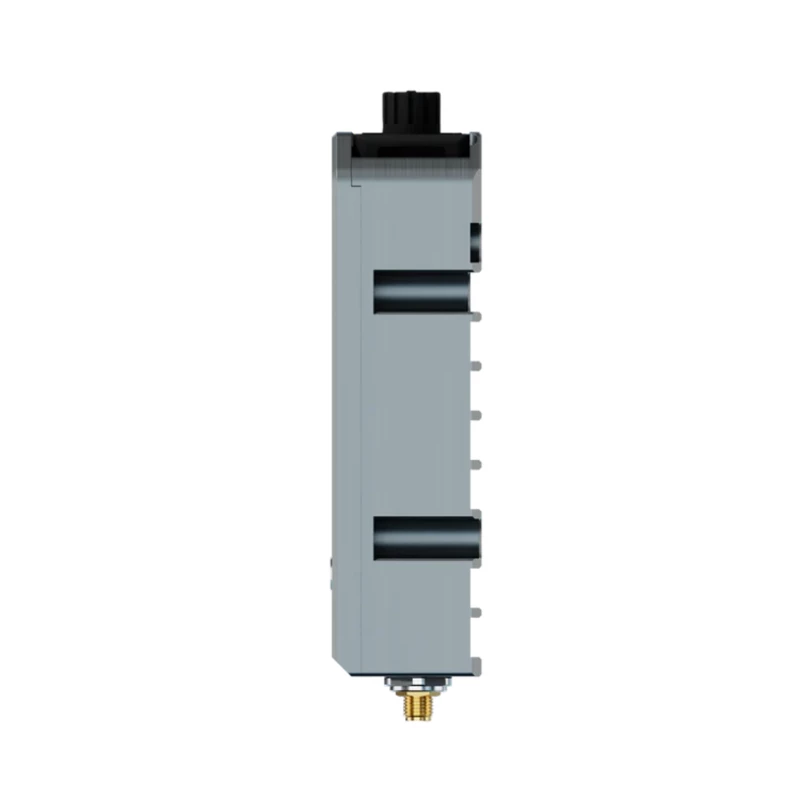

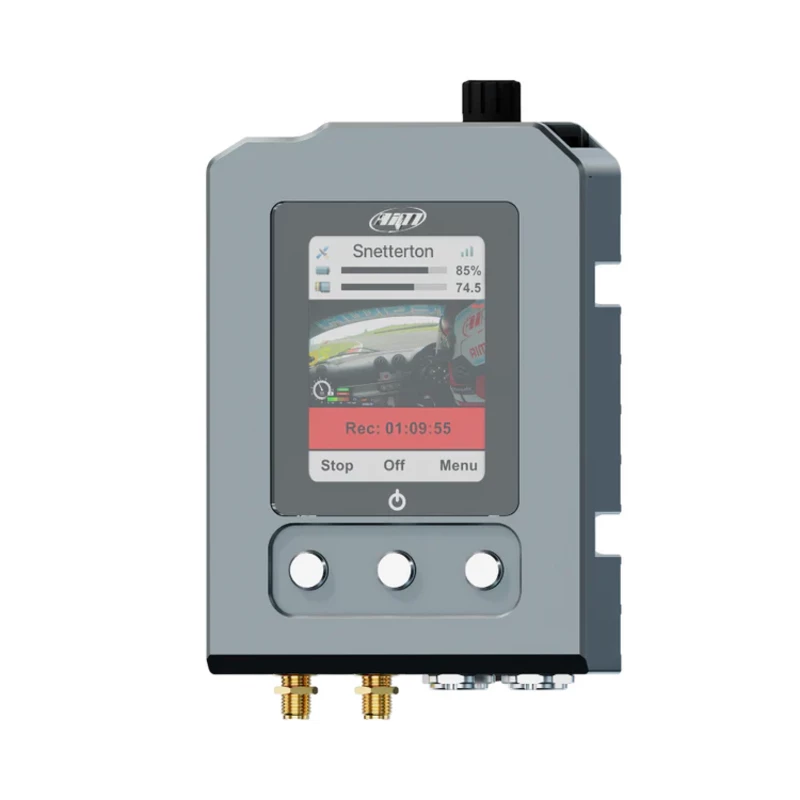

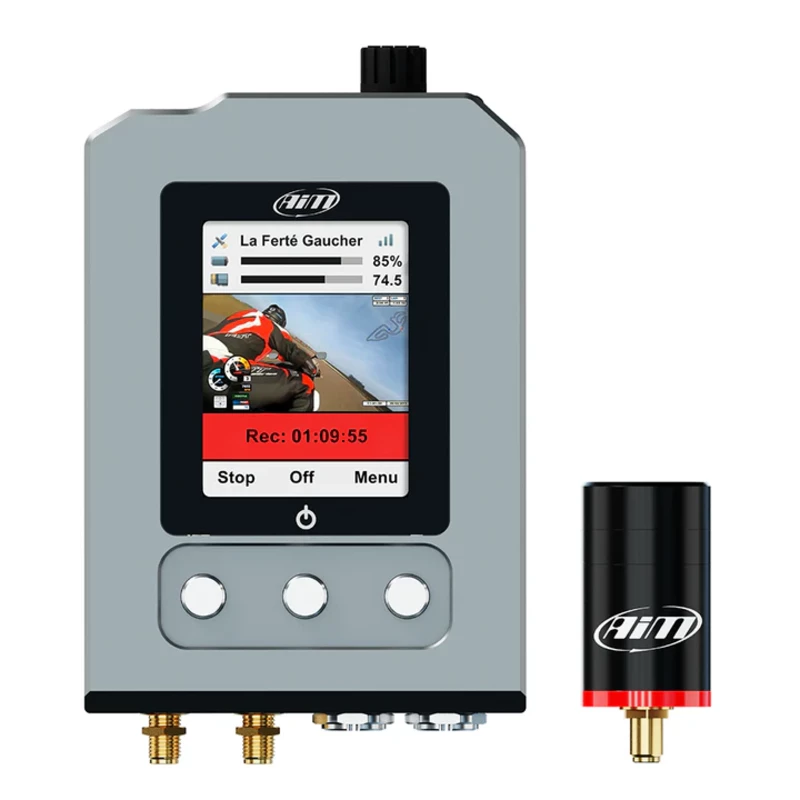

The AiM SmartyCam GP HD 2.2 bullet-camera is specially designed for motorsports. It allows you to record videos that include all the useful data to help you improve your performance on road or track. Very compact and robust thanks to its anodized aluminum casing, this camera is capable of producing high quality HD videos and features a color TFT display on the front for immediate playback and easy configuration, as well as a bullet connection cable very resistant to vibration and electromagnetic interference.

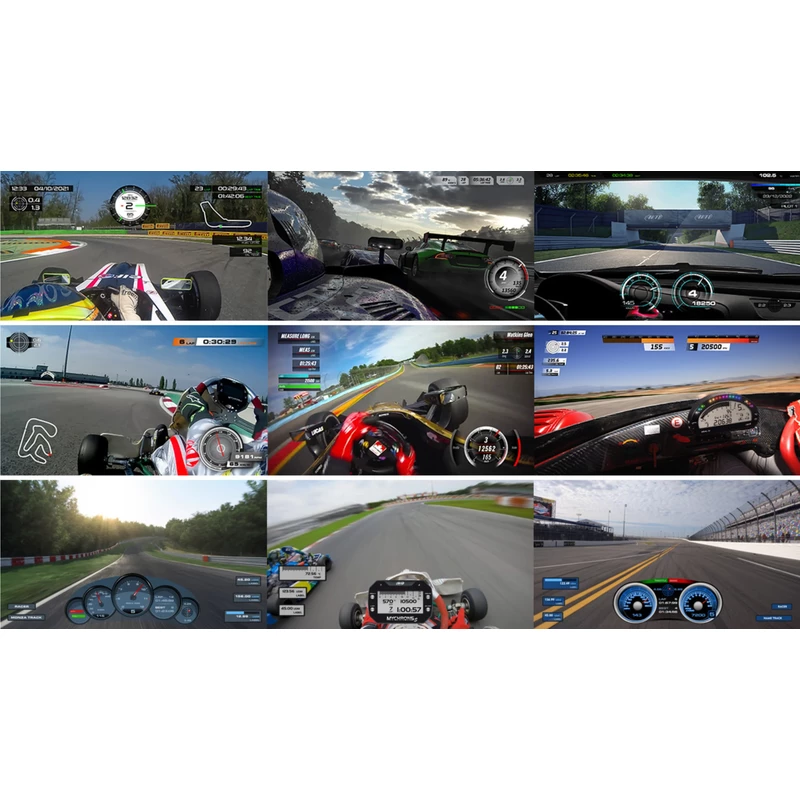

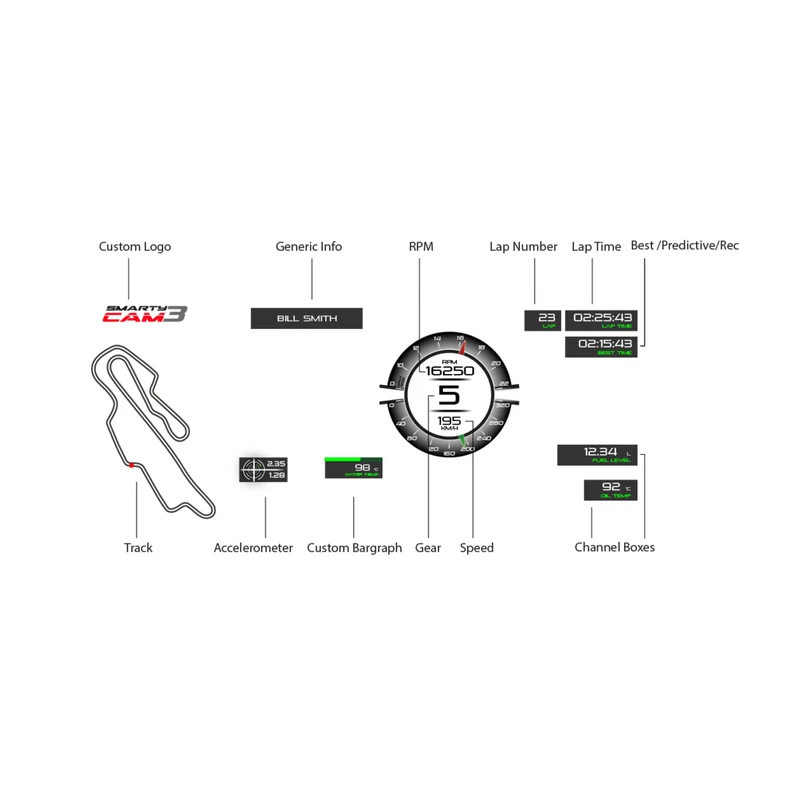

The SmartyCam GP HD 2.2 is able to overlay different data in real time on videos and offers multiple graphic layouts. The track map, vehicle position, speed, lap and split times are provided by the GPS module. With a data logger connected to your ECU, RPM, throttle, engaged gear, acceleration, temperatures, pressures and other data from additional sensors can be displayed.
The SmartyCam GP HD 2.2's new CMOS sensor and high-end lens provide superior image quality and avoid wave and wobble effects, even in the most challenging conditions (low brightness, vibration, heat, etc.). It comes with three lens choices: 67° field of view for closed-roof vehicles, 84° for open-roof vehicles and formula cars, or 120° for an even wider view of the track.
On the starting grid, you only need to focus on what's important - your race. That's why this camera is able to switch on and off automatically and can also start and stop recording automatically.

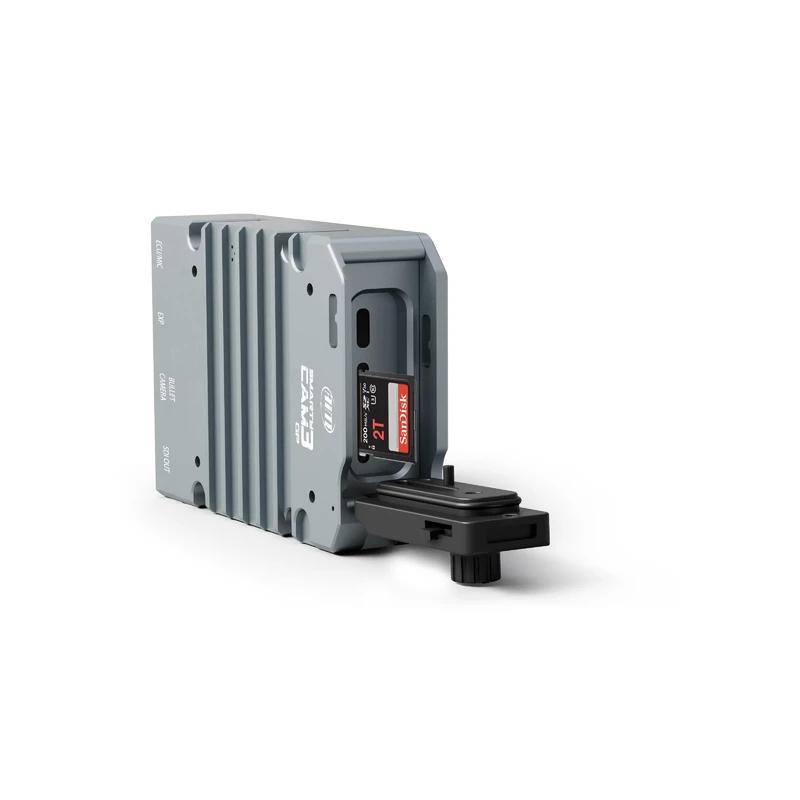

This SmartyCam GP HD 2.2 benefits from an optimized compression system for a perfect balance between video quality and file size. The videos are stored on an SD card (not included) and three modes are available: high quality, 1 hour = 4 GB, standard quality, 1 hour = 2 GB, low quality, 1 hour = 1.5 GB.
The camera can be connected through the CAN network to many AiM devices: MX series, MXL 2, MyChron, Solo2 DL, EVO5, ECU Bridge... It is also possible to connect several SmartyCam on the same CAN network.

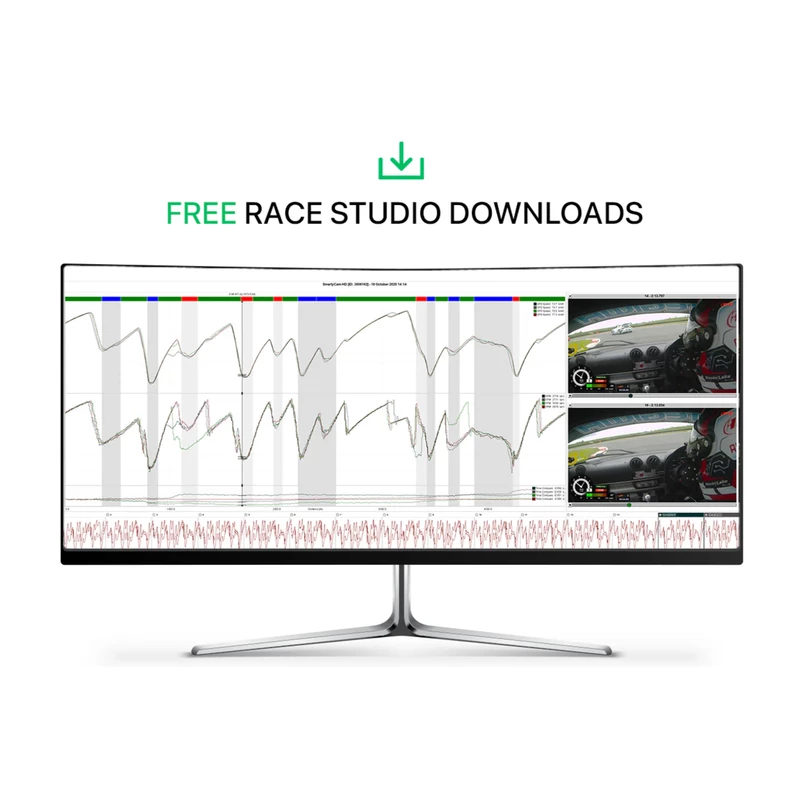

With the included Race Studio 3 software, you can configure various camera settings, manage maps, compare two laps, and much more. You can also analyze all the data recorded by the SmartyCam once downloaded to your PC: graphs, histograms and tables will help you evaluate your performance to avoid mistakes and improve your driving.
Technical specifications:
- Video format: H.264 1280 x 720 pixels at 30 fps
- TFT display resolution: 2.4", 240 x 320 pixels
- Lens: Telecentric with 6 elements
- Supported SD card: Up to 128 GB
- Memory capability:
1.5 GB (1 hour of low quality recording)
2 GB (1 hour of standard quality recording)
4 GB (1 hour of high quality recording) - Internal battery: Rechargeable Lithium 1500 mAh
- Internal battery duration: Between 60 and 70 minutes of recording
- Accelerometer: Triaxial ± 5 G
- Usage temperatures: -10°C/+60°C
- Dimensions: Main unit 104.6 x 79.6 x 26.6 mm, Bullet camera 24 (diam.) x 48.2 mm
- Weight: Main unit 320 g, Bullet camera 45 g
- Waterproof: IP67
Included in the box:
- SmartyCam GP HD 2.2 with choice of 67°, 84° or 120° lens
- Choice of 2 meter or 4 meter CAN cable
- External power cable
- Battery charger with AC power adaptor
- Race Studio 3 software installation CD
- User manual
