AiM MXP Strada Dash

AiM MXP Strada Dash Specifications

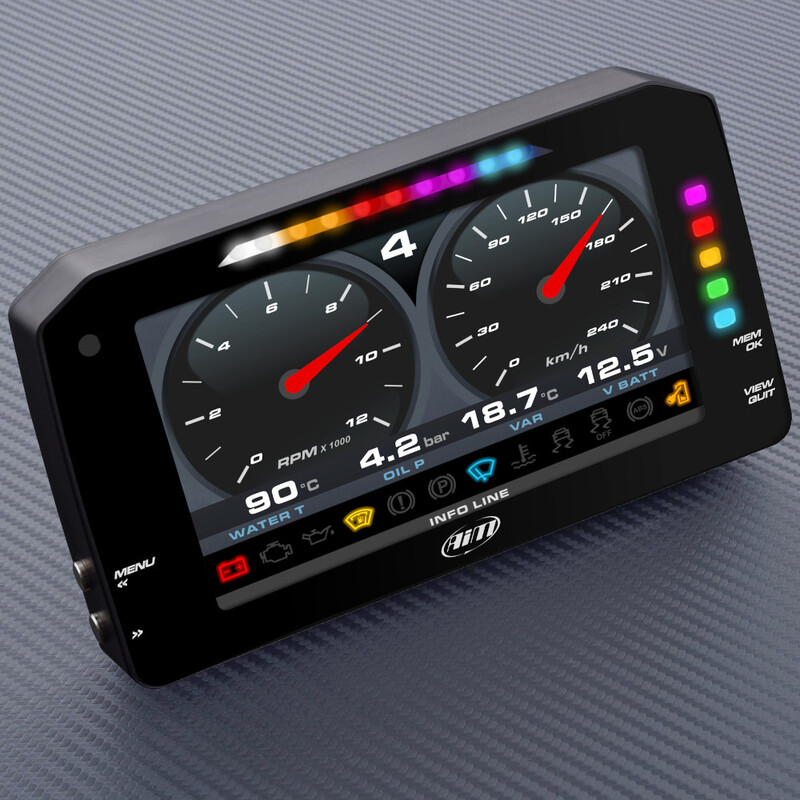

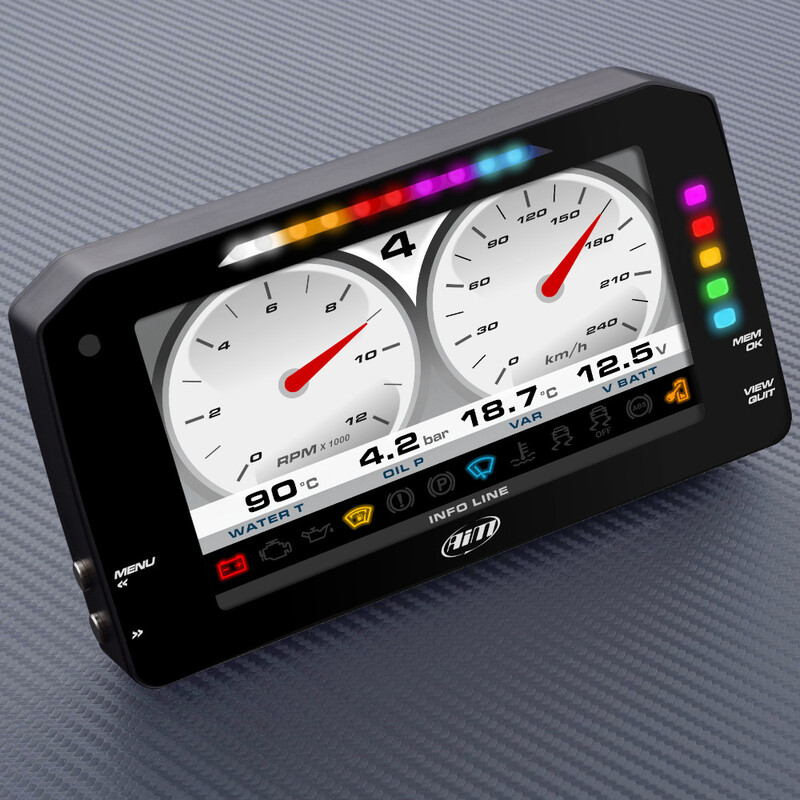

The AiM MXP Strada is a fully customizable digital dashboard capable of handling a very large number of data sources. It features a large 6" color TFT display with 50% more display area than the MXS Strada while maintaining the same overall dimensions, making it once again suitable for both cars and motorcycles. This high contrast display offers optimal readability thanks to its ambient light sensor that automatically adjusts the backlighting according to the conditions.

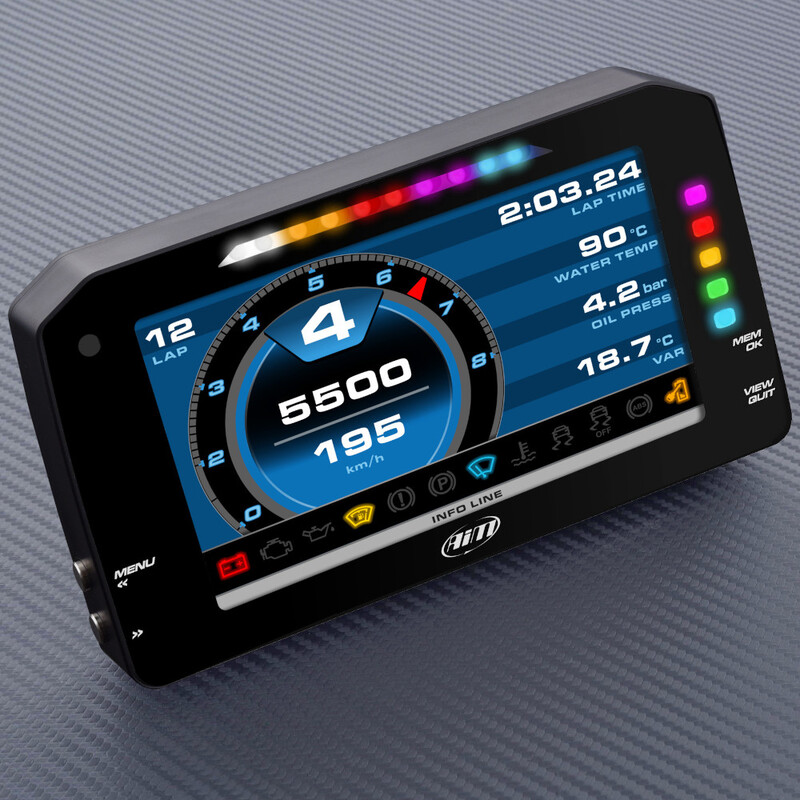

Fully customizable, the MXP Strada allows you to define all the custom pages you want to display. Simply choose from a large number of available templates and define which data to display, their scale and measure units. Navigating between pages is easy using the buttons or a remote interface (sold separately) if the display is out of reach.

This digital dashboard integrates configurable shift lights and alarms. The 10 shift lights can be set at will by defining the RPM threshold for each gear. The same goes for the alarms with the choice of color, solid or flashing lights and flashing frequency. You can also add a text message and manage priorities.

The display can sample data coming from the ECU, analog and digital inputs, predefined math channels, a second CAN or the optional GPS Module. It connects easily to the ECU (over 1000 models supported) and displays instantly dozens of channels. The sampled data can vary depending on the ECU but generally include RPM, throttle position, oil, air and water temperatures, oil pressure, battery voltage, speed, gear, air/fuel ratio.

This dashboard features two digital outputs that can be configured to be activated or deactivated according to the values of the analog or digital inputs. This gives you the possibility to control external equipment such as additional lights, a fan or a pump. The CAN output allows you to send data directly to a CAN network to take advantage of an extended data support.

Highly versatile, the MXP Strada can also be fitted with a mirror camera (sold separately) thanks to its two dedicated analog inputs: the display will then show the camera's images if you press a button or if certain conditions are met. This option is particularly useful for vehicles with limited rear view.

The MXP Strada can be configured using the Race Studio 3 software. You can easily create, modify, delete, import and export configurations from different sources.

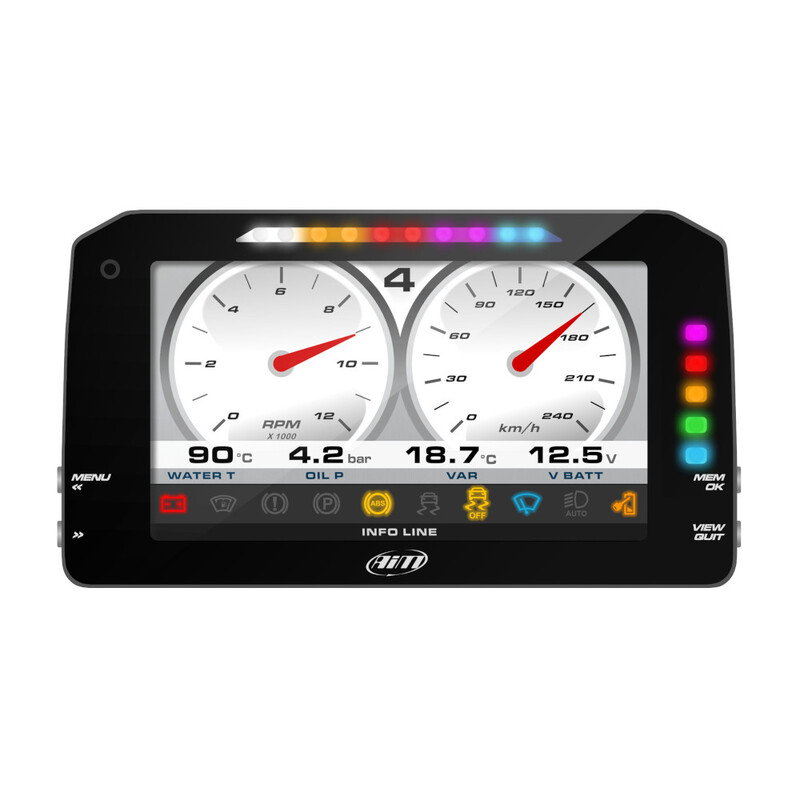

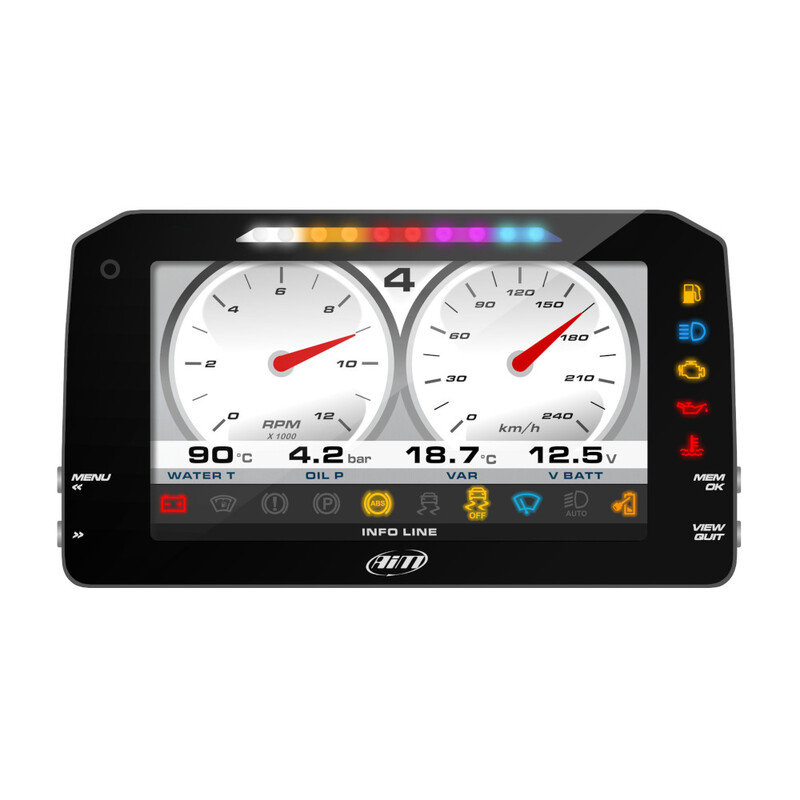

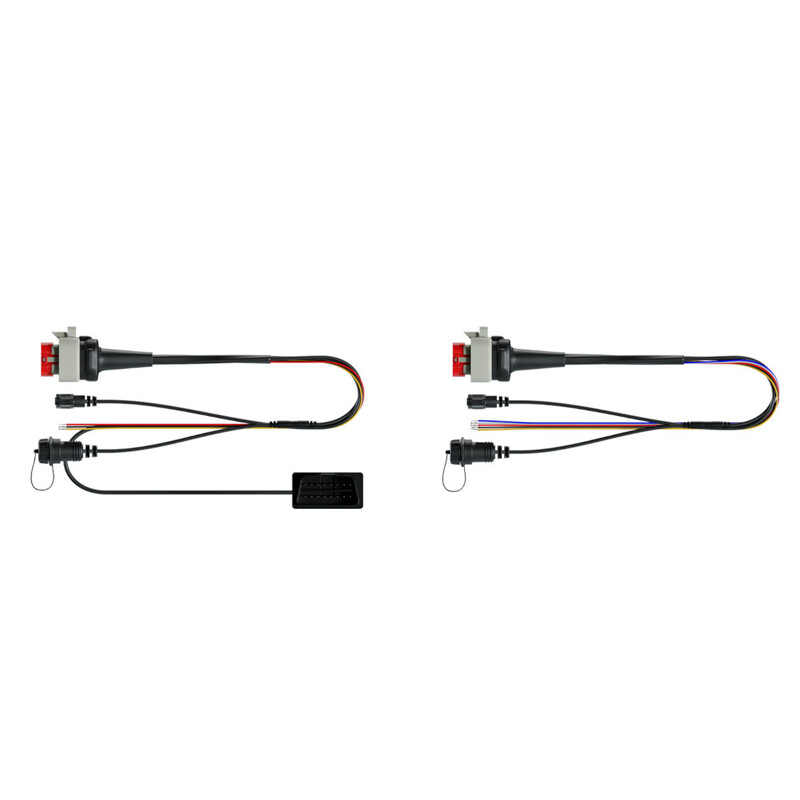

The MXP Strada is available in two versions: Race, ideal for the track and competition with its configurable LED alerts, and Road, perfect for street use with its icons for fuel level, headlights, oil pressure, water temperature... Each version includes an odometer. A choice of ECU connection is also available: OBDII/K-Line or CAN.

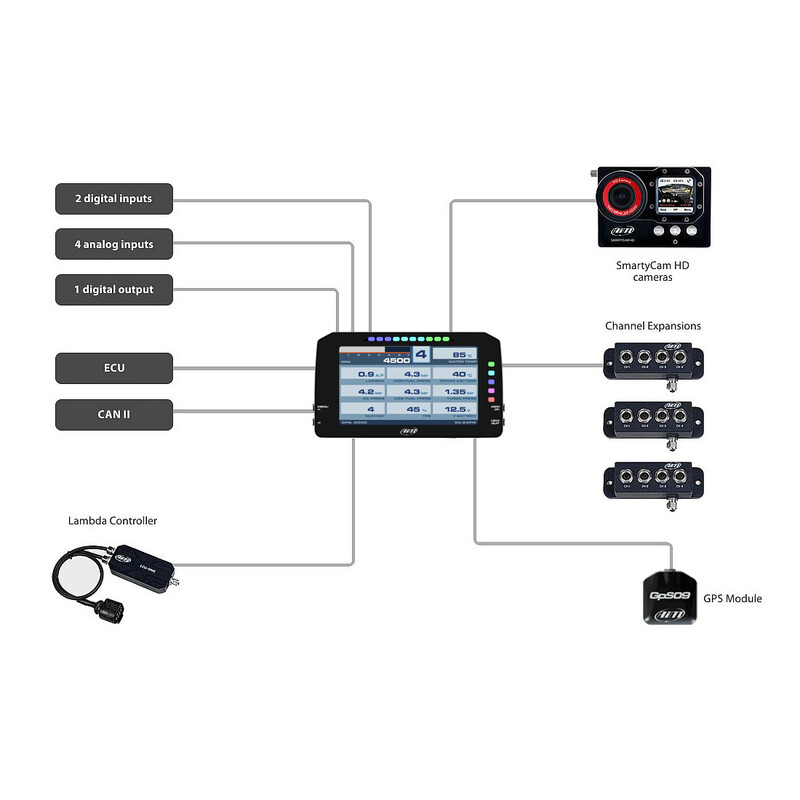

Additional devices can be connected to the MXP Strada via CAN bus: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD...

Technical specifications:

• Display: 6" TFT
• Resolution: 800 x 480 pixels
• Alarms LEDs: 5 configurable RGB LEDs
• Shift lights: 10 configurable RGB LEDs
• CAN connections: 3
• ECU connections: CAN, RS232 or K-Line
• ECU compatibility: 1000+ ECUs
• Expansion CAN connection: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD
• Analogue inputs: 8 fully configurable, max 1000 Hz each
• Digital inputs: 1 speed, 1 coil RPM
• Digital outputs: 1 (1 A max)
• Body: Anodized aluminum
• Connectors: 2 AMP + 1 Binder
• Power consumption: 400 mA
• Dimensions: 189.6 x 106.4 x 24.9 mm
• Weight: 590 g
• Waterproof: IP65

Included in the box:

• MXP Strada
• USB cable
• 14-pin standard harness
• Race Studio 3 software
