AiM MXL 2 Dash Logger with GPS Module

AiM MXL2 Dash Logger Specifications

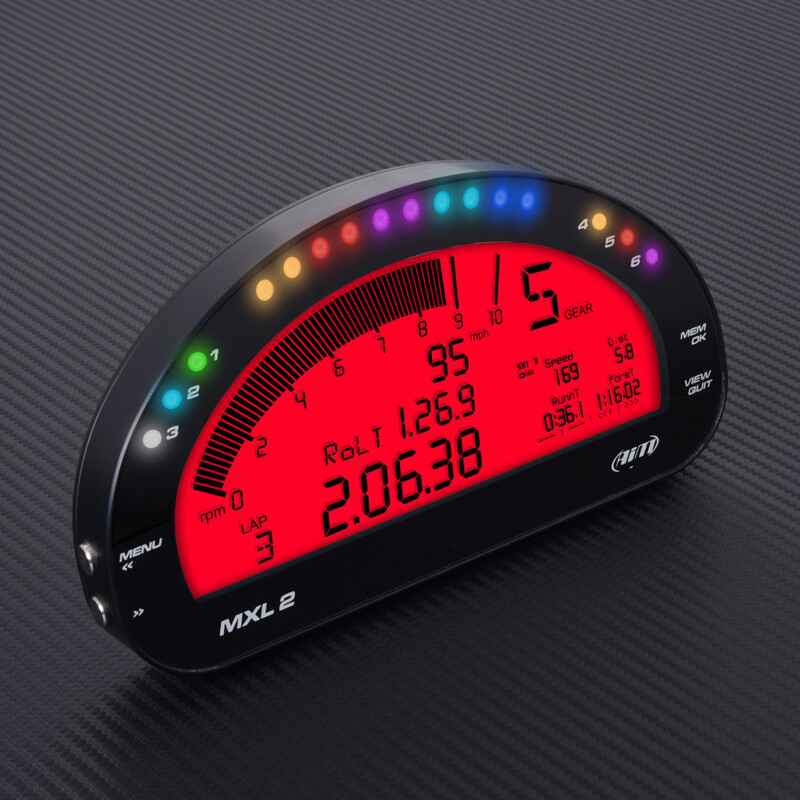

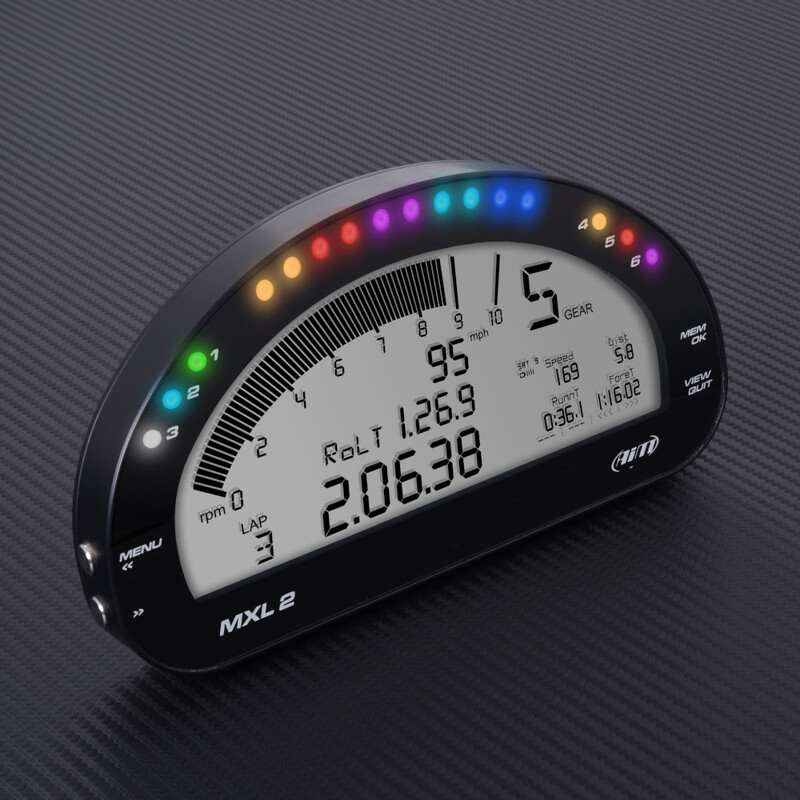

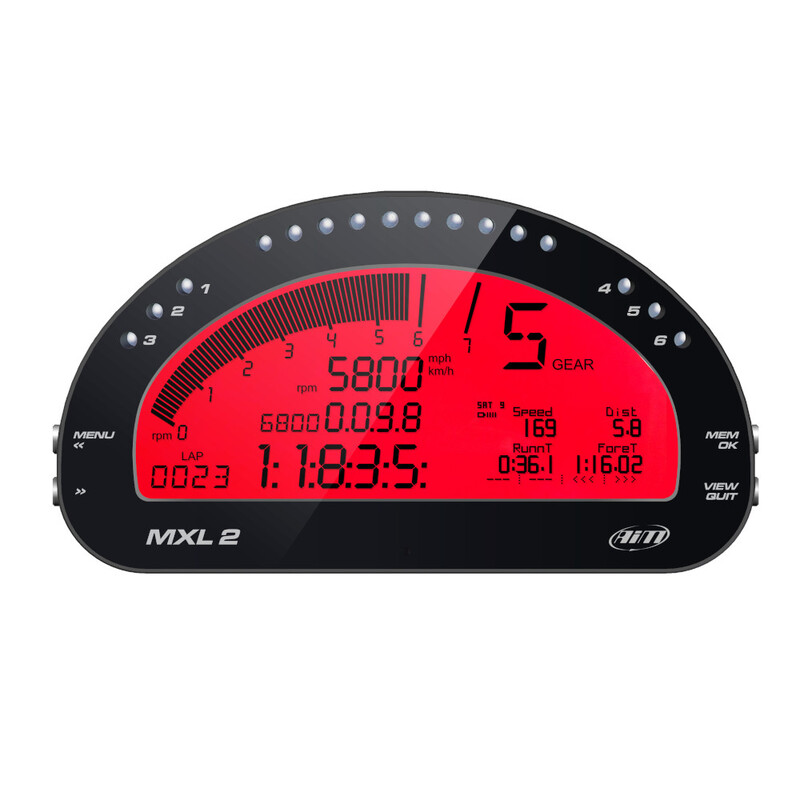

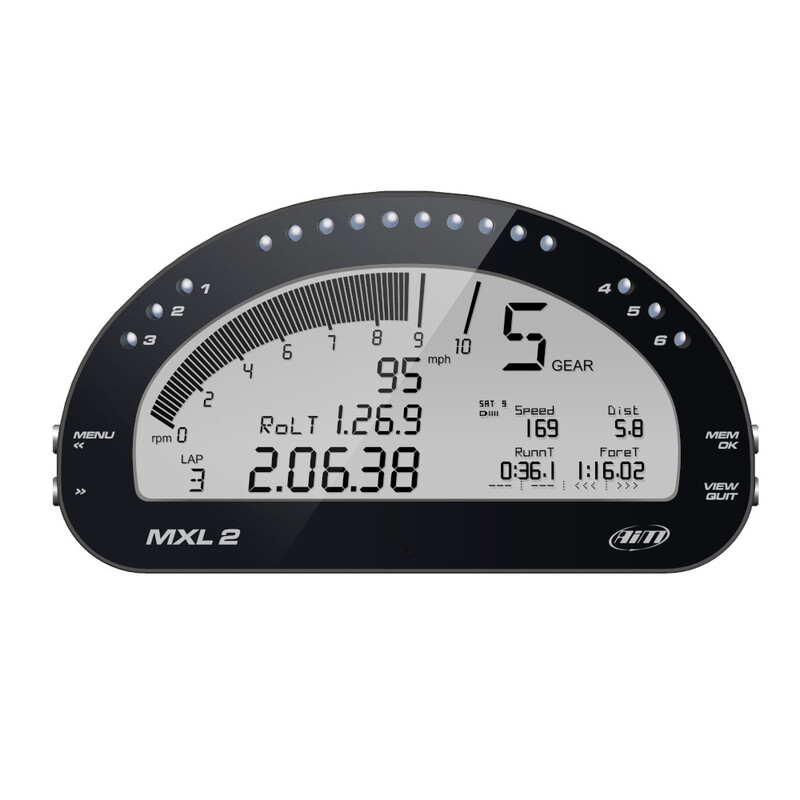

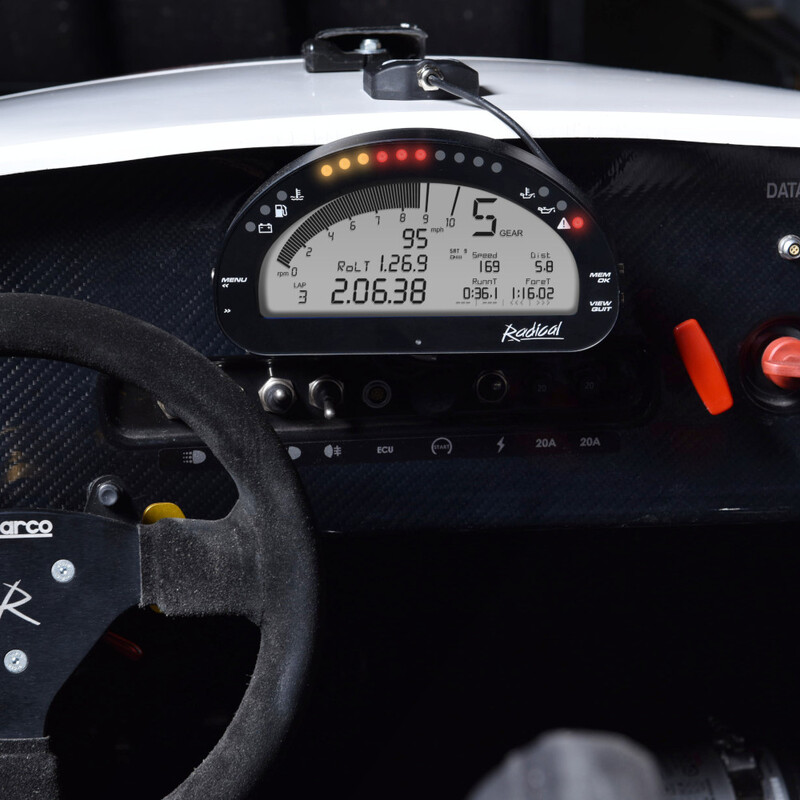

The AiM MXL 2 Logger is a digital dashboard capable of acquiring and displaying a very large amount of data. It features a graphical LCD display in a compact housing, which makes it suitable for both cars and motorcycles. This display has a high-contrast white or red backlight and offers optimal readability thanks to its ambient light sensor that automatically adjusts the brightness according to the conditions.

Fully customizable, the MXL 2 allows you to define up to 8 custom pages. Simply choose from a large number of available templates and define which data to display, their scale and measure units. Navigating between pages is easy using the buttons or a remote interface (sold separately) if the display is out of reach.

This digital dashboard integrates configurable shift lights and alarms. The 10 shift lights can be set at will by defining the RPM threshold for each gear. The same goes for the alarms with the choice of color, solid or flashing lights and flashing frequency. You can also add a text message and manage priorities.

The display can sample data coming from the ECU, the internal accelerometer and gyroscope, analog and digital inputs, predefined math channels or the included GPS Module. It connects easily to the ECU (over 1000 models supported) and displays instantly dozens of channels. The sampled data can vary depending on the ECU but generally include RPM, throttle position, oil, air and water temperatures, oil pressure, battery voltage, speed, gear, air/fuel ratio.

This dashboard features two digital outputs that can be configured to be activated or deactivated according to the values of the analog or digital inputs. This gives you the possibility to control external equipment such as additional lights, a fan or a pump. The CAN output allows you to send data directly to a CAN network to take advantage of an extended data support.

You can configure, calibrate and download your data directly using the secure 802.11 Wi-Fi connection. No need to plug in the PC next to the vehicle, you stay in control up to a distance of about 50 meters.

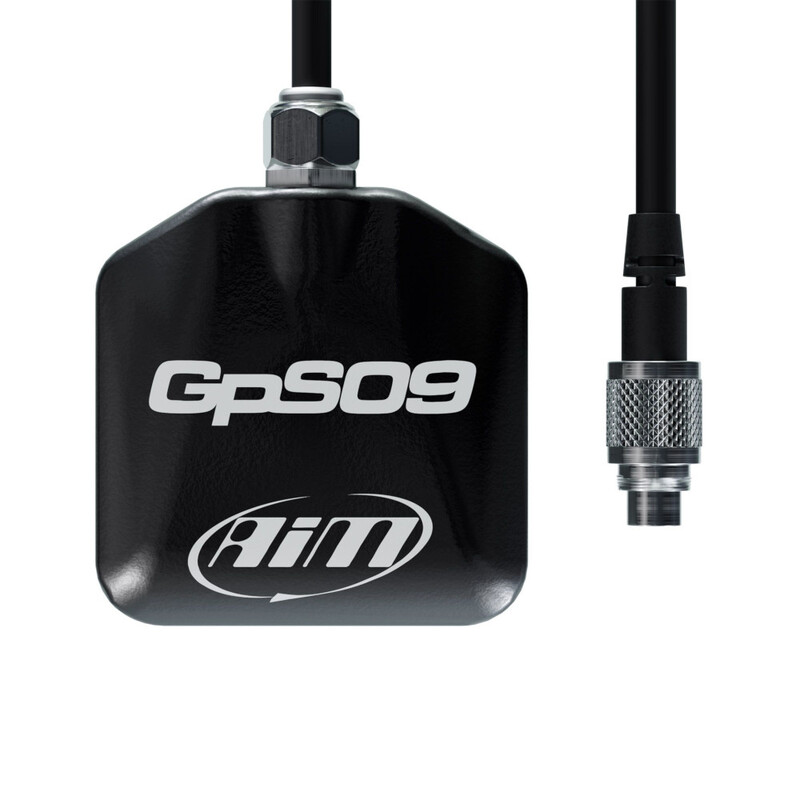

The GPS Module and its GPS Manager software allow you to immediately get lap times as well as all the data necessary for tuning your engine and improving your driving. With the GPS Manager, it is possible to define start/finish lines and splits, but also to download a complete track database. Light, fast, reliable and accurate, the GPS Module provides important information, such as chassis analysis, track position, speed, Gs, automatic lap times...

The MXL 2 can be configured using the Race Studio 3 software. You can easily create, modify, delete, import and export configurations from different sources.

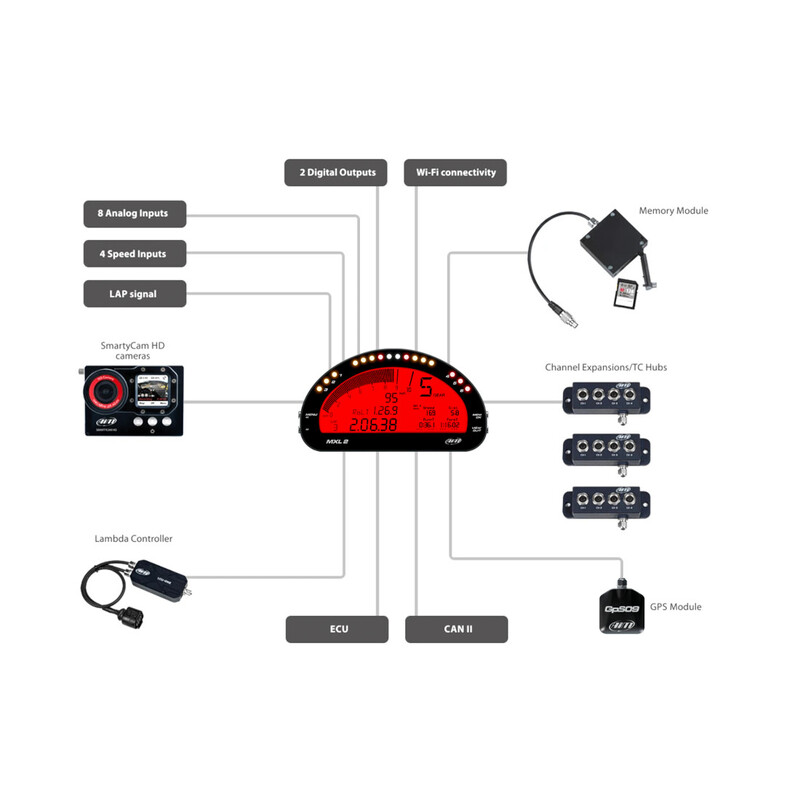

Additional devices can be connected to the MXL 2 via CAN bus: Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Memory Module...

Technical specifications:

• Display: LED display + graphical portion
• Backlight: White or red
• Alarms LEDs: 6 configurable RGB LEDs
• Shift lights: 10 configurable RGB LEDs
• CAN connections: 3
• ECU connections: CAN, RS232 or K-Line
• ECU compatibility: 1000+ ECUs
• Expansion CAN connection: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Memory Module
• Analogue inputs: 8 fully configurable, max 1000 Hz each
• Digital inputs: 4 speed, 1 lap signal, 1 coil RPM
• Digital outputs: 2 (1 A max)
• 3 axis inertial platform: Accelerometer ± 5 G + gyroscope
• Internal memory: 4 GB
• Body: Anodized aluminum

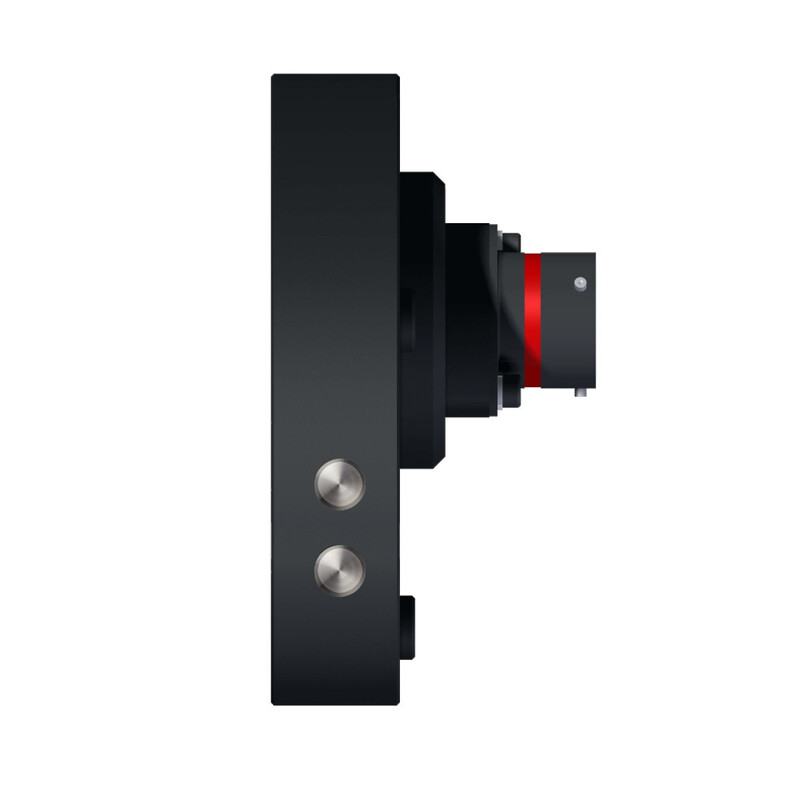

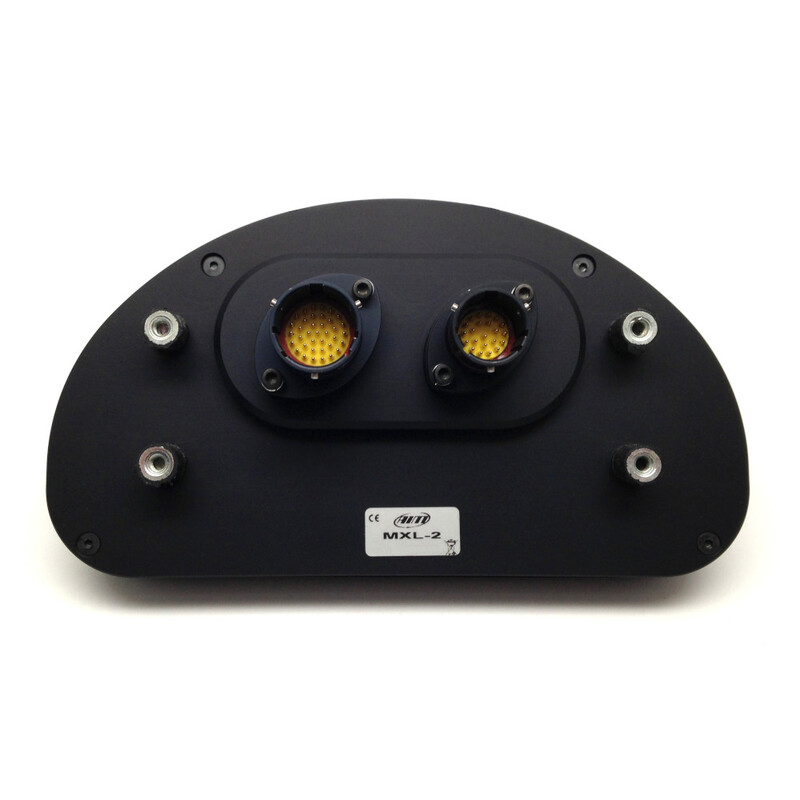

• Connectors: 2 motorsport connectors
• Power consumption: 400 mA
• Dimensions: 187.8 x 103 x 21 mm
• Weight: 530 g
• Waterproof: IP65

Included in the box:

• MXL 2 Logger
• USB cable

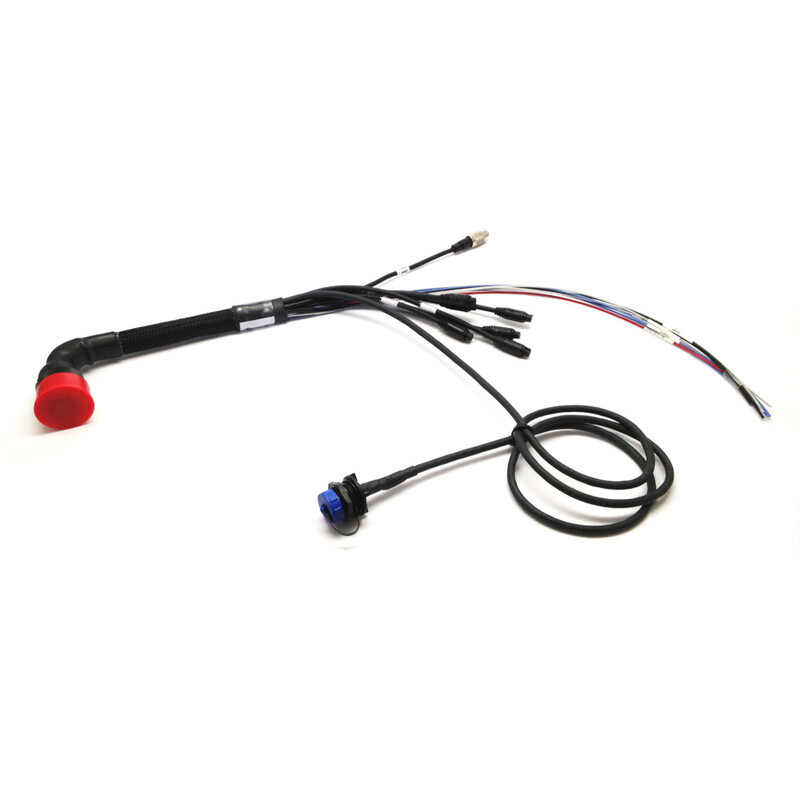

• 37-pin standard harness
• GPS Module with cable
• Race Studio 3 software
