AiM MXK10 Dash Logger for Kawasaki Ninja ZX-10R (2011-2020)

AiM MXK10 Dash Logger Specifications

The AiM MXK10 Logger is a plug and play digital dashboard specifically designed for Kawasaki Ninja Gen. 4 ZX-10R (2011-2015) or Gen. 5 ZX-10R, ZX-10RR and ZX-10R SE (2016-2020) bikes. It is capable of acquiring and displaying a very large amount of data, is compatible with the original harness and comes with a mounting bracket for easy installation. The MXK10 lets you monitor and record your bike's parameters to help you improve your bike's setup, your lines and your braking points.

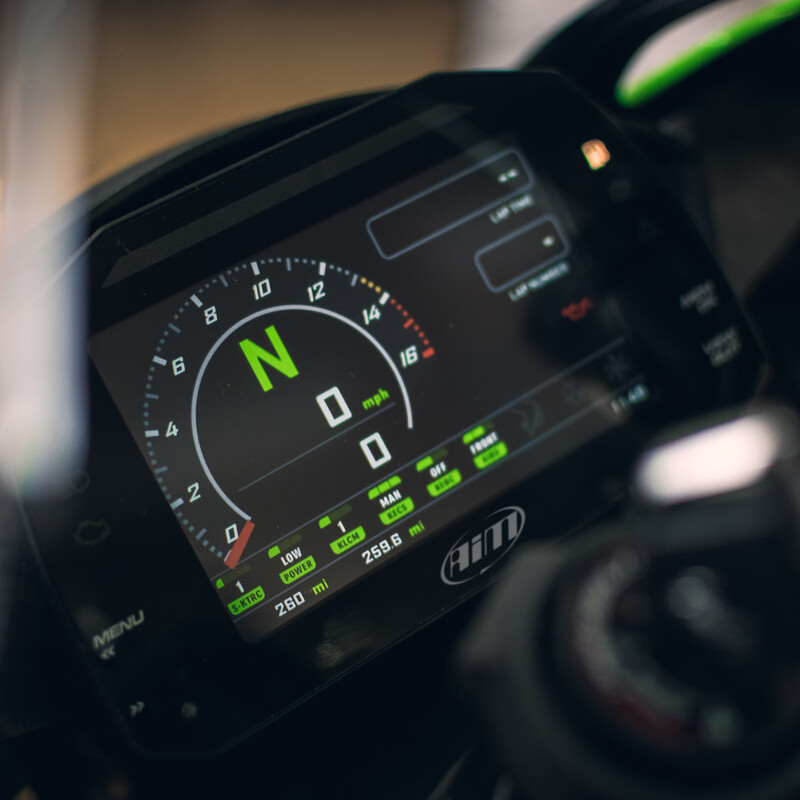

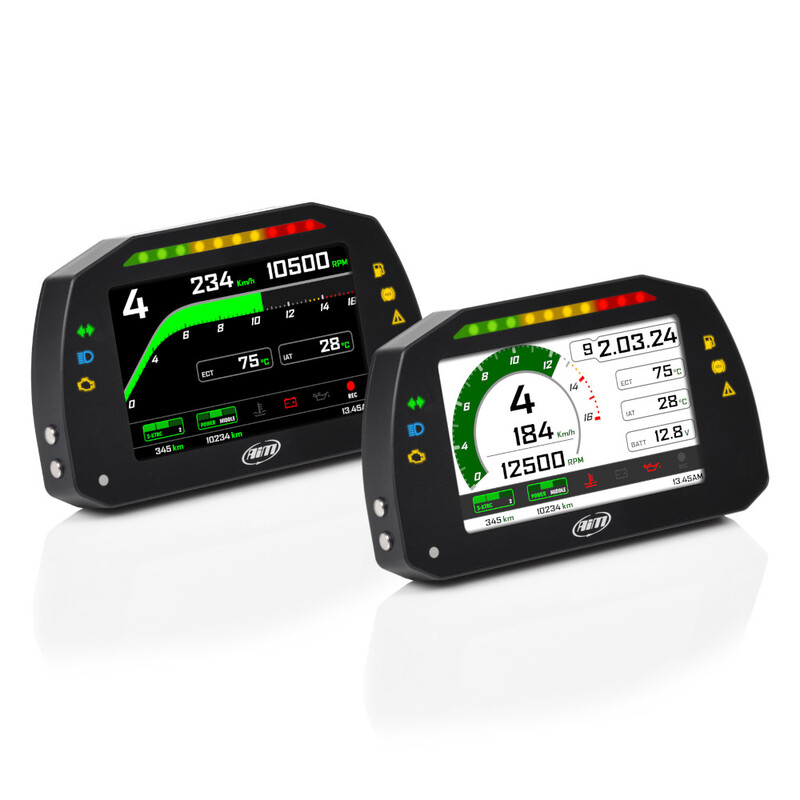

Lightweight and stylishly designed, the MXK10 features a 5" TFT color display that is easy to read in any light conditions. It is fully configurable and can display all the data you want: RPM, shift lights, high beams, turn signals, engine problems, ABS, fuel flow level, water temperature, battery voltage, oil pressure, etc.

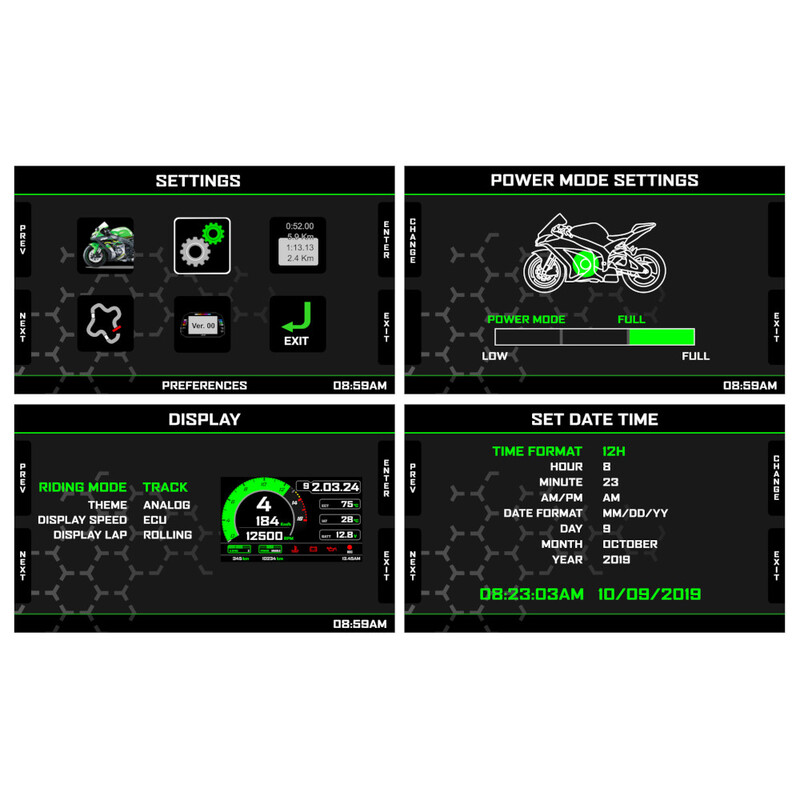

Navigating through the menus is simple and instinctive and allows you to configure the display according to your riding preferences, or road or track conditions. It is possible to modify in a few seconds all the parameters of your motorcycle: ECU mapping, traction control, ABS, suspensions, anti-wheelie...

If you're riding on a track, you can automatically get your lap times from the included GPS Module and the huge track database installed in the MXK10. The device records all data coming from the ECU and GPS Module. You can download them after each session for further analysis and performance improvement using Race Studio 3 software.

You can set up, calibrate and download your data directly using the secure 802.11 Wi-Fi connection. No need to plug the PC next to the bike, the wireless connection makes usage easier during your track days sessions and you won’t worry anymore about cables that you may have forgotten at home. The data is stored directly in your PC, ready to be analyzed with the AiM software.

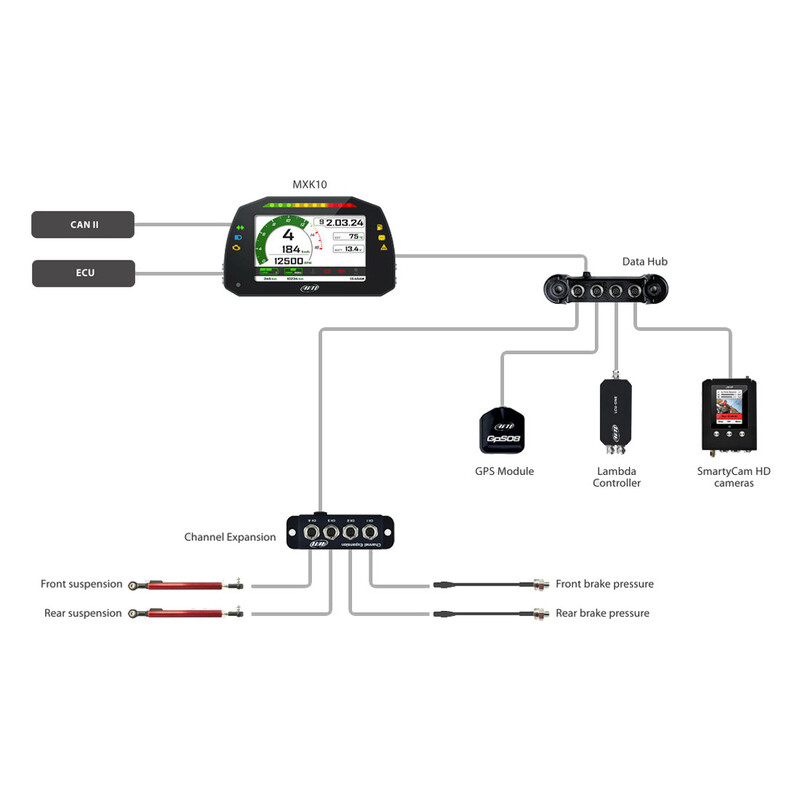

Additional devices can be connected to the MXK10 to acquire extra data or increase the number of features offered: Channel Expansion, Lambda Controller, SmartyCam HD or GP HD camera...

Technical specifications:

• Display: 5" TFT
• Resolution: 800 x 480 pixels
• Status information LEDs: 6
• Shift lights LEDs: 10
• CAN connections: 2
• ECU connection: Yes
• External modules: GPS Module, Channel Expansion, Lambda Controller, SmartyCam HD
• Wi-Fi connection: Yes
• Internal memory: 4 GB
• Body: Anodized aluminum

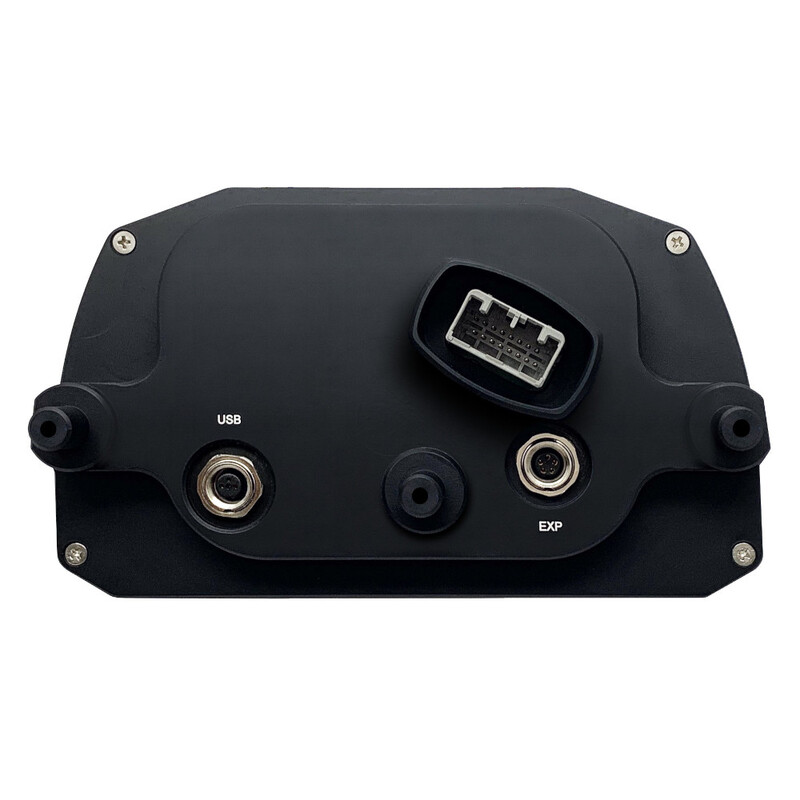

• Connectors: 1 JAE connector + 2 Binder connectors
• Power consumption: 400 mA
• Dimensions: 166 x 97 x 23 mm
• Weight: 530 g
• Waterproof: IP65

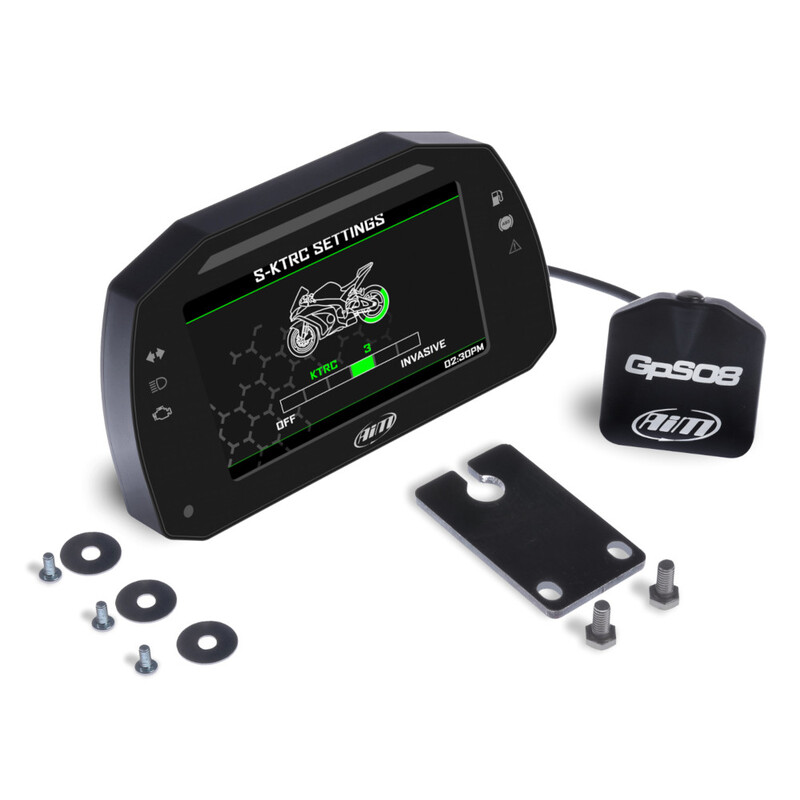

Included in the box:

• MXK10-GEN 4/5 Logger
• Screws and washers
• GPS Module "Roof Version" with 50 cm cable
• Anodized plate fixing kit
• Race Studio 3 software
