AiM Mirror & Reversing Camera for MX Series Dashes
AiM Mirror & Reversing Camera
- Turns your digital dashboard into a rearview mirror or reversing camera
- Compatible with MX Series displays and data loggers
- Ideal for vehicles with limited view
- Sold alone or with cables of your choice
AiM Mirror & Reversing Camera Specifications

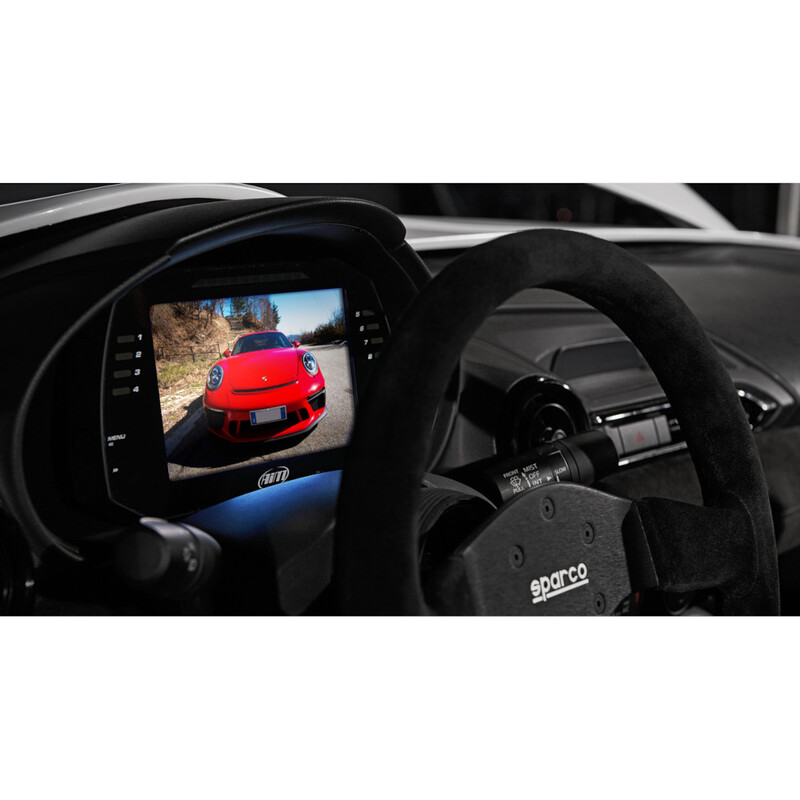

This small camera allows you to turn an AiM display or data logger into a rearview mirror or reversing camera. This product is therefore particularly suitable for sports or race cars with a limited rear view.
The new generation of AiM dashboards can handle up to two cameras which show the driver what happens behind him with different perspectives. The "Park overlay" function can be activated to facilitate parking maneuvers.

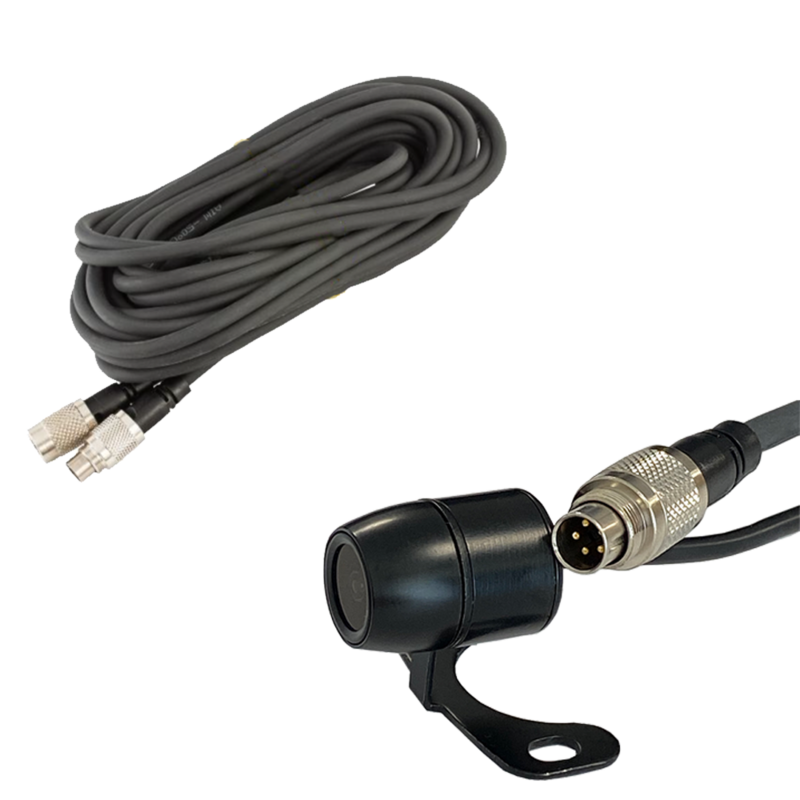

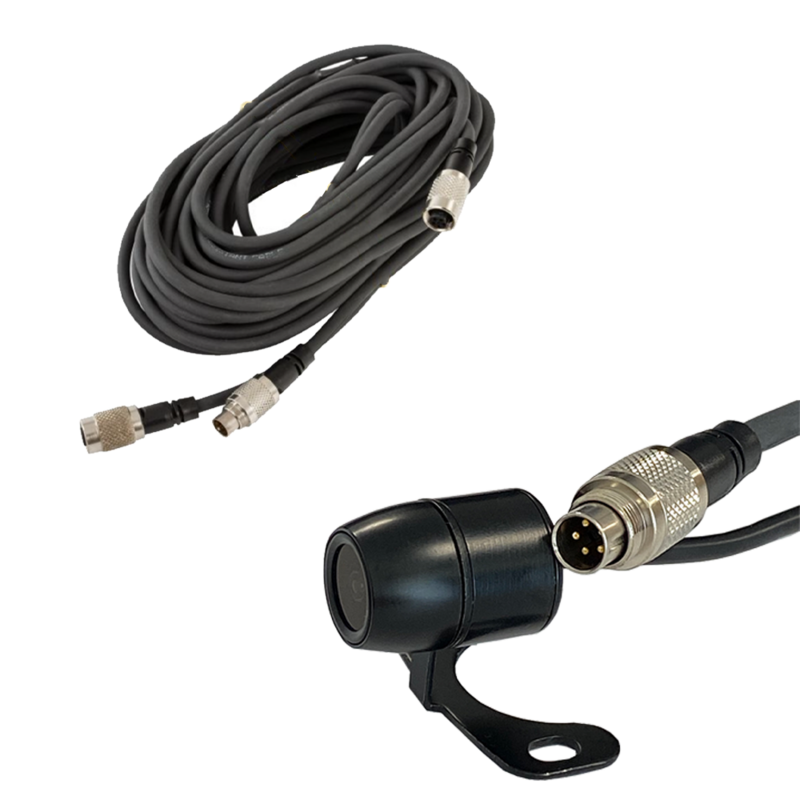

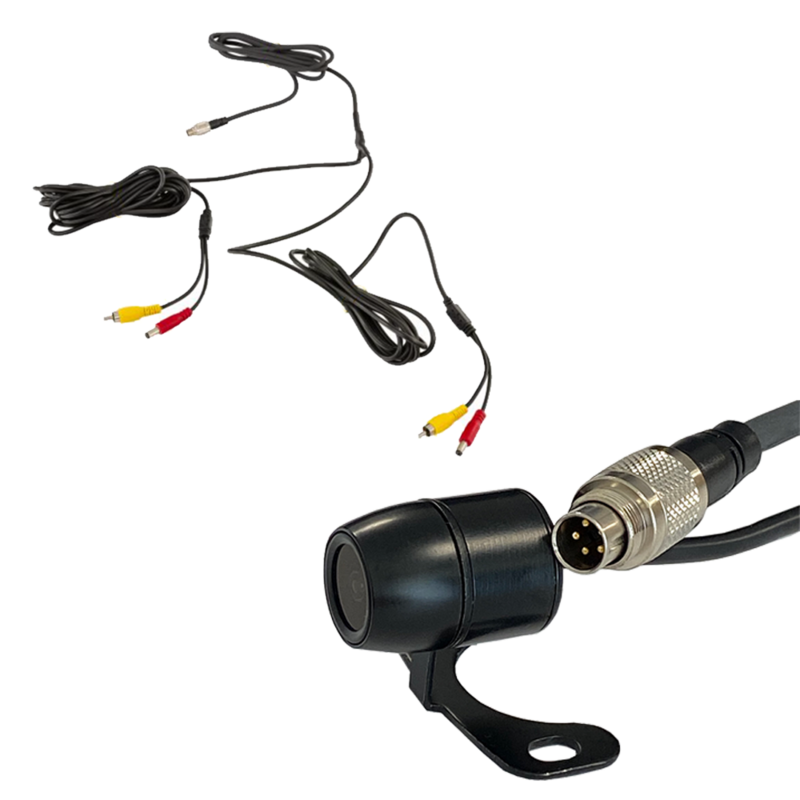

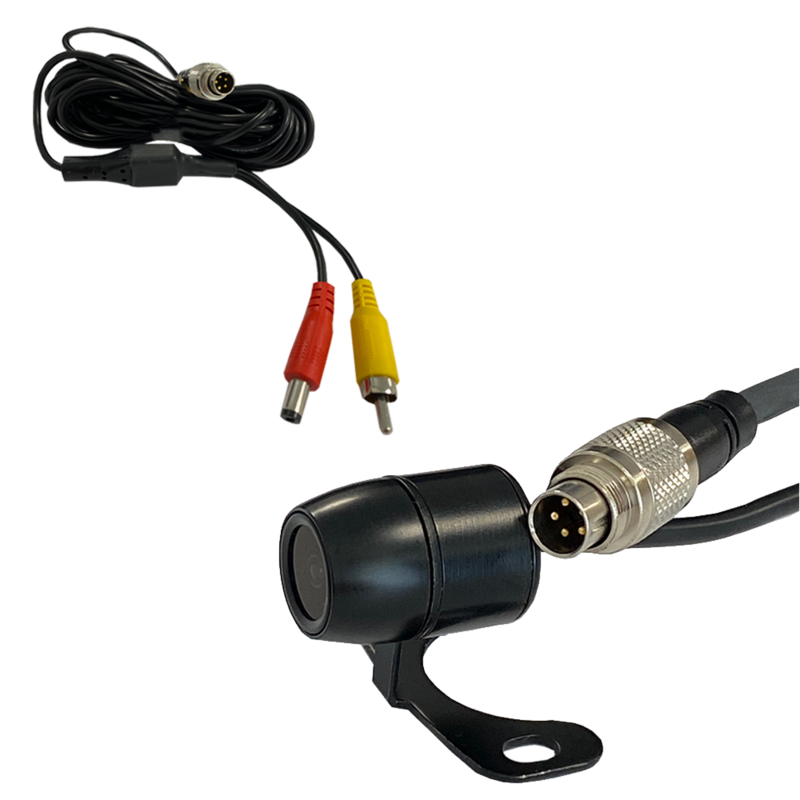

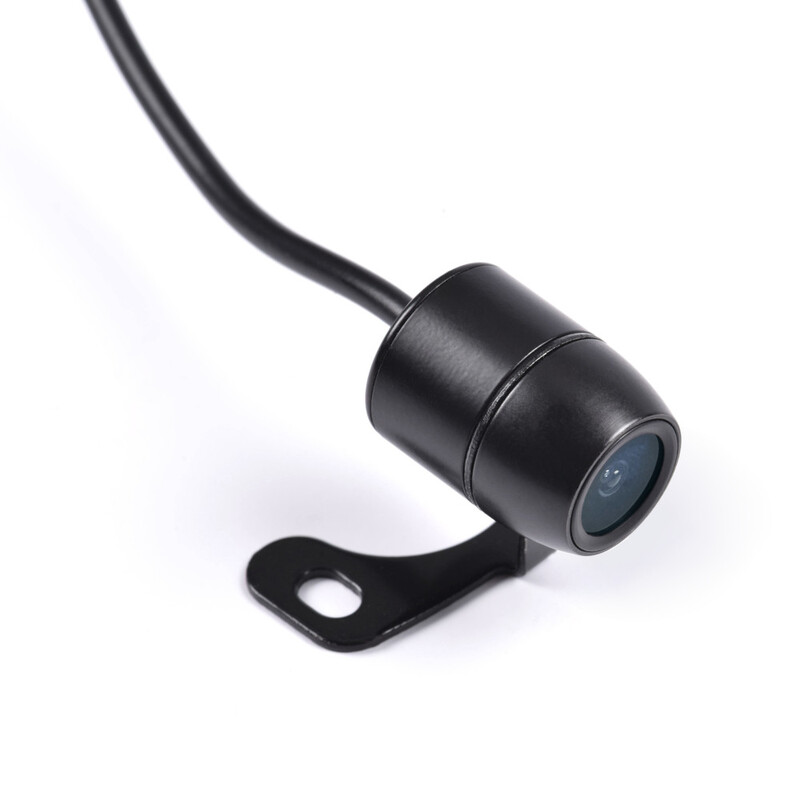

The camera is supplied with a base mount bracket for flat surfaces but it is possible to fix it to other types of supports. It comes with a very short lead, but it is usually necessary to use a patch lead (optional) for installation: single/double 6 meters to connect one or two AiM cameras, single/double RCA 5 meters for one or two cameras of other brands with RCA connection.

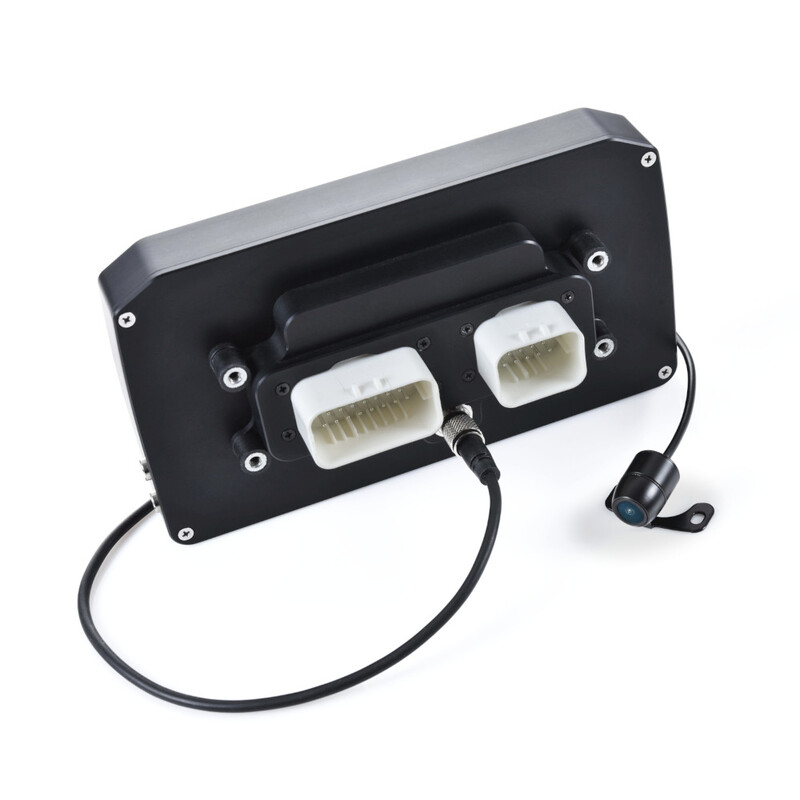

The camera connects to the back of your AiM device, to the rearview camera input, and is compatible with the following brand products: MXS 1.2, MXP, MXG 1.2, MXS 1.2 Strada, MXP Strada, MXG 1.2 Strada, PDM32.
Please note that images shown by the rear camera are not recorded.
Technical specifications:
- Optical format: 1/4 inch color CMOS
- TV system: NTSC
- H-FOV: 170°
- Pixel array: 648 (H) x 488 (V)
- Frame rate: 60 fps
- Temperature: from -30°C to 80°C
