AiM Data Hub
- CAN connection multiplier
- Compatible with the brand's loggers with 5-pin 712 female Binder
- Transmits all information with a single cable
- Connect multiple Data Hubs to build a network
- Choice of 4 or 2 way hub
Ask a question about this productAiM Data Hub Specifications
The AiM Data Hub is a connection multiplier that provides up to 4 additional CAN channels and works as an interface between the brand's data loggers and their peripheral equipment (e.g. GPS Module, Lambda Controller, TC Hub, SmartyCam HD/GP HD...).
Acquiring all the data you need to evaluate your vehicle's performance involves connecting many accessories to your data logger. This requires a lot of cables, but the Data Hub allows you to transmit all the information to your logger with a single cable for a cleaner and simpler installation.
Two versions of Data Hub are available:

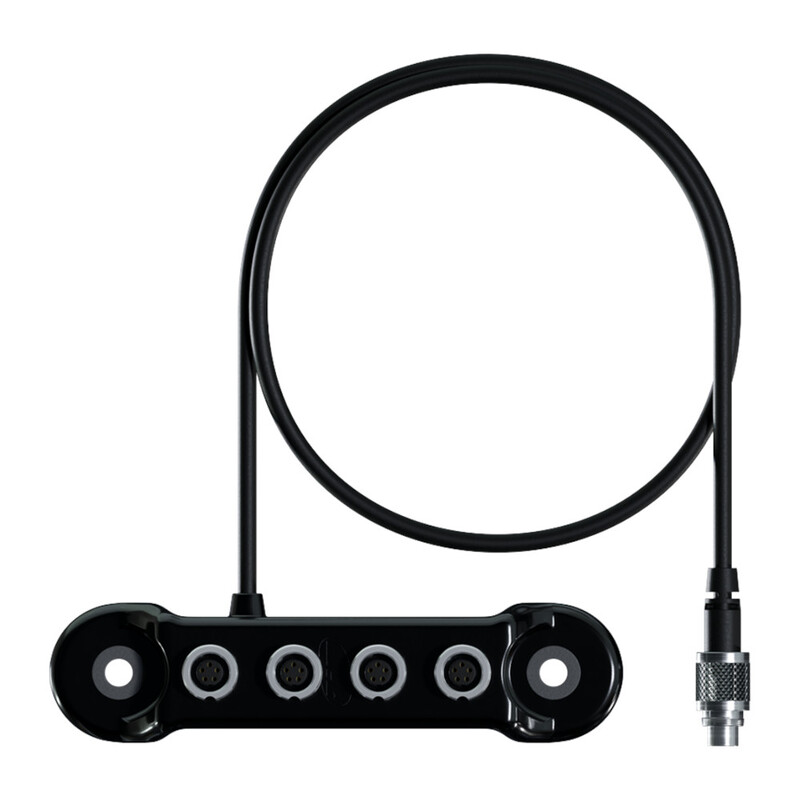

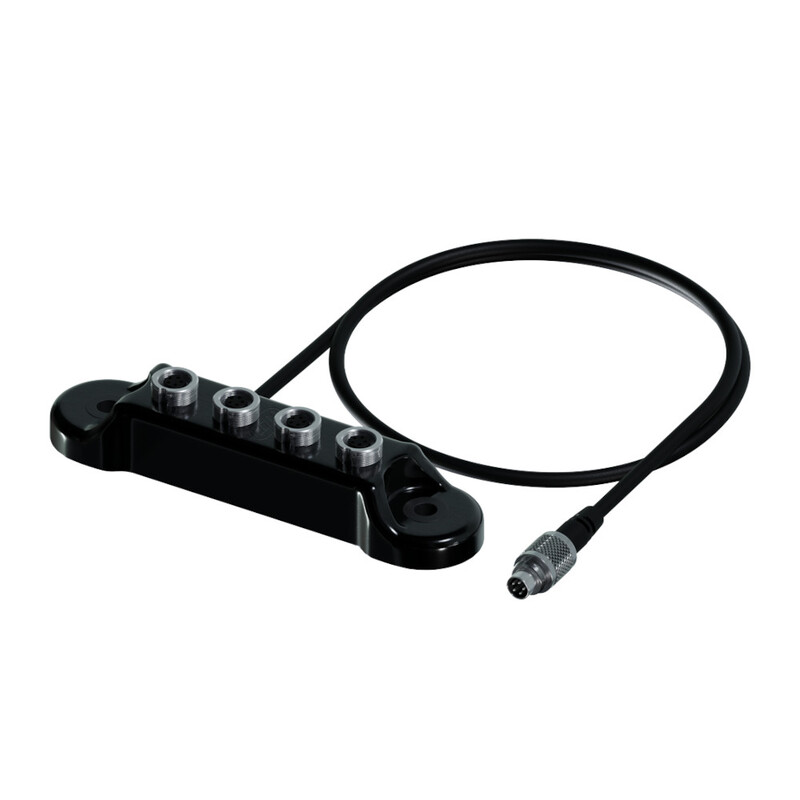

- 4-way Data Hub: perfect for MX Series dash displays and loggers, with 40 or 150 cm cable

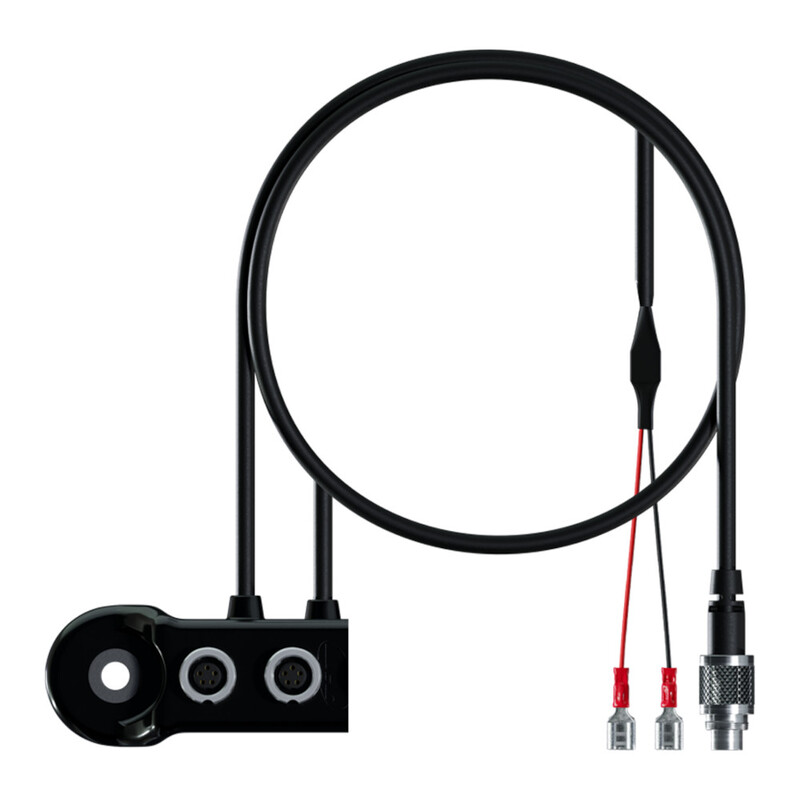

- 2-way Data Hub: perfect for MyChron5 logger, with 40 cm CAN cable and 165 cm external power lead
Multiple Data Hubs can be connected in sequence to increase the number of supported peripherals. Each version has an IP65 waterproof rating.
Characteristics
AiM is the world leader in motorsport data acquisition. The company offers products that combine the functions of traditional tachometers, temperature and pressure gauges, and stopwatches in compact, high-performance, and easy-to-use instruments. On-board cameras, instrumented steering wheels, digital displays, recorders, GPS chronos and sensors are among the brand's essentials.
