AEM "Tru-BoostX" Gauge Type Boost Controller (80 psi)

AEM Tru-BoostX Gauge Type Controller

Always listening to its audience, AEM have produced a combined electronic boost controller and a turbo pressure gauge. In a single product you have an easy to use and completely autonomous boost controller. Configuration is done very simply, using two buttons.

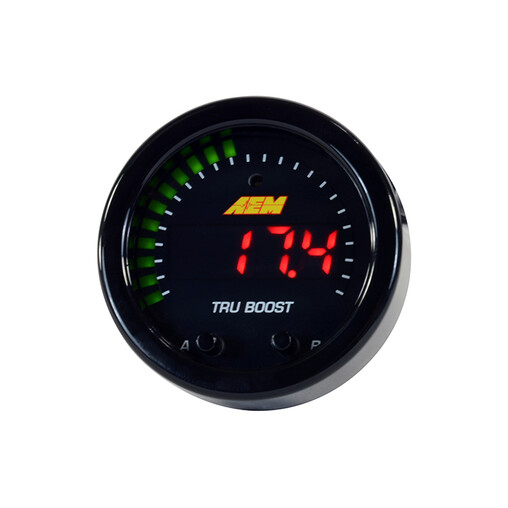

The controller comes with a black bezel and a black faceplate, has a diameter of 52 and features coloured LEDs that light up progressively with pressure. This controller supports turbo boost pressures up to 4.5 bar, which means 5.5 bar (80 psi) absolute pressure.

AEM’s boost control solenoid is included with the Tru-BoostX controller gauge. It is specifically manufactured for automotive boost applications and will not corrode and stick from exposure to rich fuel mixtures or oil vapor. It is pressure tested to 100 psi and includes barbed fittings and -4 AN fittings to eliminate any chance of leaks.

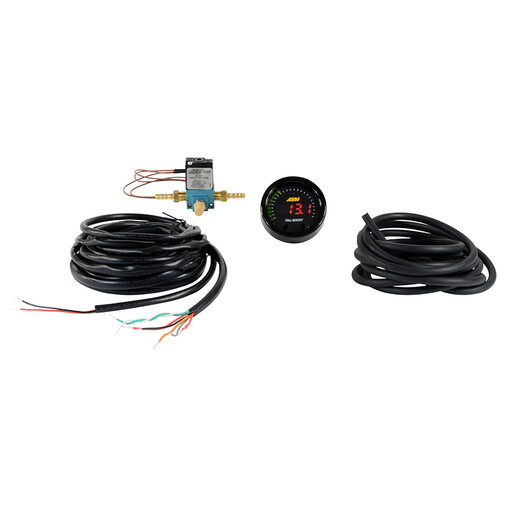

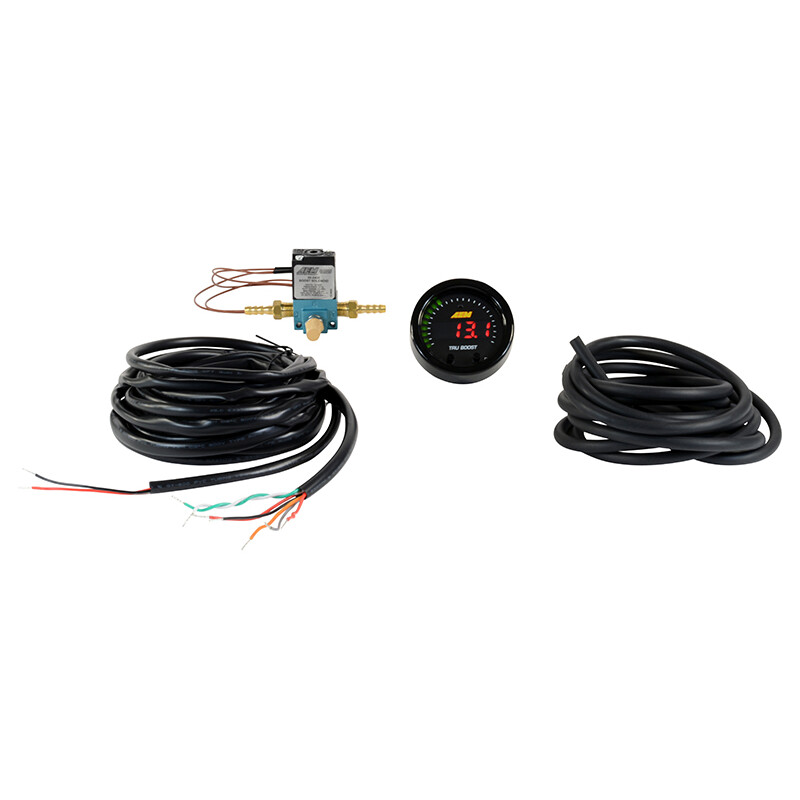

Features and kit contents

• No external interface required for programming!
• Two user selectable boost settings with peak boost memory
• Scramble boost setting allows user to momentarily change boost levels
• User configurable gauge includes 24 scalable LEDs
• One (1) low-side output included for warning lights
• 52mm gauge diameter
• Part no. 30-0352
