AEM High Volume Fuel Rail for Mitsubishi Lancer Evo 8

Dispatched under 20 to 29 days, as of Monday, January 1, 2024
This item is made in the United States !
This item is made in the United States !

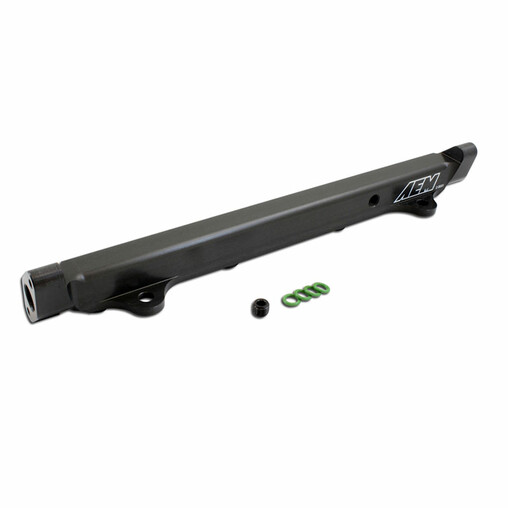

AEM Fuel Rail

  • AEM forged aluminum injection rail
  • Anodized black finish
  • Internal diameter : 12 mm (1/2")
  • Ideal for up to 1000 hp
  • 9/16"x18 input and output (Dash 6)
  • Additional 1/8" NPT port
  • Plug & play assembly for Mitsubishi Lancer Evolution 8, engine codes : 4G63
  • Made in the USA
  • Fitting accessories supplied
  • AEM part no. : 25-131BK

AEM Fuel Rail Specifications

With their internal diameter of 12 mm, the AEM injection rails are particularly suitable for heavy tuning. They are equipped with a 1/8" NPT port, allowing the installation of a fuel pressure gauge (or an additional injection, like NOS).

Made in the United States, the AEM injection rails are made entirely of forged aluminum and are installed in place of the existing one thanks to the fitting accessories supplied. With their 9/16"x18 threaded inlet and outlet, they can also be used with a custom Dash 6 fuel circuit.

Their large diameter also guarantees a large fuel capacity, making it possible to dampen the pulsations and back pressure generated by large injectors. Each rail is delivered with its instructions for use, its O-rings for the injectors, and all the mounting accessories (screws, brackets, etc.).


Car Make Mitsubishi
Engine Code 4G63, 4G63T
Manufacturer AEM
Manufacturer SKU AEM-25-131BK | 8481.90.9060
