AEM Fluid Pressure Stainless Sensor Kit - 10 bar
Dispatched Monday, May 5, 2025

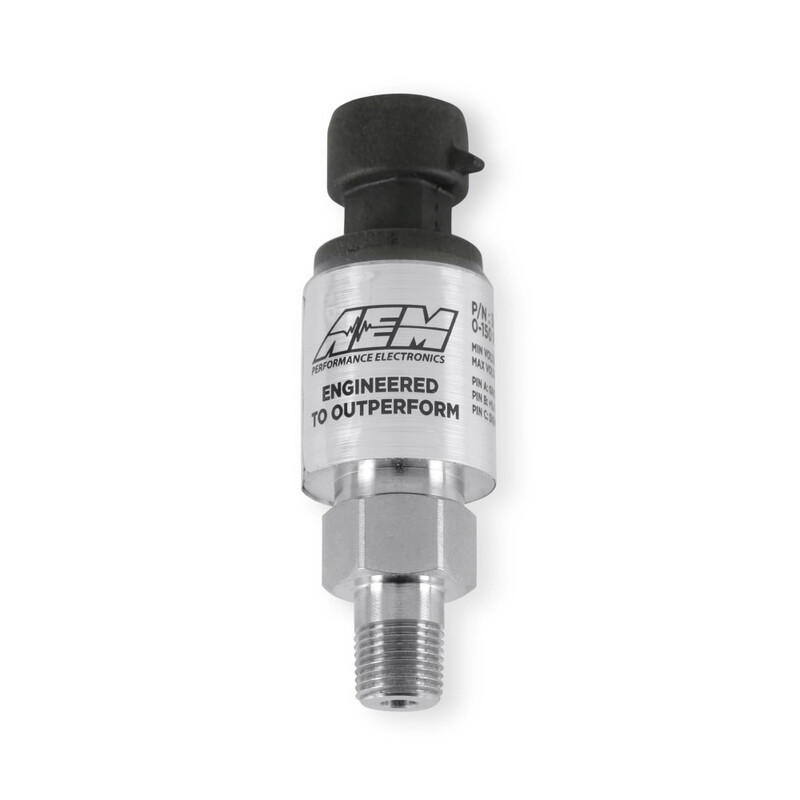

AEM Fluid Pressure Sensor
- Fluid pressure sensor (10 bars)
- Ideal for monitoring liquids such as oil or fuel
- Material : high quality stainless steel
- Ultra-precise and quick readings
- Output signal : 0.5 to 4.5V linear
- Operating temperature range : -40 to + 105° C
- Thread : 1/8" NPT
- Supplied with a Dash 4 adapter
- AEM part no. : 30-2130-150
Ask a question about this productAEM Fluid Pressure Stainless Sensor Kit - 10 Bar/150 PSI Specifications
This fluid pressure sensor withstands a maximum pressure of 10 bar, or 150 psi. It can be used to measure the pressure of liquids such as oil or fuel with great accuracy.

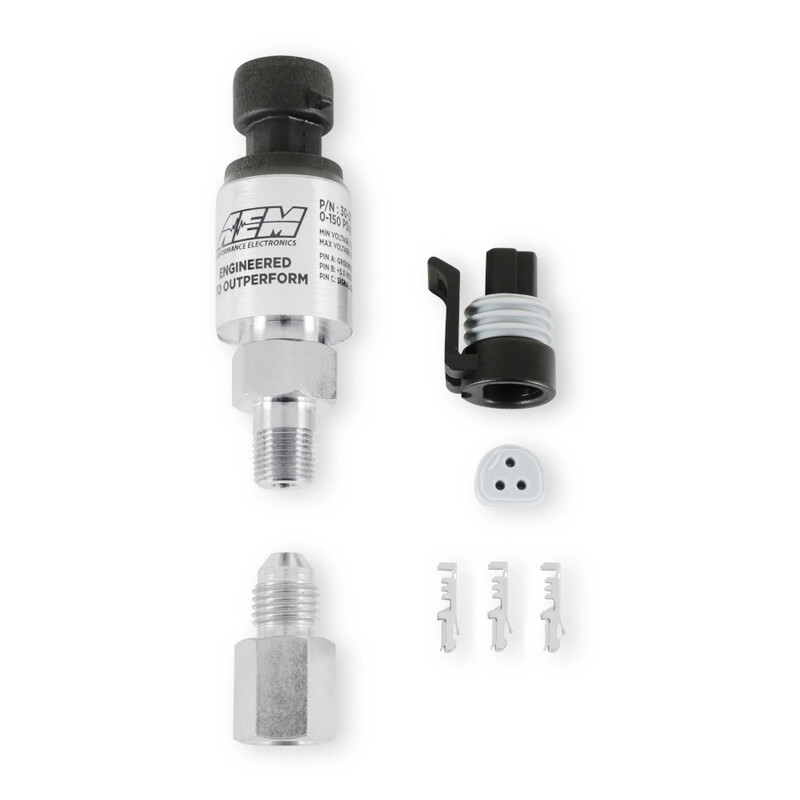

This type of high-quality stainless steel sensor is recommended when you need very fine pressure information (for example, a MAP sensor providing crucial data to the ECU that can be used to calibrate it). The sensor is waterproof and has a 1/8" NPT thread (Dash 4 adaptor supplied, see photo).
Technical Specifications
- Accuracy : +/- 0.5%
- Minimum / maximum operating temperature : -40°C to + 105°C
- Response time : <1 ms
- Material : 304L and 316L stainless steel
- Sampling : 100 to 2000 Hz, 20g sinusoidal, 3 axes
- Weight : <85 g
- Supply current : <6mA at 5V
- Output voltage : 0.5 to 4.5V linear

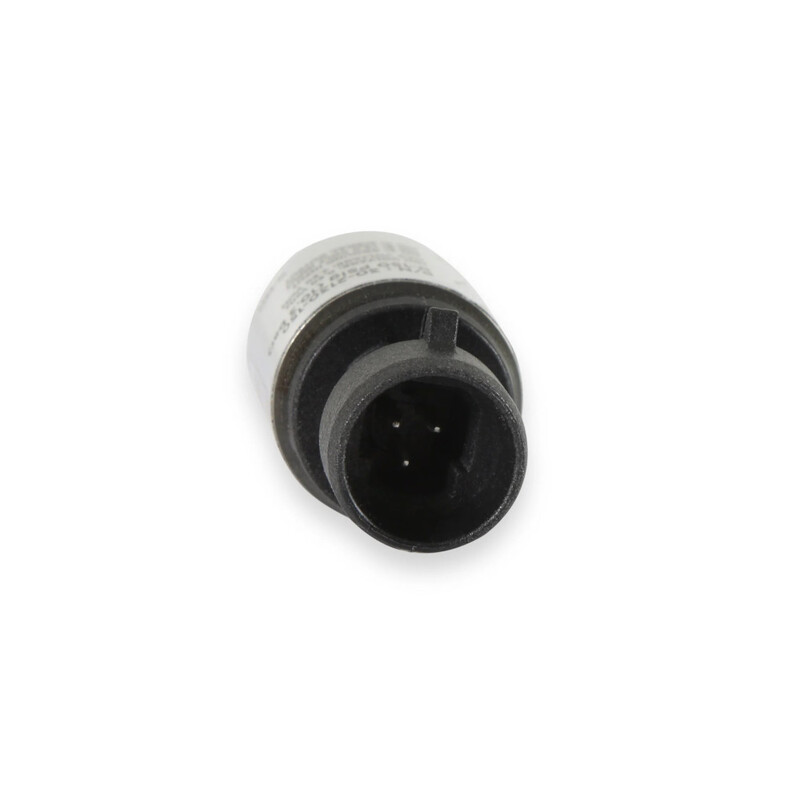

- Integral weatherproof connector, includes mating connector & pins
Characteristics
| Manufacturer | AEM |
|---|
Behind the first "plug & play", programmable ECU in the 90's, the American company AEM is reknown for its high performance electronical parts. From adjustable ECUs to all sorts of gauges, wideband kits, water and methanol injection kits, dataloggers and fuel pumps, AEM offer the best solutions for the most highly tuned vehicles.
