AEM Fluid Pressure Brass Sensor Kit - 7 bar
Dispatched Monday, May 5, 2025
AEM Fluid Pressure Sensor
- Fluid pressure sensor (7 bars)
- Ideal for monitoring liquids such as oil or fuel
- Material : brass
- Output signal : 0.5 to 4.5V linear
- Operating temperature range : -40 to + 105° C
- Thread : 1/8" NPT
- AEM part no. : 30-2131-100
Ask a question about this productAEM Fluid Pressure Brass Sensor Kit - 7 Bar/100 PSI Specifications
This fluid pressure sensor withstands a maximum pressure of 7 bar, or 100 psi. It can be used to measure the pressure of liquids such as oil or fuel with great accuracy.

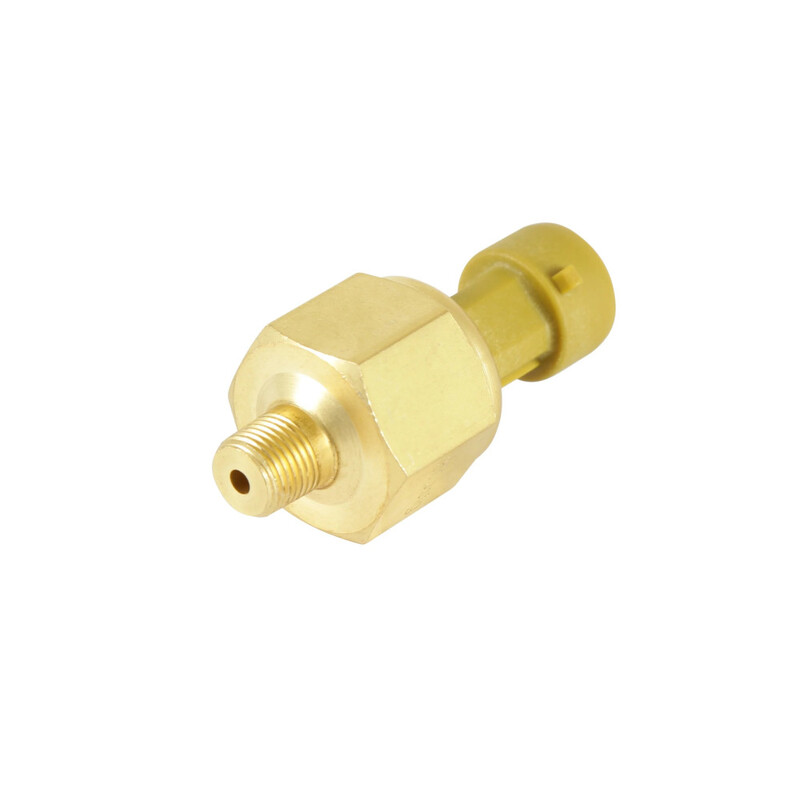

This type of brass sensor is recommended when you need a good reference on the observed pressure (for example, a sensor used for a boost pressure gauge providing information for indicative purposes, not for ECU calibration). The sensor is waterproof and has a 1/8" NPT thread.
Technical Specifications
- Accuracy : +/- 3%
- Minimum / maximum operating temperature : -40°C to + 105°C
- Response time : <1 ms
- Material : brass
- Sampling : 100 to 2000 Hz, 20g sinusoidal, 3 axes
- Weight : <85 g
- Output voltage : 0.5 to 4.5V linear

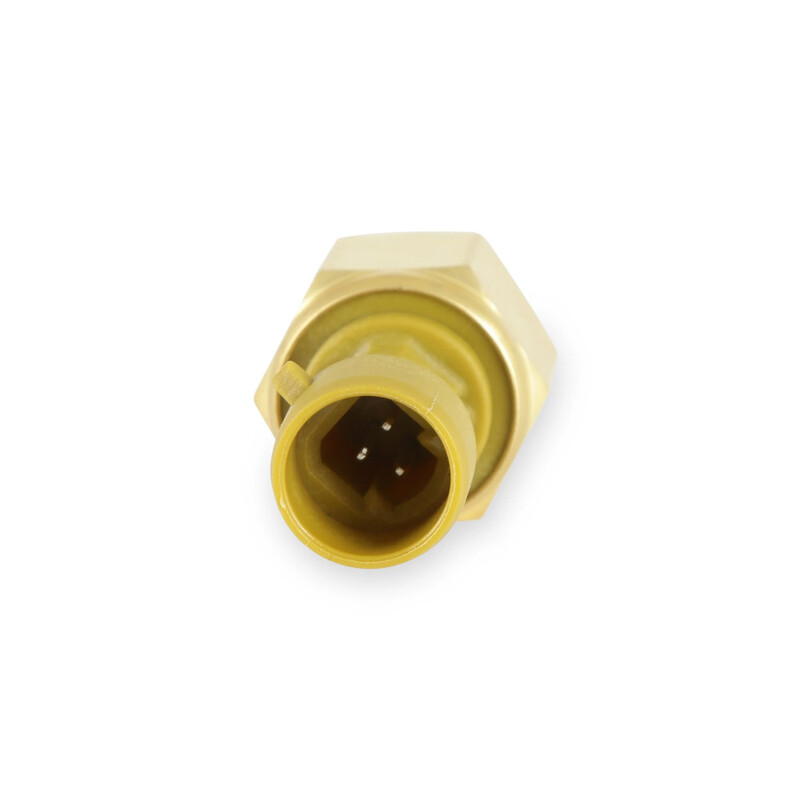

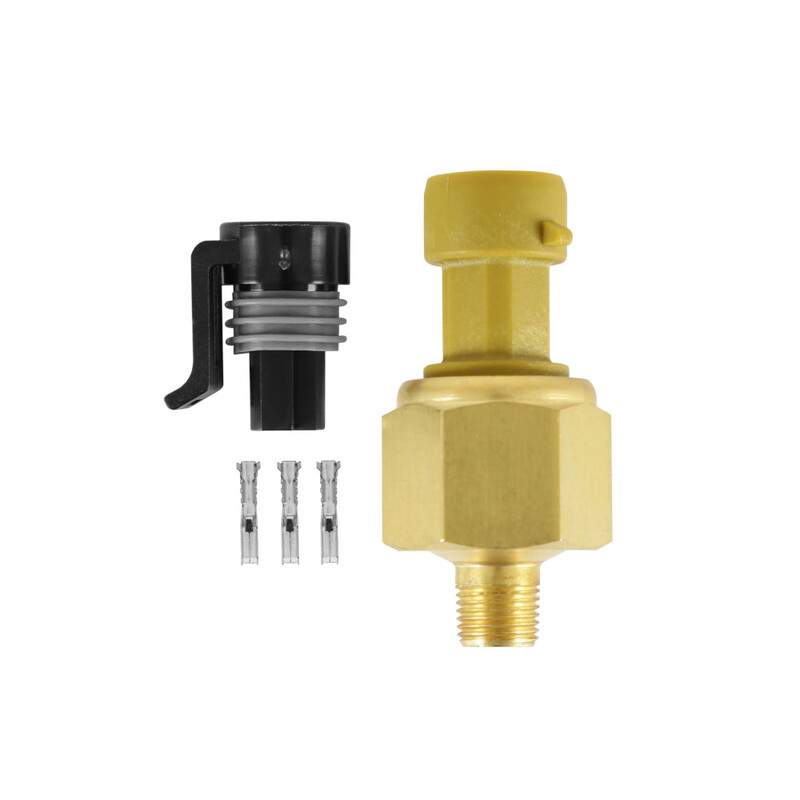

- Integral weatherproof connector, includes mating connector & pins
Characteristics
| Manufacturer | AEM |
|---|
Behind the first "plug & play", programmable ECU in the 90's, the American company AEM is reknown for its high performance electronical parts. From adjustable ECUs to all sorts of gauges, wideband kits, water and methanol injection kits, dataloggers and fuel pumps, AEM offer the best solutions for the most highly tuned vehicles.
