ACL Reinforced Thrust Bearings - Toyota 2A, 3A, 4A, 5A, 6A, 7A
ACL Uprated Thrust Washers
- ACL trimetal thrust bearings
- To suit high RPM/load applications
- Offer reduced friction and operating temperatures
- Increased oil supply and overall lubrication
- To fit : Toyota 2A, 3A, 4A, 5A, 6A, 7A - full application list below
- Made in Australia
Ask a question about this productEngineering Bulletin
ACL provides an official guide for clearance control and optimization, and guidelines for bearing size selection : download it here.

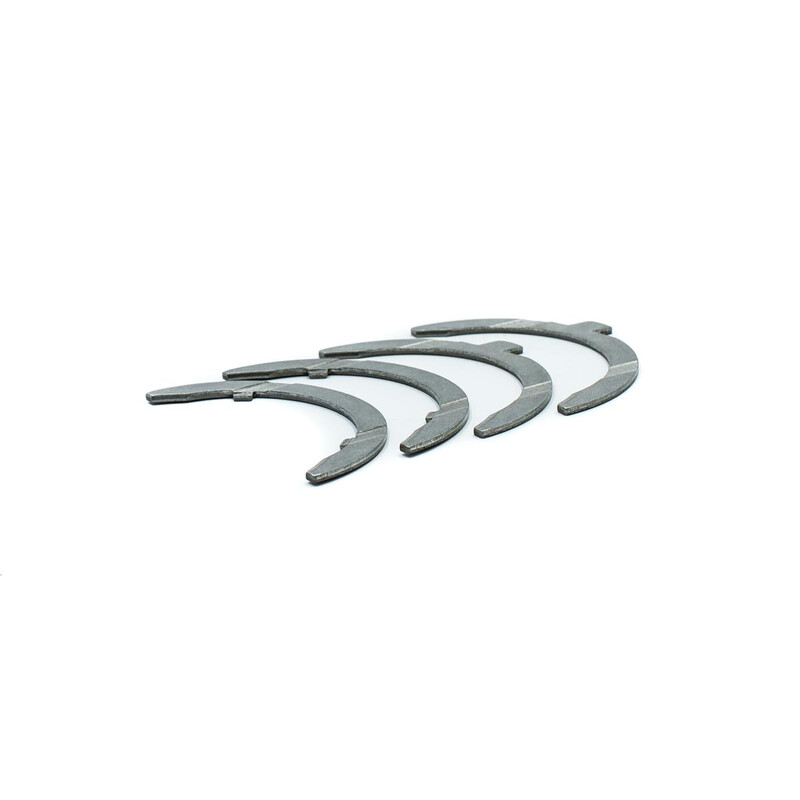

ACL Reinforced Thrust Bearings
Designed to withstand high RPM, temperatures and load, these high strength bearings are manufactured by ACL from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
Available on selected applications, Calico's CT-1 coating provides intermittent dry lubrication, unaffected by dust or dirt, which helps to reduce friction and abrasive wear. It is specially designed to withstand the extreme conditions of modern high-performance engines.
These bearings, also called thrust washers, are sold in standard sizes and, depending on the part number, in repair sizes.
Application List & Engine Codes
- Toyota/Tercel 1.3/SOHC/OHC 8v/2A
- Toyota/Tercel 1.5 4WD/SOHC/OHC 8v/3A-C
- Toyota/Corolla Coupe 1.6 16v AE86/DOHC 16v/4A-GEC
- Toyota/Sprinter Coupe 1.6 Gti/DOHC 16v/4A-GEC
- Toyota/Celica Hatchback 1.6 GT/DOHC 16v/4A-GELC
- Toyota/MR2 I 1.6 16v/DOHC 16v/4A-GELC
- Toyota/Carina IV 1.6/SOHC/OHC 8v/4A-LC
- Toyota/Corolla 1.6/SOHC/OHC 8v/4A-LC
- Toyota/Corolla FX Compact 1.6/SOHC/OHC 8v/4A-LC
- Toyota/Corolla Liftback 1.6/SOHC/OHC 8v/4A-LC
- Toyota/Carina V 1.6/DOHC 16v/4A-F
- Toyota/Carina V Estate 1.6/DOHC 16v/4A-F
- Toyota/Carina V Saloon 1.6/DOHC 16v/4A-F
- Toyota/Corolla 1.6/DOHC 16v/4A-F
- Toyota/Corolla Compact 1.6/DOHC 16v/4A-F
- Toyota/Corolla Liftback 1.6/DOHC 16v/4A-F
- Toyota/Corolla Station Wagon 1.6/DOHC 16v/4A-F
- Toyota/Avensis 1.8i/DOHC 16v/7A-FE
- Toyota/Avensis Estate 1.8i/DOHC 16v/7A-FE
- Toyota/Avensis Liftback 1.8i/DOHC 16v/7A-FE
- Toyota/Carina E VI 1.8/DOHC 16v/7A-FE
- Toyota/Carina E VI Saloon 1.8i 16v/DOHC 16v/7A-FE
- Toyota/Carina E VI Sportswagon 1.8i/DOHC 16v/7A-FE
- Toyota/Celica Coupe 1.8 16v/DOHC 16v/7A-FE
- Toyota/Corolla 1.8/DOHC 16v/7A-FE
- Toyota/Avensis 1.6i/DOHC 16v/4A-FE
- Toyota/Avensis Estate 1.6i/DOHC 16v/4A-FE
- Toyota/Avensis Liftback 1.6i/DOHC 16v/4A-FE
- Toyota/Carina E VI 1.6/DOHC 16v/4A-FE
- Toyota/Carina E VI 1.6 GLI/DOHC 16v/4A-FE
- Toyota/Carina E VI Saloon 1.6/DOHC 16v/4A-FE
- Toyota/Carina E VI Sportswagon 1.6i/DOHC 16v/4A-FE
- Toyota/Carina E VI Sportswagon 1.6 GLI/DOHC 16v/4A-FE
- Toyota/Carina V 1.6/DOHC 16v/4A-FE
- Toyota/Carina V Estate 1.6/DOHC 16v/4A-FE
- Toyota/Carina V Saloon 1.6/DOHC 16v/4A-FE
- Toyota/Celica Coupe 1.6/DOHC 16v/4A-FE
- Toyota/Corolla 1.6/DOHC 16v/4A-FE
- Toyota/Corolla 1.6 Si/DOHC 16v/4A-FE
- Toyota/Corolla 1.6 Aut./DOHC 16v/4A-FE
- Toyota/Corolla 1.6i/DOHC 16v/4A-FE
- Toyota/Corolla 1.6i 4WD/DOHC 16v/4A-FE
- Toyota/Corolla Compact 1.6i/DOHC 16v/4A-FE
- Toyota/Corolla Compact 1.6 Si/DOHC 16v/4A-FE
- Toyota/Corolla Estate 1.6 Si/DOHC 16v/4A-FE
- Toyota/Corolla Estate 1.6/DOHC 16v/4A-FE
- Toyota/Corolla Estate 1.6 Aut./DOHC 16v/4A-FE
- Toyota/Corolla Liftback 1.6 GLI/DOHC 16v/4A-FE
- Toyota/Corolla Liftback 1.6/DOHC 16v/4A-FE
- Toyota/Corolla Liftback 1.6 Aut./DOHC 16v/4A-FE
- Toyota/Corolla Station Wagon 1.6 4WD/DOHC 16v/4A-FE
- Toyota/Corolla Station Wagon 1.6 XLI/DOHC 16v/4A-FE
- Toyota/Corolla Saloon 1.6/DOHC 16v/4A-FE
- Toyota/Celica Coupe 1.6/DOHC 16v/4A-GE
- Toyota/Corolla 1.6/DOHC 16v/4A-GE
- Toyota/Corolla Compact 1.6 Gti/DOHC 16v/4A-GE
- Toyota/Corolla Coupe 1.6/DOHC 16v/4A-GE
- Toyota/Corolla Coupe 1.6 GT/DOHC 16v/4A-GE
- Toyota/Corolla Liftback 1.6 GTI/DOHC 16v/4A-GE
Characteristics
| Car Make | Toyota |
|---|---|
| Bearing Type | Thrust Bearings |
| Engine Code | 2A, 3A, 4A, 4E-FE/F, 4A-FE, 4A-GE, 7A-FE |
Designed to withstand high RPM, temperatures and load, these high strength bearings are manufactured by ACL from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
