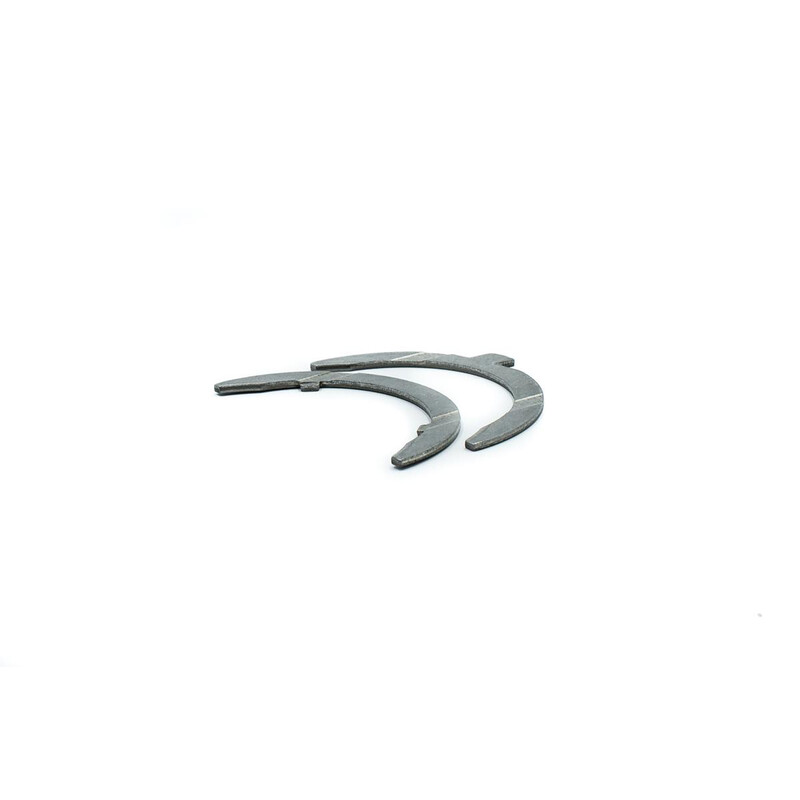

ACL Reinforced Thrust Bearings - Honda 4 Cylinder
ACL Uprated Thrust Washers
- ACL trimetal thrust bearings
- To suit high RPM/load applications
- Offer reduced friction and operating temperatures
- Increased oil supply and overall lubrication
- To fit : Honda 4 Cylinder - full application list below
- Made in Australia
Ask a question about this productEngineering Bulletin
ACL provides an official guide for clearance control and optimization, and guidelines for bearing size selection : download it here.
ACL Reinforced Thrust Bearings
Designed to withstand high RPM, temperatures and load, these high strength bearings are manufactured by ACL from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
Available on selected applications, Calico's CT-1 coating provides intermittent dry lubrication, unaffected by dust or dirt, which helps to reduce friction and abrasive wear. It is specially designed to withstand the extreme conditions of modern high-performance engines.
These bearings, also called thrust washers, are sold in standard sizes and, depending on the part number, in repair sizes.
Application List & Engine Codes
- Honda/ACCORD VI/SOHC/OHC 16v/D16B6
- Honda/TORNEO/SOHC/OHC 16v/D16B6
- Honda/CIVIC IV/DOHC 16v/B16A1
- Honda/CRX II/DOHC 16v/B16A1
- Honda/CIVIC V/SOHC/OHC 16v/B16A2
- Honda/CIVIC VI/SOHC/OHC 16v/B16A2
- Honda/CRX III/SOHC/OHC 16v/B16A2
- Honda/CRX III/SOHC/OHC 16v/B16A3
- Acura/INTEGRA/DOHC 16v/B17A1
- Acura/INTEGRA/DOHC 16v/B18A1
- Honda/INTEGRA/DOHC 16v/B18A1
- Acura/INTEGRA/DOHC 16v/B18B1
- Honda/INTEGRA/DOHC 16v/B18B1
- Honda/INTEGRA/DOHC 16v/B18B2
- Honda/INTEGRA/DOHC 16v/B18C1
- Honda/INTEGRA/DOHC 16v/B18C2
- Acura/INTEGRA/DOHC 16v/B18C5
- Acura/INTEGRA/DOHC 16v/B18C7
- Honda/PRELUDE III/DOHC 16v/B20A1
- Honda/ACCORD III/DOHC 16v/B20A2
- Honda/PRELUDE III/SOHC/OHC 12v/B20A3
- Honda/PRELUDE III/SOHC/OHC 12v/B20A4
- Honda/PRELUDE III/DOHC 16v/B20A5
- Honda/PRELUDE III/DOHC 16v/B20A6
- Honda/PRELUDE III/DOHC 16v/B20A7
- Honda/ACCORD III/DOHC 16v/B20A8
- Honda/CR-V I/DOHC 16v/B20B
- Honda/CR-V I/DOHC 16v/B20Z
- Honda/PRELUDE III/DOHC 16v/B21A1
- Acura/INTEGRA/DOHC 16v/D16A1
- Honda/CIVIC IV/DOHC 16v/D16A1
- Acura/INTEGRA/DOHC 16v/D16A3
- Honda/INTEGRA/DOHC 16v/D16A3
- Honda/CIVIC II/SOHC/OHC 16v/D16A6
- Honda/CIVIC IV/SOHC/OHC 16v/D16A6
- Honda/CRX II/SOHC/OHC 16v/D16A6
- Honda/CIVIC II/SOHC/OHC 16v/D16A7
- Honda/CIVIC IV/SOHC/OHC 16v/D16A7
- Honda/CIVIC V/SOHC/OHC 16v/D16A7
- Acura/INTEGRA/DOHC 16v/D16A8
- Honda/CIVIC V/DOHC 16v/D16A8
- Honda/CONCERTO/DOHC 16v/D16A8
- Honda/CRX II/DOHC 16v/D16A8
- Honda/CIVIC IV/DOHC 16v/D16A9
- Honda/CIVIC V/DOHC 16v/D16A9
- Honda/CONCERTO/DOHC 16v/D16A9
- Honda/CIVIC VI/SOHC/OHC 16v/D16B2
- Honda/HR-V/SOHC/OHC 16v/D16W1
- Honda/CIVIC V/SOHC/OHC 16v/D16Y1
- Honda/CIVIC VI/SOHC/OHC 16v/D16Y4
- Honda/CIVIC VI/SOHC/OHC 16v/D16Y5
- Honda/CIVIC VI/SOHC/OHC 16v/D16Y7
- Honda/CRX III/SOHC/OHC 16v/D16Y7
- Acura/EL/SOHC/OHC 16v/D16Y8
- Honda/CIVIC VI/SOHC/OHC 16v/D16Y8
- Honda/CRX III/SOHC/OHC 16v/D16Y8
- Honda/CIVIC II/SOHC/OHC 16v/D16Z2
- Honda/CIVIC IV/SOHC/OHC 16v/D16Z2
- Honda/CIVIC V/SOHC/OHC 16v/D16Z2
- Honda/CONCERTO/SOHC/OHC 16v/D16Z2
- Honda/DOMANI/SOHC/OHC 16v/D16Z2
- Honda/CIVIC IV/DOHC 16v/D16Z5
- Honda/CRX II/DOHC 16v/D16Z5
- Honda/CIVIC V/SOHC/OHC 16v/D16Z6
- Honda/CRX III/SOHC/OHC 16v/D16Z6
- Honda/CIVIC VII/SOHC/OHC 16v/D17A1
- Acura/EL/SOHC/OHC 16v/D17A2
- Honda/CIVIC VII/SOHC/OHC 16v/D17A2
- Honda/FR-V/SOHC/OHC 16v/D17A2
- Honda/JAZZ II/SOHC/OHC 16v/D17A2
- Honda/STREAM/SOHC/OHC 16v/D17A2
- Honda/CIVIC VI/SOHC/OHC 16v/D17A6
- Honda/CIVIC VII/SOHC/OHC 16v/D17A6
- Honda/CIVIC VII/SOHC/OHC 16v/D17A7
- Honda/ACCORD V/SOHC/OHC 16v/F23A1
- Honda/ACCORD VI/SOHC/OHC 16v/F23A1
- Honda/ACCORD VI/SOHC/OHC 16v/F23A5
- Honda/ACCORD VI/SOHC/OHC 16v/F23A7
- Honda/ODYSSEY/SOHC/OHC 16v/F23A7
- Honda/SHUTTLE/SOHC/OHC 16v/F23A7
- Honda/ACCORD VI/SOHC/OHC 16v/F23Z4
- Honda/ODYSSEY/SOHC/OHC 16v/F23Z4
- Honda/PRELUDE IV/DOHC 16v/H22A1
- Honda/PRELUDE IV/DOHC 16v/H22A2
- Honda/PRELUDE V/DOHC 16v/H22A2
- Honda/PRELUDE V/DOHC 16v/H22A4
- Honda/PRELUDE V/DOHC 16v/H22A5
- Honda/ACCORD VI/DOHC 16v/H22A7
- Honda/PRELUDE V/DOHC 16v/H22A8
- Honda/PRELUDE V/DOHC 16v/H22Z1
- Acura/RSX/DOHC 16v/K20A2
- Honda/CIVIC VII/DOHC 16v/K20A2
- Honda/INTEGRA/DOHC 16v/K20A2
- Acura/RSX/DOHC 16v/K20A3
- Honda/CIVIC VIII/DOHC 16v/K20A3
- Honda/CIVIC VII/DOHC 16v/K20A3
- Honda/INTEGRA/DOHC 16v/K20A3
- Honda/CIVIC IX/DOHC 16v/K20C1
- Honda/CIVIC X/DOHC 16v/K20C1
- Honda/CIVIC XI/DOHC 16v/K20C1
- Honda/INTEGRA/DOHC 16v/K20Z1
- Honda/ACCORD VII/DOHC 16v/K24A1
- Honda/CR-V II/DOHC 16v/K24A1
- Honda/CR-V III/DOHC 16v/K24A1
- Honda/CR-V IV/DOHC 16v/K24A1
- Honda/ELYSION/DOHC 16v/K24A1
- Honda/ACCORD IX/DOHC 16v/K24A3
- Honda/ACCORD VII/DOHC 16v/K24A3
- Honda/FR-V/DOHC 16v/K24A3
- Honda/ODYSSEY/DOHC 16v/K24A3
- Honda/STEPWGN/DOHC 16v/K24A3
- Honda/ACCORD VII/DOHC 16v/K24A4
- Honda/ELEMENT/DOHC 16v/K24A4
- Honda/ODYSSEY/DOHC 16v/K24A4
- Honda/ACCORD VII/DOHC 16v/K24A8
- Honda/ELEMENT/DOHC 16v/K24A8
- Honda/CR-V III/DOHC 16v/K24Z1
Characteristics
| Car Make | Honda |
|---|---|
| Bearing Type | Thrust Bearings |
| Engine Code | B16A, B17A1, B18A, B18A1, B18B1, B18C, B20A, B20B3, B20B4, B20Z2, B21A, B21A1, D16A, D16A9, D16B, D16W, D16Y, D16Z, D17A, D17Z, F23, H22, H22A, K20, K20A2, K20A3, K20Z1, K24, K24A, ZC |
Designed to withstand high RPM, temperatures and load, these high strength bearings are manufactured by ACL from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
