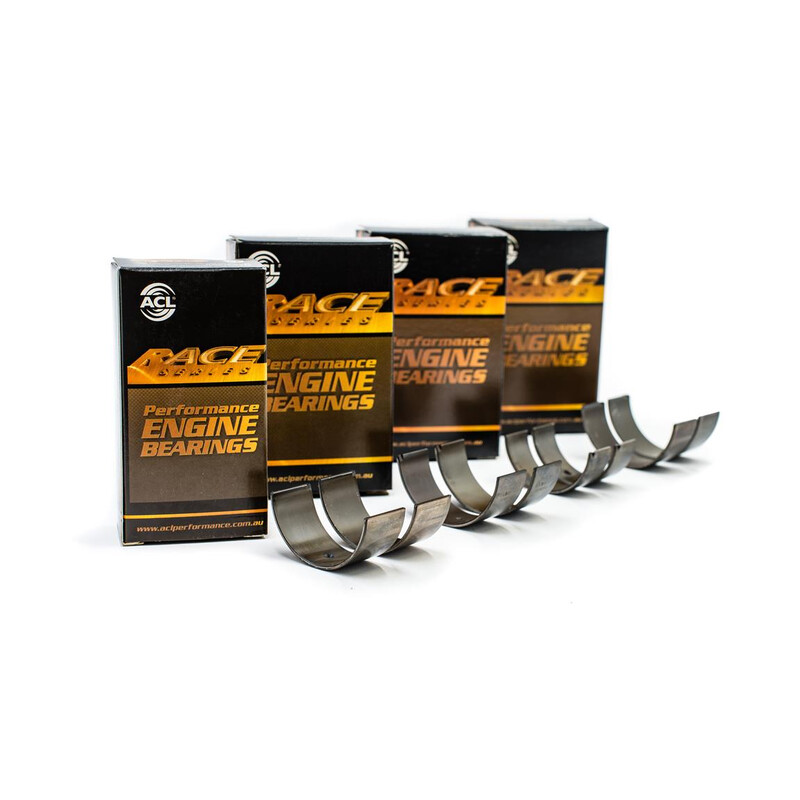

ACL Race Series Reinforced Rod Bearings - Honda 1.5L, 1.6L (D15, D16)
ACL Race Series Rod Bearings
- ACL trimetal rod bearings
- To suit high RPM/load applications
- Offer reduced friction and operating temperatures
- Increased oil supply and overall lubrication
- To fit : Honda 1.5L, 1.6L (D15, D16) - full application list below
- Made in Australia
Ask a question about this productEngineering Bulletin
ACL provides an official guide for clearance control and optimization, and guidelines for bearing size selection : download it here.

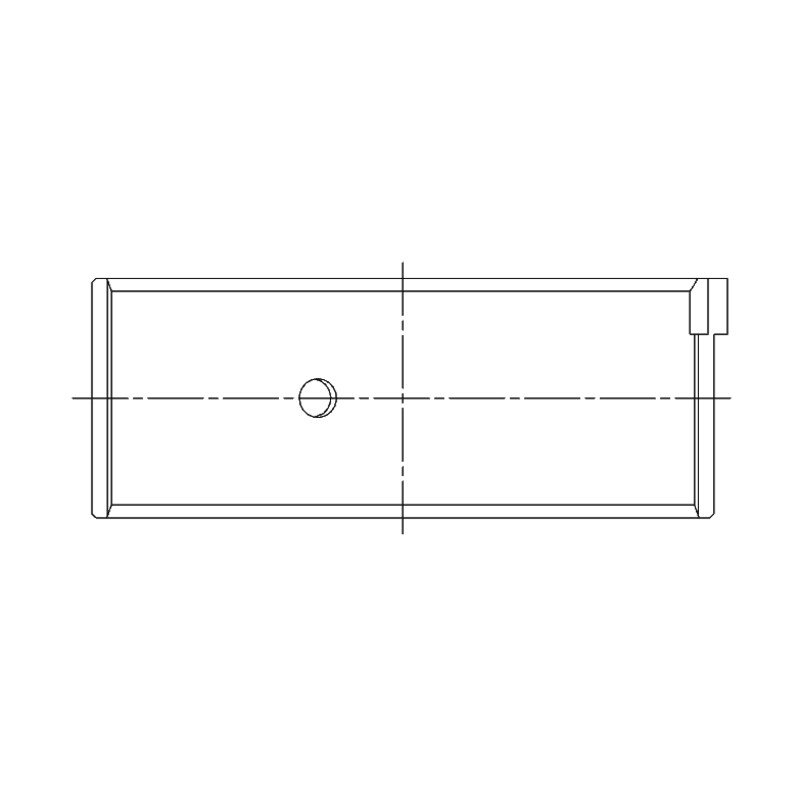

ACL Race Series Reinforced Rod Bearings
Designed to withstand high RPM, temperatures and load, these ACL Race Series bearings are manufactured from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
To help engine builders optimise clearances for their specific applications, ACL provides a range of different bearing sizes for standard crankshaft journal sizes:
- H-STD: Bearing thickness is precision finished to provide a nominal clearance based on OEM specifications. Suitable for all applications using crankshafts finished to OEM specifications.
- HX-STD: Providing an extra .001" (0.025mm) of clearance over the H-STD size bearings. Suitable for high to extreme power applications where additional clearance is beneficial to part reliability.
- H-001 / H-.025: Providing a reduction of .001" (0.025mm) of clearance over the H-STD size bearings. Suitable for adjusting clearance to compensate for surface reconditioning (polishing) of crankshaft journals or the use of low viscosity lubricants.
Please note: there are also HD (with location dowel holes) and HXD (with location dowel holes and 0.025mm (0.001") extra clearance) part numbers, reserved for some connecting rod bearing applications only.
Application List & Engine Codes
- Honda/ACCORD VI/SOHC/OHC 16v/D16B6
- Honda/TORNEO/SOHC/OHC 16v/D16B6
- Honda/CIVIC IV/SOHC/OHC 16v/D15B1
- Honda/CIVIC II/SOHC/OHC 16v/D15B2
- Honda/CIVIC IV/SOHC/OHC 16v/D15B2
- Honda/CIVIC V/SOHC/OHC 16v/D15B2
- Honda/CONCERTO/SOHC/OHC 16v/D15B2
- Honda/CRX II/SOHC/OHC 16v/D15B2
- Honda/CIVIC II/SOHC/OHC 16v/D15B4
- Honda/CIVIC IV/SOHC/OHC 16v/D15B4
- Honda/CIVIC V/SOHC/OHC 16v/D15B4
- Honda/CRX II/SOHC/OHC 8v/D15B6
- Honda/CITY III/SOHC/OHC 16v/D15B7
- Honda/CIVIC IV/SOHC/OHC 16v/D15B7
- Honda/CITY/SOHC/OHC 16v/D15B7
- Honda/CIVIC V/SOHC/OHC 16v/D15B7
- Honda/CRX III/SOHC/OHC 16v/D15B7
- Honda/CIVIC V/SOHC/OHC 8v/D15B8
- Honda/CIVIC V/SOHC/OHC 16v/D15Z1
- Honda/CIVIC V/SOHC/OHC 16v/D15Z2
- Honda/CIVIC VI/DOHC 16v/D15Z3
- Honda/CIVIC VI/SOHC/OHC 16v/D15Z6
- Honda/CIVIC VI/SOHC/OHC 16v/D15Z8
- Acura/INTEGRA/DOHC 16v/D16A1
- Honda/CIVIC IV/DOHC 16v/D16A1
- Acura/INTEGRA/DOHC 16v/D16A3
- Honda/INTEGRA/DOHC 16v/D16A3
- Honda/CIVIC II/SOHC/OHC 16v/D16A6
- Honda/CIVIC IV/SOHC/OHC 16v/D16A6
- Honda/CRX II/SOHC/OHC 16v/D16A6
- Honda/CIVIC II/SOHC/OHC 16v/D16A7
- Honda/CIVIC IV/SOHC/OHC 16v/D16A7
- Honda/CIVIC V/SOHC/OHC 16v/D16A7
- Acura/INTEGRA/DOHC 16v/D16A8
- Honda/CIVIC V/DOHC 16v/D16A8
- Honda/CONCERTO/DOHC 16v/D16A8
- Honda/CRX II/DOHC 16v/D16A8
- Honda/CIVIC IV/DOHC 16v/D16A9
- Honda/CIVIC V/DOHC 16v/D16A9
- Honda/CONCERTO/DOHC 16v/D16A9
- Honda/CIVIC VI/SOHC/OHC 16v/D16B2
- Honda/HR-V/SOHC/OHC 16v/D16W1
- Honda/CIVIC V/SOHC/OHC 16v/D16Y1
- Honda/CIVIC VI/SOHC/OHC 16v/D16Y4
- Honda/CIVIC VI/SOHC/OHC 16v/D16Y5
- Honda/CIVIC VI/SOHC/OHC 16v/D16Y7
- Honda/CRX III/SOHC/OHC 16v/D16Y7
- Acura/EL/SOHC/OHC 16v/D16Y8
- Honda/CIVIC VI/SOHC/OHC 16v/D16Y8
- Honda/CRX III/SOHC/OHC 16v/D16Y8
- Honda/CIVIC II/SOHC/OHC 16v/D16Z2
- Honda/CIVIC IV/SOHC/OHC 16v/D16Z2
- Honda/CIVIC V/SOHC/OHC 16v/D16Z2
- Honda/CONCERTO/SOHC/OHC 16v/D16Z2
- Honda/DOMANI/SOHC/OHC 16v/D16Z2
- Honda/CIVIC IV/DOHC 16v/D16Z5
- Honda/CRX II/DOHC 16v/D16Z5
- Honda/CIVIC V/SOHC/OHC 16v/D16Z6
- Honda/CRX III/SOHC/OHC 16v/D16Z6
Characteristics
| Car Make | Honda |
|---|---|
| Bearing Type | Rod Bearings |
| Engine Code | D15B, D15B1, D15B2, D15B6, D15B7, D15B8, D15Z1, D15Z6, D16A, D16A6, D16A7, D16A8, D16A9, D16B, D16Y5, D16Y7, D16Y8, D16Z2, D16Z5, D16Z6 |
Designed to withstand high RPM, temperatures and load, these high strength bearings are manufactured by ACL from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
