ACL Race Series Reinforced Rod Bearings - Ford Duratorq 2.0L, 2.2L, 2.4L (Ranger, Transit)

Engineering Bulletin

ACL provides an official guide for clearance control and optimization, and guidelines for bearing size selection : download it here.

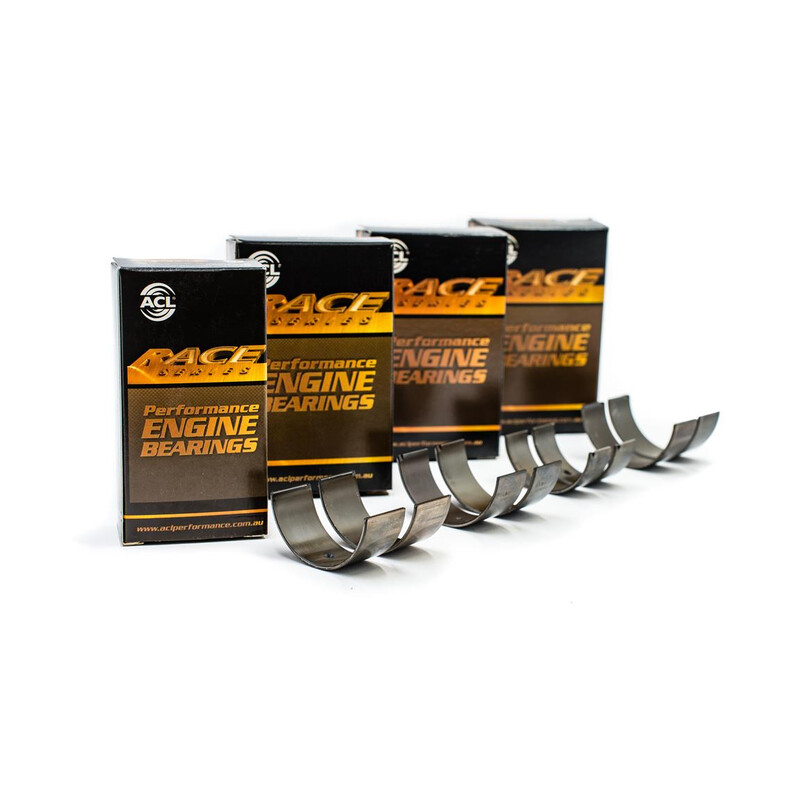

ACL Race Series Reinforced Rod Bearings

Designed to withstand high RPM, temperatures and load, these ACL Race Series bearings are manufactured from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.

To help engine builders optimise clearances for their specific applications, ACL provides a range of different bearing sizes for standard crankshaft journal sizes:

• H-STD: Bearing thickness is precision finished to provide a nominal clearance based on OEM specifications. Suitable for all applications using crankshafts finished to OEM specifications.
• HX-STD: Providing an extra .001" (0.025mm) of clearance over the H-STD size bearings. Suitable for high to extreme power applications where additional clearance is beneficial to part reliability.
• H-001 / H-.025: Providing a reduction of .001" (0.025mm) of clearance over the H-STD size bearings. Suitable for adjusting clearance to compensate for surface reconditioning (polishing) of crankshaft journals or the use of low viscosity lubricants.

Please note: there are also HD (with location dowel holes) and HXD (with location dowel holes and 0.025mm (0.001") extra clearance) part numbers, reserved for some connecting rod bearing applications only.

Application List & Engine Codes

• Ford/TOURNEO/2.0 DI 16V/ABFA
• Ford/TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)/2.0 DI (F_E_, F_F_, F_G_)/ABFA
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.0 DI (F_E_, F_F_)/ABFA
• Ford/TRANSIT TOURNEO Bus (FC_ _)/2.0/ABFA
• Ford/TRANSIT Van (FA_ _)/2.0 DI (FAE_, FAF_, FAG_)/ABFA
• Ford/MONDEO IV (BA7)/2.0 TDCi/AZBA
• Ford/MONDEO IV Saloon (BA7)/2.0 TDCi/AZBA
• Ford/MONDEO IV Turnier (BA7)/2.0 TDCi/AZBA
• Ford/MONDEO Hatchback (MA, MB, MC)/2.0 TDCi/AZBA
• Ford/MONDEO Saloon (MA, MB)/2.0 TDCi/AZBA
• Ford/TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)/2.0 DI (F_E_, F_F_, F_G_)/D3FA
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.0 DI (F_E_, F_F_)/D3FA
• Ford/TRANSIT TOURNEO Bus (FC_ _)/2.0/D3FA
• Ford/TRANSIT Van (FA_ _)/2.0 DI (FAE_, FAF_, FAG_)/D3FA
• Ford/MONDEO III (B5Y)/2.0 16V DI / TDDi / TDCi/D5BA
• Ford/MONDEO III Saloon (B4Y)/2.0 16V DI / TDDi / TDCi/D5BA
• Ford/MONDEO III Turnier (BWY)/2.0 16V DI / TDDi / TDCi/D5BA
• Ford/MONDEO III (B5Y)/2.0 16V TDDi / TDCi/D6BA
• Ford/MONDEO III Saloon (B4Y)/2.0 16V TDDi / TDCi/D6BA
• Ford/MONDEO III Turnier (BWY)/2.0 16V TDDi / TDCi/D6BA
• Ford/TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)/2.0 DI (F_E_, F_F_, F_G_)/F3FA
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.0 DI (F_E_, F_F_)/F3FA
• Ford/TRANSIT Van (FA_ _)/2.0 DI (FAE_, FAF_, FAG_)/F3FA
• Ford/TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)/2.0 TDCi (F_F_, F_E_, F_G_)/FIFA
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.0 TDCi (F_E_, F_F_)/FIFA
• Ford/TRANSIT TOURNEO Bus (FC_ _)/2.0/FIFA
• Ford/TRANSIT Van (FA_ _)/2.0 TDCi/FIFA
• Ford/MONDEO III (B5Y)/2.0 TDCi/FMBA
• Ford/MONDEO III Saloon (B4Y)/2.0 TDCi/FMBA
• Ford/MONDEO III Turnier (BWY)/2.0 TDCi/FMBA
• Jaguar/X-TYPE I Estate (X400)/2.0 D/FMBA
• Jaguar/X-TYPE I (X400)/2.0 D/FMBA
• Ford/MONDEO III (B5Y)/2.0 16V TDDi / TDCi/HJBA
• Ford/MONDEO III Saloon (B4Y)/2.0 16V TDDi / TDCi/HJBA
• Ford/MONDEO III Turnier (BWY)/2.0 16V TDDi / TDCi/HJBA
• Ford/MONDEO III (B5Y)/2.0 16V TDDi / TDCi/HJBB
• Ford/MONDEO III Saloon (B4Y)/2.0 16V TDDi / TDCi/HJBB
• Ford/MONDEO III Turnier (BWY)/2.0 16V TDDi / TDCi/HJBB
• Ford/MONDEO III (B5Y)/2.0 16V TDDi / TDCi/HJBC
• Ford/MONDEO III Saloon (B4Y)/2.0 16V TDDi / TDCi/HJBC
• Ford/MONDEO III Turnier (BWY)/2.0 16V TDDi / TDCi/HJBC
• Ford/MONDEO IV (BA7)/2.0 TDCi/LPBA
• Ford/MONDEO IV Saloon (BA7)/2.0 TDCi/LPBA
• Ford/MONDEO IV Turnier (BA7)/2.0 TDCi/LPBA
• Ford/MONDEO III (B5Y)/2.0 TDCi/N7BA
• Ford/MONDEO III Saloon (B4Y)/2.0 TDCi/N7BA
• Ford/MONDEO III Turnier (BWY)/2.0 TDCi/N7BA
• Ford/MONDEO III (B5Y)/2.0 TDCi/N7BB
• Ford/MONDEO III Saloon (B4Y)/2.0 TDCi/N7BB
• Ford/MONDEO III Turnier (BWY)/2.0 TDCi/N7BB
• Ford/MONDEO III (B5Y)/2.0 16V DI / TDDi / TDCi/SDBA
• Ford/MONDEO III Saloon (B4Y)/2.0 16V DI / TDDi / TDCi/SDBA
• Ford/MONDEO III Turnier (BWY)/2.0 16V DI / TDDi / TDCi/SDBA
• Ford/TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)/2.4 DI (F_B_, F_C_, F_A_)/D2FA
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.4 DI (F_A_, F_B_, F_C_, F_D_)/D2FA
• Ford/TRANSIT Van (FA_ _)/2.4 DI (FAA_, FAB_, FAC_, FAD_)/D2FA
• Ford/TRANSIT Bus (VH, VJ)/2.4 D/D2FA
• Ford/TRANSIT Platform/Chassis (VH, VJ)/2.4 TD/D2FA
• Ford/TRANSIT Van (VH, VJ)/2.4 TD/D2FA
• Ford/TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)/2.4 DI (F_B_, F_C_, F_A_)/D2FB
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.4 DI (F_A_, F_B_, F_C_, F_D_)/D2FB
• Ford/TRANSIT Van (FA_ _)/2.4 DI (FAA_, FAB_, FAC_, FAD_)/D2FB
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.4 DI (F_A_, F_B_, F_C_, F_D_)/D2FE
• Ford/TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)/2.4 DI RWD (F_B_, F_C_, F_A_)/D4FA
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.4 DI (F_A_, F_B_, F_C_, F_D_)/D4FA
• Ford/TRANSIT Van (FA_ _)/2.4 DI RWD (FAA_, FAB_, FAC_, FAD_)/D4FA
• Ford/TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)/2.4 TDE (F_C_, F_B_, F_A_)/DOFA
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.4 TDE/DOFA
• Ford/TRANSIT Van (FA_ _)/2.4 TDE/DOFA
• Ford/TRANSIT Bus (VH, VJ)/2.4 D/DOFA
• Ford/TRANSIT Platform/Chassis (VH, VJ)/2.4 TD/DOFA
• Ford/TRANSIT Van (VH, VJ)/2.4 TD/DOFA
• Ford/TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)/2.4 DI RWD (F_B_, F_C_)/F4FA
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.4 DI (F_A_, F_B_, F_C_, F_D_)/F4FA
• Ford/TRANSIT Van (FA_ _)/2.4 DI RWD (FAA_, FAB_, FAC_, FAD_)/F4FA
• Ford/TRANSIT Van (FA_ _)/2.4 TD/F4FA
• Ford/TRANSIT Bus (VH, VJ)/2.4 D/F4FA
• Ford/TRANSIT Platform/Chassis (VH, VJ)/2.4 TD/F4FA
• Mazda/BT-50 II pick-up (B22, B32, UP, UR)/2.2 MZ-CD/P4-AT
• Mazda/BT-50 II pick-up (B22, B32, UP, UR)/2.2 MZ-CD 4WD/P4-AT
• Ford/RANGER pick-up (PX)/2.2 TDdi (PX)/P4-AT
• Ford/RANGER pick-up (PX)/2.2 TDdi (PXII, PXIII)/P4-AT
