ACL Race Series Reinforced Main Bearings - Audi VR6 3.2L & 3.6L

ACL
ACL Race Series Reinforced Main Bearings - Audi VR6 3.2L & 3.6L
ACL Race Series Reinforced Main Bearings - Audi VR6 3.2L & 3.6L
ACL Race Series Reinforced Main Bearings - Audi VR6 3.2L & 3.6L
* generic picture
Some options are available below Please check them before adding to the cart

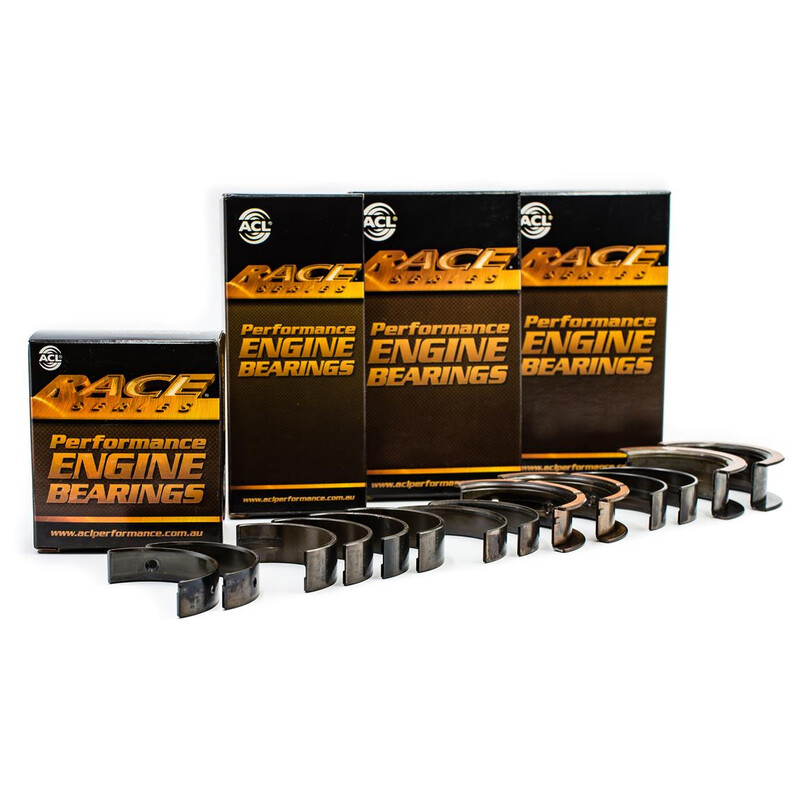

ACL Race Series Main Bearings

  • ACL trimetal main bearings
  • To suit high RPM/load applications
  • Offer reduced friction and operating temperatures
  • Increased oil supply and overall lubrication
  • To fit : Audi VR6 3.2L & 3.6L - full application list below
  • Made in Australia
Ask a question about this product
  • Your choice *Please fill in this field.
€0.00

Engineering Bulletin

ACL provides an official guide for clearance control and optimization, and guidelines for bearing size selection : download it here.

ACL Race Series Reinforced Main Bearings

Designed to withstand high RPM, temperatures and load, these ACL Race Series bearings are manufactured from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.

To help engine builders optimise clearances for their specific applications, ACL provides a range of different bearing sizes for standard crankshaft journal sizes:

  • H-STD: Bearing thickness is precision finished to provide a nominal clearance based on OEM specifications. Suitable for all applications using crankshafts finished to OEM specifications.
  • HX-STD: Providing an extra .001" (0.025mm) of clearance over the H-STD size bearings. Suitable for high to extreme power applications where additional clearance is beneficial to part reliability.
  • H-001 / H-.025: Providing a reduction of .001" (0.025mm) of clearance over the H-STD size bearings. Suitable for adjusting clearance to compensate for surface reconditioning (polishing) of crankshaft journals or the use of low viscosity lubricants.

Please note: there are also HD (with location dowel holes) and HXD (with location dowel holes and 0.025mm (0.001") extra clearance) part numbers, reserved for some connecting rod bearing applications only.

Application List & Engine Codes

  • Audi/A3 (8P1)/3.2 V6 quattro/BDB
  • Audi/A3 (8P1)/3.2 V6 quattro/BMJ
  • Audi/A3 (8P1)/3.2 V6 quattro/BUB
  • Audi/A3 Sportback (8PA)/3.2 V6 quattro/BDB
  • Audi/A3 Sportback (8PA)/3.2 V6 quattro/BMJ
  • Audi/A3 Sportback (8PA)/3.2 V6 quattro/BUB
  • Audi/Q7 (4LB)/3.6 FSI quattro/BHK
  • Audi/Q7 Van (4LB)/3.6 FSI quattro/BHK
  • Audi/TT (8J3)/3.2 V6 quattro/BUB
  • Audi/TT (8J3)/3.2 V6 quattro/CBRA
  • Audi/TT (8N3)/3.2 VR6 quattro/BHE
  • Audi/TT (8N3)/3.2 VR6 quattro/BPF
  • Audi/TT Roadster (8J9)/3.2 V6 quattro/BUB
  • Audi/TT Roadster (8J9)/3.2 V6 quattro/CBRA
  • Audi/TT Roadster (8N9)/3.2 VR6 quattro/BHE
  • Audi/TT Roadster (8N9)/3.2 VR6 quattro/BPF
  • Ford/GALAXY I (WGR)/2.8 i V6/AAA
  • Ford/GALAXY I (WGR)/2.8 i V6/AMY
  • Ford/GALAXY I (WGR)/2.8 i V6 4x4/AAA
  • Ford/GALAXY I (WGR)/2.8 i V6 4x4/AMY
  • Ford/GALAXY I (WGR)/2.8 V6/AYL
  • Ford/GALAXY MK I VAN (WGR)/2.8/AAA
  • Ford/GALAXY MK I VAN (WGR)/2.8/AYL
  • Porsche/CAYENNE (9PA)/3.2/M02.2Y
  • Seat/ALHAMBRA (7V8, 7V9)/2.8 V6/AYL
  • Seat/ALHAMBRA (7V8, 7V9)/2.8 V6/AUE
  • Seat/ALHAMBRA (7V8, 7V9)/2.8 V6 4motion/AYL
  • Seat/ALHAMBRA (7V8, 7V9)/2.8 V6 4motion/AUE
  • Seat/LEON (1M1)/2.8 Cupra 4/AUE
  • Seat/LEON (1M1)/2.8 Cupra 4/BDE
  • Seat/LEON (1M1)/2.8/BDE
  • Volkswagen/BORA I (1J2)/2.8 V6 4motion/AQP
  • Volkswagen/BORA I (1J2)/2.8 V6 4motion/AUE
  • Volkswagen/BORA I (1J2)/2.8 V6 4motion/BDE
  • Volkswagen/BORA Variant (1J6)/2.8 V6 4motion/AQP
  • Volkswagen/BORA Variant (1J6)/2.8 V6 4motion/AUE
  • Volkswagen/BORA Variant (1J6)/2.8 V6 4motion/BDE
  • Volkswagen/CC B7 (358)/3.6 FSI 4motion/BWS
  • Volkswagen/CORRADO (53I)/2.8 VR6/AAA
  • Volkswagen/CORRADO (53I)/2.9 VR6/ABV
  • Volkswagen/EOS (1F7, 1F8)/3.2 V6/BUB
  • Volkswagen/EOS (1F7, 1F8)/3.2 V6/CBRA
  • Volkswagen/GOLF III (1H1)/2.8 VR6/AAA
  • Volkswagen/GOLF III (1H1)/2.9 VR6 Syncro (1HX1)/ABV
  • Volkswagen/GOLF III Variant (1H5)/2.9 VR6 Syncro/ABV
  • Volkswagen/GOLF IV (1J1)/2.8 VR6 4motion/AQP
  • Volkswagen/GOLF IV (1J1)/2.8 VR6 4motion/AUE
  • Volkswagen/GOLF IV (1J1)/2.8 VR6 4motion/BDE
  • Volkswagen/GOLF IV (1J1)/3.2 R32 4motion/BFH
  • Volkswagen/GOLF IV (1J1)/3.2 R32 4motion/BML
  • Volkswagen/GOLF IV (1J1)/3.2 R32 4motion/BJS
  • Volkswagen/GOLF IV Variant (1J5)/2.8 V6 4motion/AQP
  • Volkswagen/GOLF IV Variant (1J5)/2.8 V6 4motion/AUE
  • Volkswagen/GOLF IV Variant (1J5)/2.8 V6 4motion/BDE
  • Volkswagen/GOLF V (1K1)/3.2 R32 4motion/BUB
  • Volkswagen/GOLF V (1K1)/3.2 R32 4motion/CBRA
  • Volkswagen/MULTIVAN V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)/VR6 3.2/BDL
  • Volkswagen/MULTIVAN V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)/VR6 3.2/BKK
  • Volkswagen/MULTIVAN V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)/VR6 3.2/CFLA
  • Volkswagen/MULTIVAN V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)/VR6 3.2 4motion/BDL
  • Volkswagen/MULTIVAN V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)/VR6 3.2 4motion/BKK
  • Volkswagen/MULTIVAN V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)/VR6 3.2 4motion/CFLA
  • Volkswagen/NEW BEETLE (9C1, 1C1)/3.2 RSI 4motion (1C9)/AXJ
  • Volkswagen/PASSAT B6 (3C2)/3.2 FSI 4motion/AXZ
  • Volkswagen/PASSAT B6 (3C2)/3.6 R36 4motion/BWS
  • Volkswagen/PASSAT B6 Variant (3C5)/3.2 FSI 4motion/AXZ
  • Volkswagen/PASSAT B6 Variant (3C5)/3.6 R36 4motion/BWS
  • Volkswagen/PASSAT B7 (362)/3.6 FSI 4motion/BWS
  • Volkswagen/PASSAT B7 Variant (365)/3.6 FSI 4motion/BWS
  • Volkswagen/PASSAT CC B6 (357)/3.6 FSI 4motion/BWS
  • Volkswagen/PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9)/3.2 V6/AYT
  • Volkswagen/PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9)/3.2 V6/BKL
  • Volkswagen/PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9)/3.2 V6 4motion/BKL
  • Volkswagen/PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9)/3.2 V6 4motion/BRK
  • Volkswagen/SHARAN (7M8, 7M9, 7M6)/2.8 VR6/AAA
  • Volkswagen/SHARAN (7M8, 7M9, 7M6)/2.8 VR6/AMY
  • Volkswagen/SHARAN (7M8, 7M9, 7M6)/2.8 VR6 Syncro/AAA
  • Volkswagen/SHARAN (7M8, 7M9, 7M6)/2.8 VR6 Syncro/AMY
  • Volkswagen/SHARAN (7M8, 7M9, 7M6)/2.8 V6 24V/AYL
  • Volkswagen/SHARAN (7M8, 7M9, 7M6)/2.8 V6 24V 4motion/AYL
  • Volkswagen/SHARAN VAN (7M_)/2.8 VR6 (7M8)/AAA
  • Volkswagen/SHARAN VAN (7M_)/2.8 VR6 (7M9)/AYL
  • Volkswagen/TOUAREG (7LA, 7L6, 7L7)/3.2 V6/AZZ
  • Volkswagen/TOUAREG (7LA, 7L6, 7L7)/3.2 V6/BKJ
  • Volkswagen/TOUAREG (7LA, 7L6, 7L7)/3.2 V6/BMX
  • Volkswagen/TOUAREG (7LA, 7L6, 7L7)/3.2 V6/BMV
  • Volkswagen/TOUAREG (7LA, 7L6, 7L7)/3.2 V6/BRJ
  • Volkswagen/TOUAREG (7LA, 7L6, 7L7)/3.2 V6/BAA
  • Volkswagen/TOUAREG (7LA, 7L6, 7L7)/3.6 V6 FSI/BHK
  • Volkswagen/TOUAREG (7LA, 7L6, 7L7)/3.6 V6 FSI/BHL
  • Volkswagen/TRANSPORTER IV (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7/2.8 VR 6/AES
  • Volkswagen/TRANSPORTER IV (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7/2.8 VR6/AMV
  • Volkswagen/TRANSPORTER IV (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7/2.8 VR6/AXK
  • Volkswagen/TRANSPORTER IV (70E, 70L, 70M, 7DE, 7DL/2.8/AES
  • Volkswagen/TRANSPORTER IV (70E, 70L, 70M, 7DE, 7DL/2.8 VR6/AMV
  • Volkswagen/TRANSPORTER IV (70A, 70H, 7DA, 7DH)/2.8 VR6/AES
  • Volkswagen/TRANSPORTER IV (70A, 70H, 7DA, 7DH)/2.8 VR6/AMV
  • Volkswagen/TRANSPORTER IV (70A, 70H, 7DA, 7DH)/2.8 VR6/AXK
  • Volkswagen/TRANSPORTER V (7HB, 7HJ, 7EB, 7EJ)/3.2 V6 4motion/BDL
  • Volkswagen/TRANSPORTER V (7HB, 7HJ, 7EB, 7EJ)/3.2 V6 4motion/BKK
  • Volkswagen/TRANSPORTER V (7HB, 7HJ, 7EB, 7EJ)/3.2 V6 4motion/CFLA
  • Volkswagen/TRANSPORTER V (7HB, 7HJ, 7EB, 7EJ)/VR6 3.2/BDL
  • Volkswagen/TRANSPORTER V (7HB, 7HJ, 7EB, 7EJ)/VR6 3.2/BKK
  • Volkswagen/TRANSPORTER V (7HB, 7HJ, 7EB, 7EJ)/VR6 3.2/CFLA
  • Volkswagen/TRANSPORTER V (7JD, 7JE, 7JL, 7JY, 7JZ,/VR6 3.2/BDL
  • Volkswagen/TRANSPORTER V (7JD, 7JE, 7JL, 7JY, 7JZ,/VR6 3.2/BKK
  • Volkswagen/TRANSPORTER V (7HA, 7HH, 7EA, 7EH)/VR6 3.2 4motion/BDL
  • Volkswagen/TRANSPORTER V (7HA, 7HH, 7EA, 7EH)/VR6 3.2 4motion/BKK
  • Volkswagen/TRANSPORTER V (7HA, 7HH, 7EA, 7EH)/VR6 3.2 4motion/CFLA
  • Volkswagen/TRANSPORTER V (7HA, 7HH, 7EA, 7EH)/VR6 3.2/BDL
  • Volkswagen/TRANSPORTER V (7HA, 7HH, 7EA, 7EH)/VR6 3.2/BKK
  • Volkswagen/TRANSPORTER V (7HA, 7HH, 7EA, 7EH)/VR6 3.2/CFLA
  • Volkswagen/VENTO (1H2)/2.8 VR6/AAA
  • Volkswagen/PASSAT B3/2.8 VR6/AAA
  • Volkswagen/PASSAT B4/2.8 VR6/AAA
  • Volkswagen/PASSAT B3/2.9 VR6 Syncro/ABV
  • Volkswagen/PASSAT B4/2.9 VR6 Syncro/ABV

Characteristics

Car Make Audi, Seat, Volkswagen, Ford
Bearing Type Main Bearings
Engine Code VR6

Designed to withstand high RPM, temperatures and load, these high strength bearings are manufactured by ACL from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
