ACL Race Series Reinforced Main Bearings - Audi S3 & TTS 2.0L TFSI (EA888 Gen. 2)

ACL

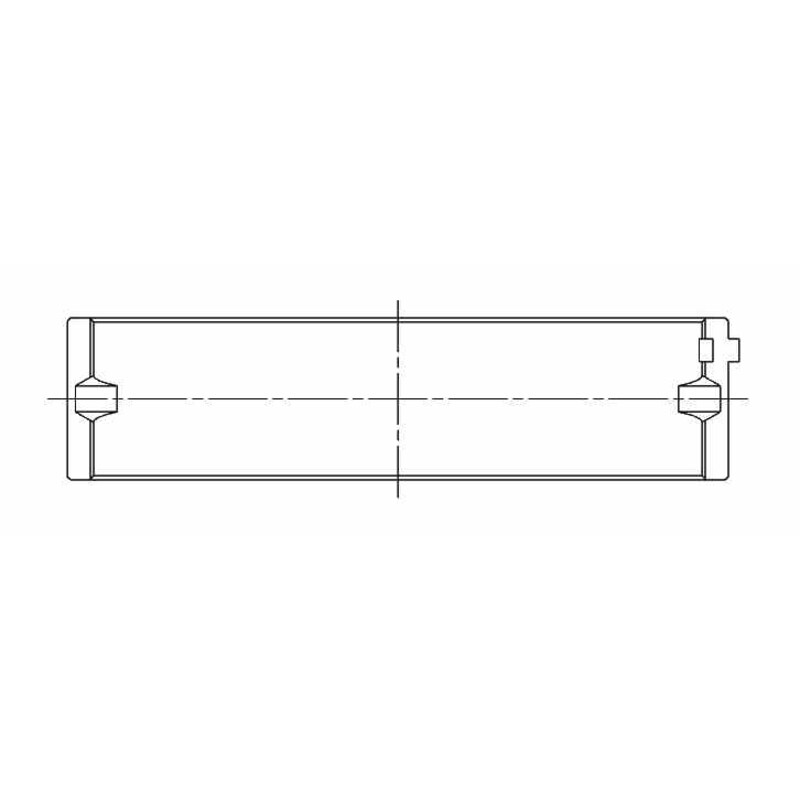

* generic picture

Some options are available below Please check them before adding to the cart

ACL Race Series Main Bearings

ACL trimetal main bearings
To suit high RPM/load applications
Offer reduced friction and operating temperatures
Increased oil supply and overall lubrication
To fit : Audi S3 & TTS 2.0L TFSI (EA888 Gen. 2) - full application list below
Made in Australia

Ask a question about this product

Your choice *Please fill in this field.
1 x ACL Race Series Bearings - Standard Size (P/N 5M5563H-STD) +€128.99 (1 in stock)
1 x ACL Race Series Bearings - HX Size (P/N 5M5563HX-STD) +€128.99 (Dispatched under 5 to 6 days)
1 x ACL Race Series Bearings - Repair Size 0.025 mm (P/N 5M5563H-.025) +€128.99 (Dispatched under 5 to 6 days)
1 x ACL Race Series Bearings - Repair Size 0.25 mm (P/N 5M5563H-.25) +€128.99 (Dispatched under 5 to 6 days)

€0.00

Engineering Bulletin

ACL provides an official guide for clearance control and optimization, and guidelines for bearing size selection : download it here.

ACL Race Series Reinforced Main Bearings

Designed to withstand high RPM, temperatures and load, these ACL Race Series bearings are manufactured from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.

To help engine builders optimise clearances for their specific applications, ACL provides a range of different bearing sizes for standard crankshaft journal sizes:

H-STD: Bearing thickness is precision finished to provide a nominal clearance based on OEM specifications. Suitable for all applications using crankshafts finished to OEM specifications.
HX-STD: Providing an extra .001" (0.025mm) of clearance over the H-STD size bearings. Suitable for high to extreme power applications where additional clearance is beneficial to part reliability.
H-001 / H-.025: Providing a reduction of .001" (0.025mm) of clearance over the H-STD size bearings. Suitable for adjusting clearance to compensate for surface reconditioning (polishing) of crankshaft journals or the use of low viscosity lubricants.

Please note: there are also HD (with location dowel holes) and HXD (with location dowel holes and 0.025mm (0.001") extra clearance) part numbers, reserved for some connecting rod bearing applications only.

Application List & Engine Codes

Audi/A3 (8P1)/1.8 TFSI/BYT
Audi/A3 (8P1)/1.8 TFSI/BZB
Audi/A3 (8P1)/1.8 TFSI/CDAA
Audi/A3 (8P1)/2.0 TFSI/AXX
Audi/A3 (8P1)/2.0 TFSI/CAWB
Audi/A3 (8P1)/2.0 TFSI/CCZA
Audi/A3 (8P1)/2.0 TFSI quattro/AXX
Audi/A3 (8P1)/2.0 TFSI quattro/CCZA
Audi/A3 (8P1)/2.0 TFSI quattro/CBFA
Audi/A3 (8P1)/2.0 TFSI quattro/CCTA
Audi/A3 Convertible (8P7)/1.8 TFSI/BZB
Audi/A3 Convertible (8P7)/1.8 TFSI/CDAA
Audi/A3 Convertible (8P7)/2.0 TFSI/CAWB
Audi/A3 Convertible (8P7)/2.0 TFSI/CCZA
Audi/A3 Sportback (8PA)/1.8 TFSI/BYT
Audi/A3 Sportback (8PA)/1.8 TFSI/BZB
Audi/A3 Sportback (8PA)/1.8 TFSI/CDAA
Audi/A3 Sportback (8PA)/2.0 TFSI quattro/AXX
Audi/A3 Sportback (8PA)/2.0 TFSI quattro/CCZA
Audi/A3 Sportback (8PA)/2.0 TFSI quattro/CBFA
Audi/A3 Sportback (8PA)/2.0 TFSI quattro/CCTA
Audi/A3 Sportback (8PA)/2.0 TFSI/AXX
Audi/A3 Sportback (8PA)/2.0 TFSI/CAWB
Audi/A3 Sportback (8PA)/2.0 TFSI/CCZA
Audi/A3 Sportback (8PA)/2.0 TFSI/CBFA
Audi/A3 Sportback (8PA)/2.0 TFSI/CCTA
Audi/A4 Allroad B8 (8KH)/2.0 TFSI quattro/CDNC
Audi/A4 Allroad B8 (8KH)/2.0 TFSI quattro/CPMA
Audi/A4 Allroad B8 (8KH)/2.0 TFSI quattro/CPMB
Audi/A4 B8 (8K2)/1.8 TFSI/CABB
Audi/A4 B8 (8K2)/1.8 TFSI/CABA
Audi/A4 B8 (8K2)/2.0 TFSI/CDNC
Audi/A4 B8 (8K2)/2.0 TFSI/CAEB
Audi/A4 B8 (8K2)/2.0 TFSI/CDNB
Audi/A4 B8 (8K2)/2.0 TFSI/CAEA
Audi/A4 B8 (8K2)/2.0 TFSI/CFKA
Audi/A4 B8 (8K2)/2.0 TFSI quattro/CDNC
Audi/A4 B8 (8K2)/2.0 TFSI quattro/CAEB
Audi/A4 B8 (8K2)/2.0 TFSI quattro/CPMA
Audi/A4 B8 (8K2)/2.0 TFSI quattro/CFKA
Audi/A4 B8 (8K2)/2.0 TFSI flexible fuel quattro/CFKA
Audi/A4 B8 (8K2)/2.0 TFSI flexible fuel/CFKA
Audi/A4 B8 (8K2)/2.0 TFSI/CAED
Audi/A4 B8 (8K2)/2.0 TFSI quattro/CPMB
Audi/A4 B8 (8K2)/2.0 TFSI quattro/CAED
Audi/A4 B8 Avant (8K5)/1.8 TFSI/CABB
Audi/A4 B8 Avant (8K5)/2.0 TFSI/CDNC
Audi/A4 B8 Avant (8K5)/2.0 TFSI/CAEB
Audi/A4 B8 Avant (8K5)/2.0 TFSI quattro/CDNC
Audi/A4 B8 Avant (8K5)/2.0 TFSI quattro/CAEB
Audi/A4 B8 Avant (8K5)/2.0 TFSI/CDNB
Audi/A4 B8 Avant (8K5)/2.0 TFSI/CFKA
Audi/A4 B8 Avant (8K5)/2.0 TFSI flexible fuel quattro/CFKA
Audi/A4 B8 Avant (8K5)/2.0 TFSI flexible fuel/CFKA
Audi/A5 (8T3)/2.0 TFSI/CDNC
Audi/A5 (8T3)/2.0 TFSI quattro/CDNC
Audi/A5 (8T3)/2.0 TFSI quattro/CAEB
Audi/A5 (8T3)/2.0 TFSI quattro/CPMA
Audi/A5 (8T3)/2.0 TFSI/CDNB
Audi/A5 (8T3)/2.0 TFSI quattro/CPMB
Audi/A5 (8T3)/2.0 TFSI quattro/CAED
Audi/A5 Convertible (8F7)/2.0 TFSI/CDNB
Audi/A5 Convertible (8F7)/2.0 TFSI/CAEA
Audi/A5 Convertible (8F7)/2.0 TFSI/CDNC
Audi/A5 Convertible (8F7)/2.0 TFSI/CAEB
Audi/A5 Convertible (8F7)/2.0 TFSI quattro/CDNC
Audi/A5 Convertible (8F7)/2.0 TFSI quattro/CAEB
Audi/A5 Convertible (8F7)/2.0 TFSI quattro/CPMA
Audi/A5 Convertible (8F7)/2.0 TFSI quattro/CPMB
Audi/A5 Convertible (8F7)/2.0 TFSI/CAED
Audi/A5 Sportback (8TA)/2.0 TFSI/CDNC
Audi/A5 Sportback (8TA)/2.0 TFSI/CDNB
Audi/A5 Sportback (8TA)/2.0 TFSI quattro/CDNC
Audi/A6 C7 (4G2, 4GC)/2.0 TFSI/CAEB
Audi/A6 C7 (4G2, 4GC)/2.0 TFSI/CDNB
Audi/A6 C7 (4G2, 4GC)/2.0 TFSI Hybrid/CHJA
Audi/A6 C7 (4G2, 4GC)/2.0 TFSI quattro/CAEB
Audi/A6 C7 (4G2, 4GC)/2.0 TFSI/CAED
Audi/A6 C7 Avant (4G5, 4GD)/2.0 TFSI/CDNB
Audi/A8 D4 (4H2, 4H8, 4HC, 4HL)/2.0 TFSI hybrid/CHJA
Audi/Q3 (8UB, 8UG)/2.0 TFSI quattro/CCZC
Audi/Q3 (8UB, 8UG)/2.0 TFSI quattro/CPSA
Audi/Q3 (8UB, 8UG)/2.0 TFSI quattro/CCTA
Audi/Q5 (8RB)/2.0 TFSI quattro/CDNC
Audi/Q5 (8RB)/2.0 TFSI quattro/CAEB
Audi/Q5 (8RB)/2.0 TFSI quattro/CDNB
Audi/Q5 (8RB)/2.0 TFSI Hybrid quattro/CHJA
Audi/Q5 (8RB)/2.0 TFSI quattro/CPMB
Audi/Q5 Van (8RB)/2.0 TFSI quattro/CDNC
Audi/TT (8J3)/2.0 TFSI/CCTA
Audi/TT (8J3)/2.0 TFSI quattro/CCZA
Audi/TT (8J3)/2.0 TFSI quattro/CCTA
Audi/TT (8J3)/2.0 TFSI/CESA
Audi/TT (8J3)/2.0 TFSI quattro/CESA
Audi/TT (8J3)/2.0 TFSI quattro/CETA
Audi/TT Roadster (8J9)/2.0 TFSI/CCTA
Audi/TT Roadster (8J9)/2.0 TFSI quattro/CCZA
Audi/TT Roadster (8J9)/2.0 TFSI quattro/CCTA
Audi/TT Roadster (8J9)/2.0 TFSI quattro/CESA
Audi/TT Roadster (8J9)/2.0 TFSI quattro/CETA
Audi/TT Roadster (8J9)/2.0 TFSI/CESA
KTM/X-Bow Convertible/2.0/CAEB
Seat/ALHAMBRA (710, 711)/2.0 TSI/CCZA
Seat/ALTEA (5P1)/1.8 TFSI/BYT
Seat/ALTEA (5P1)/1.8 TFSI/BZB
Seat/ALTEA (5P1)/1.8 TFSI/CDAA
Seat/ALTEA XL (5P5, 5P8)/1.8 TFSI/BYT
Seat/ALTEA XL (5P5, 5P8)/1.8 TFSI/BZB
Seat/ALTEA XL (5P5, 5P8)/1.8 TFSI/CDAA
Seat/ALTEA XL (5P5, 5P8)/2.0 TFSI 4x4/CCZB
Seat/ALTEA XL (5P5, 5P8)/2.0 TFSI/CCZB
Seat/EXEO (3R2)/2.0 TFSI/CDND
Seat/EXEO ST (3R5)/2.0 TFSI/CDND
Seat/LEON (1P1)/1.8 TSI/BZB
Seat/LEON (1P1)/1.8 TSI/CDAA
Seat/LEON (1P1)/2.0 TFSI/CCZB
Seat/TOLEDO III (5P2)/1.8 TFSI/BYT
Seat/TOLEDO III (5P2)/1.8 TFSI/BZB
Seat/TOLEDO III (5P2)/1.8 TFSI/CDAA
Skoda/OCTAVIA II (1Z3)/1.8 TSI/BZB
Skoda/OCTAVIA II (1Z3)/1.8 TSI/CDAA
Skoda/OCTAVIA II (1Z3)/2.0 TFSI/CCZA
Skoda/OCTAVIA II Combi (1Z5)/1.8 TSI/BZB
Skoda/OCTAVIA II Combi (1Z5)/1.8 TSI/CDAA
Skoda/OCTAVIA II Combi (1Z5)/2.0 TFSI/CCZA
Skoda/SUPERB II (3T4)/1.8 TSI/BZB
Skoda/SUPERB II (3T4)/1.8 TSI/CDAA
Skoda/SUPERB II (3T4)/2.0 TFSI/CCZA
Skoda/SUPERB II (3T5)/2.0 TFSI/CCZA
Volkswagen/AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B)/2.0 TSI/CFPA
Volkswagen/BEETLE (5C1, 5C2)/2.0 TFSI/CCTA
Volkswagen/BEETLE (5C1, 5C2)/2.0 TFSI/CBFA
Volkswagen/BEETLE (5C1, 5C2)/2.0 TFSI/CCZA
Volkswagen/BEETLE Convertible (5C7, 5C8)/2.0 TFSI/CCTA
Volkswagen/BEETLE Convertible (5C7, 5C8)/2.0 TFSI/CBFA
Volkswagen/BEETLE Convertible (5C7, 5C8)/2.0 TFSI/CCZA
Volkswagen/CC B7 (358)/2.0 TSI/CCZB
Volkswagen/EOS (1F7, 1F8)/2.0 TFSI/CAWB
Volkswagen/EOS (1F7, 1F8)/2.0 TFSI/CCTA
Volkswagen/EOS (1F7, 1F8)/2.0 TFSI/CBFA
Volkswagen/EOS (1F7, 1F8)/2.0 TFSI/CCZA
Volkswagen/EOS (1F7, 1F8)/2.0 TSI/CCZB
Volkswagen/GOLF V (1K1)/2.0 GTI/AXX
Volkswagen/GOLF V (1K1)/2.0 GTI/CAWB
Volkswagen/GOLF V (1K1)/2.0 GTI/CCTA
Volkswagen/GOLF V (1K1)/2.0 GTI/CBFA
Volkswagen/GOLF V Variant (1K5)/2.0 TFSI/CAWB
Volkswagen/GOLF V Variant (1K5)/2.0 TFSI/CCTA
Volkswagen/GOLF V Variant (1K5)/2.0 TFSI/CBFA
Volkswagen/GOLF VI (5K1)/2.0 GTi/CCZB
Volkswagen/GOLF VI (5K1)/2.0 GTi/CCTA
Volkswagen/GOLF VI (5K1)/2.0 GTi/CBFA
Volkswagen/GOLF VI (5K1)/2.0 GTi/CCZA
Volkswagen/GOLF VI Convertible (517)/2.0 GTI/CCZB
Volkswagen/GOLF VI Van (5K1_)/2.0 GTi/CCZB
Volkswagen/GOLF VI Variant (AJ5)/2.0 TFSI/CCZA
Volkswagen/JETTA III (1K2)/2.0 TFSI/AXX
Volkswagen/JETTA III (1K2)/2.0 TFSI/CAWB
Volkswagen/JETTA III (1K2)/2.0 TFSI/CCTA
Volkswagen/JETTA III (1K2)/2.0 TFSI/CBFA
Volkswagen/JETTA IV (162, 163, AV3, AV2)/2.0 TFSI/CCTA
Volkswagen/JETTA IV (162, 163, AV3, AV2)/2.0 TFSI/CBFA
Volkswagen/JETTA IV (162, 163, AV3, AV2)/2.0 TFSI/CCZA
Volkswagen/MULTIVAN V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)/2.0 TSI/CJKA
Volkswagen/MULTIVAN V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)/2.0 TSI 4motion/CJKA
Volkswagen/MULTIVAN V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)/2.0 TSI/CJKB
Volkswagen/MULTIVAN VI (SGF, SGM, SGN, SHM, SHN)/2.0 TSI/CJKB
Volkswagen/MULTIVAN VI (SGF, SGM, SGN, SHM, SHN)/2.0 TSI/CJKA
Volkswagen/MULTIVAN VI (SGF, SGM, SGN, SHM, SHN)/2.0 TSI 4motion/CJKA
Volkswagen/PASSAT ALLTRACK B7 (365)/2.0 TSI 4motion/CCZB
Volkswagen/PASSAT B6 (3C2)/1.8 TSI/BZB
Volkswagen/PASSAT B6 (3C2)/1.8 TSI/CDAA
Volkswagen/PASSAT B6 (3C2)/1.8 TSI/CDAB
Volkswagen/PASSAT B6 (3C2)/1.8 TSI/CGYA
Volkswagen/PASSAT B6 (3C2)/2.0 TFSI/AXX
Volkswagen/PASSAT B6 (3C2)/2.0 TFSI/CAWB
Volkswagen/PASSAT B6 (3C2)/2.0 TFSI/CCTA
Volkswagen/PASSAT B6 (3C2)/2.0 TFSI/CBFA
Volkswagen/PASSAT B6 (3C2)/2.0 TFSI/CCZA
Volkswagen/PASSAT B6 Variant (3C5)/1.8 TSI/BZB
Volkswagen/PASSAT B6 Variant (3C5)/1.8 TSI/CDAA
Volkswagen/PASSAT B6 Variant (3C5)/1.8 TSI/CDAB
Volkswagen/PASSAT B6 Variant (3C5)/1.8 TSI/CGYA
Volkswagen/PASSAT B6 Variant (3C5)/2.0 TFSI/AXX
Volkswagen/PASSAT B6 Variant (3C5)/2.0 TFSI/CAWB
Volkswagen/PASSAT B6 Variant (3C5)/2.0 TFSI/CCTA
Volkswagen/PASSAT B6 Variant (3C5)/2.0 TFSI/CBFA
Volkswagen/PASSAT B6 Variant (3C5)/2.0 TFSI/CCZA
Volkswagen/PASSAT B7 (362)/2.0 TSI/CCZB
Volkswagen/PASSAT B7 (365)/2.0 TFSI/CCZB
Volkswagen/PASSAT B7 Variant (365)/2.0 TSI/CCZB
Volkswagen/PASSAT CC B6 (357)/1.8 TSI/BZB
Volkswagen/PASSAT CC B6 (357)/1.8 TSI/CDAA
Volkswagen/PASSAT CC B6 (357)/1.8 TSI/CDAB
Volkswagen/PASSAT CC B6 (357)/1.8 TSI/CGYA
Volkswagen/PASSAT CC B6 (357)/2.0 TFSI/CAWB
Volkswagen/PASSAT CC B6 (357)/2.0 TFSI/CCTA
Volkswagen/PASSAT CC B6 (357)/2.0 TFSI/CBFA
Volkswagen/PASSAT CC B6 (357)/2.0 TFSI/CCZA
Volkswagen/PASSAT CC B6 (357)/2.0 TSI/CCZB
Volkswagen/SCIROCCO III (137, 138)/2.0 TFSI/CAWB
Volkswagen/SCIROCCO III (137, 138)/2.0 TSI/CCZB
Volkswagen/SCIROCCO Van (137)/2.0 TFSi/CCZB
Volkswagen/SHARAN (7N1, 7N2)/2.0 TFSI/CCZA
Volkswagen/SHARAN VAN (7N1, 7N2)/2.0 TSI/CCZA
Volkswagen/TIGUAN (5N_)/2.0 TFSI 4motion/CAWA
Volkswagen/TIGUAN (5N_)/2.0 TFSI 4motion/CCTB
Volkswagen/TIGUAN (5N_)/2.0 TFSI 4motion/CCZC
Volkswagen/TIGUAN (5N_)/2.0 TFSI 4motion/CAWB
Volkswagen/TIGUAN (5N_)/2.0 TFSI 4motion/CCTA
Volkswagen/TIGUAN (5N_)/2.0 TFSI 4motion/CCZA
Volkswagen/TIGUAN (5N_)/2.0 TSI 4motion/CCZD
Volkswagen/TIGUAN (5N_)/2.0 TSI 4motion/CCZB
Volkswagen/TIGUAN VAN (5N_)/2.0 TSI 4motion (5N1)/CCZA
Volkswagen/TIGUAN VAN (5N_)/2.0 TSI 4motion (5N1)/CCZC
Volkswagen/TIGUAN VAN (5N_)/2.0 TSI 4motion (5N2)/CCZB
Volkswagen/TRANSPORTER V (7HB, 7HJ, 7EB, 7EJ)/2.0 TSI/CJKA
Volkswagen/TRANSPORTER V (7HB, 7HJ, 7EB, 7EJ)/2.0 TSI 4motion/CJKA
Volkswagen/TRANSPORTER V (7HB, 7HJ, 7EB, 7EJ)/2.0 TSI/CJKB
Volkswagen/TRANSPORTER V (7JD, 7JE, 7JL, 7JY, 7JZ,/2.0 TSI/CJKB
Volkswagen/TRANSPORTER V (7HA, 7HH, 7EA, 7EH)/2.0 TSI/CJKA
Volkswagen/TRANSPORTER V (7HA, 7HH, 7EA, 7EH)/2.0 TSI 4motion/CJKA
Volkswagen/TRANSPORTER V (7HA, 7HH, 7EA, 7EH)/2.0 TSI/CJKB
Volkswagen/TRANSPORTER VI (SFD, SFE, SFL, SFZ, SJD/2.0 TSI/CJKB
Volkswagen/TRANSPORTER VI (SGA, SGH, SHA, SHH)/2.0 TSI/CJKB
Volkswagen/TRANSPORTER VI (SGA, SGH, SHA, SHH)/2.0 TSI/CJKA
Volkswagen/TRANSPORTER VI (SGA, SGH, SHA, SHH)/2.0 TSI 4motion/CJKA
Volkswagen/TRANSPORTER VI/2.0 TSI/CJKB
Volkswagen/CARAVELLE VI/2.0 TSI/CJKB
Volkswagen/TRANSPORTER VI/2.0 TSI/CJKA
Volkswagen/CARAVELLE VI/2.0 TSI/CJKA
Volkswagen/TRANSPORTER VI/2.0 TSI 4motion/CJKA
Volkswagen/CARAVELLE VI/2.0 TSI 4motion/CJKA

Characteristics

Car Make	Seat, Skoda, Audi, Volkswagen
Bearing Type	Main Bearings
Engine Code	EA888

Designed to withstand high RPM, temperatures and load, these high strength bearings are manufactured by ACL from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
