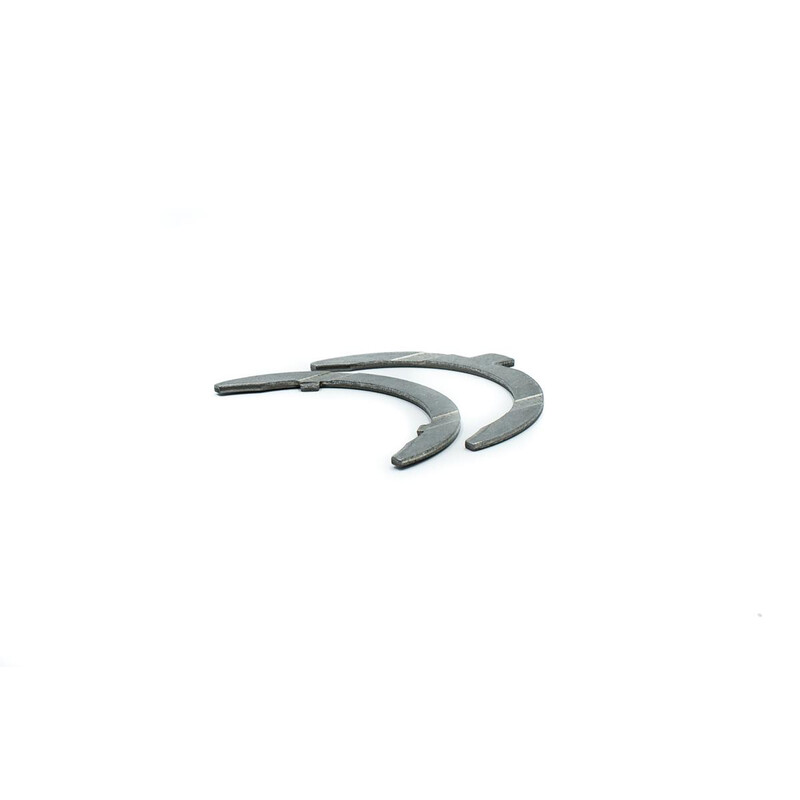

ACL Reinforced Thrust Bearings - Hyundai & Kia 2.0L (i40, ix35, Tuscon, Soul, Optima, Sportage)
ACL Uprated Thrust Washers
- ACL trimetal thrust bearings
- To suit high RPM/load applications
- Offer reduced friction and operating temperatures
- Increased oil supply and overall lubrication
- To fit : Hyundai & Kia 2.0L (i40, ix35, Tuscon, Soul, Optima, Sportage) - full application list below
- Made in Australia
Ask a question about this productEngineering Bulletin
ACL provides an official guide for clearance control and optimization, and guidelines for bearing size selection : download it here.
ACL Reinforced Thrust Bearings
Designed to withstand high RPM, temperatures and load, these high strength bearings are manufactured by ACL from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
Available on selected applications, Calico's CT-1 coating provides intermittent dry lubrication, unaffected by dust or dirt, which helps to reduce friction and abrasive wear. It is specially designed to withstand the extreme conditions of modern high-performance engines.
These bearings, also called thrust washers, are sold in standard sizes and, depending on the part number, in repair sizes.
Application List & Engine Codes
- Hyundai/ix35 (LM, EL, ELH)/2.0 4WD/G4NA
- Hyundai/ix35 (LM, EL, ELH)/2.0 AWD/G4NA
- Hyundai/TUCSON (TL, TLE)/2.0 All-wheel Drive/G4NA
- Kia/SPORTAGE IV (QL, QLE)/2.0 AWD/G4NA
- Hyundai/TUCSON (TL, TLE)/2.0 CVVT All-wheel Drive/G4NA
- Kia/SPORTAGE III (SL)/2.0 CVVT AWD/G4NA
- Hyundai/i40 I (VF)/2.0 CVVT/G4NA
- Hyundai/i40 I CW (VF)/2.0 CVVT/G4NA
- Hyundai/SONATA VII (LF)/2.0 CVVT/G4NA
- Kia/SOUL II (PS)/2.0 CVVT/G4NA
- Kia/SPORTAGE III (SL)/2.0 CVVT/G4NA
- Kia/i40 I (VF)/2.0 CVVT/G4NA
- Kia/OPTIMA (FSGDS6B)/2.0 CVVT/G4NA
- Hyundai/SONATA VI (YF)/2.0 Hybrid/G4NA
- Kia/KIA SOUL III (SK3)/2.0 MPi/G4NA
- Kia/KIA CERATO IV Saloon (BD, BDM)/2.0 MPi/G4NA
- Hyundai/ELANTRA VI Saloon (AD, ADA) 2.0/2.0/G4NA
- Hyundai/ELANTRA VI Saloon (AD, ADA)/2.0/G4NA
- Hyundai/TUCSON (TL, TLE)/2.0/G4NA
- Hyundai/ix35 (LM, EL, ELH)/2.0/G4NA
- Kia/SPORTAGE IV (QL, QLE)/2.0/G4NA
- Hyundai/ELANTRA V Saloon (MD, UD)/1.8/G4NB
- Hyundai/ix35 (LM, EL, ELH)/2.0 GDi 4WD/G4NC
- Kia/SPORTAGE III (SL)/2.0 GDI AWD/G4NC
- Kia/CARENS IV/2.0 GDi/G4NC
- Hyundai/i40 I (VF)/2.0 GDi/G4NC
- Hyundai/i40 I CW (VF)/2.0 GDi/G4NC
- Kia/SPORTAGE III (SL)/2.0 GDI/G4NC
- Hyundai/ix35 (LM, EL, ELH)/2.0 GDi/G4NC
- Hyundai/i40 I (VF)/2.0 GDI/G4NC
- Hyundai/i40 I CW (VF)/2.0 GDI/G4NC
- Kia/OPTIMA Sportswagon (JF)/2.0 GDI Hybrid/G4NG
- Kia/OPTIMA (JF)/2.0 GDI Hybrid/G4NG
Characteristics
| Car Make | Hyundai, Kia |
|---|---|
| Bearing Type | Thrust Bearings |
| Engine Code | Hyundai Nu |
Designed to withstand high RPM, temperatures and load, these high strength bearings are manufactured by ACL from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
