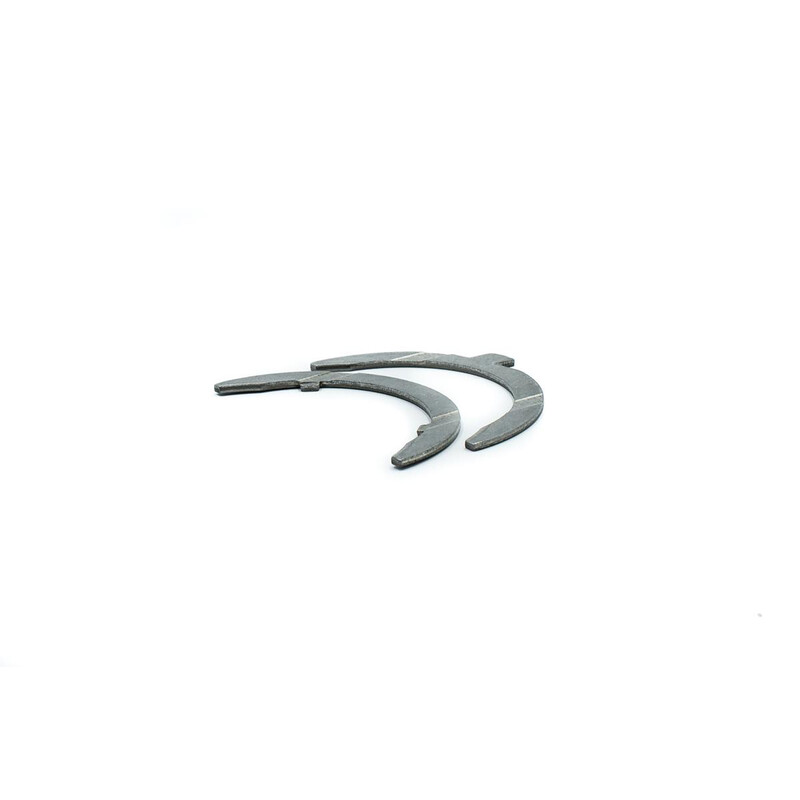

ACL Reinforced Thrust Bearings - Honda 1.5L, 1.8L, 2.0L (D15B, D15Z, A18A, A20A)
ACL Uprated Thrust Washers
- ACL trimetal thrust bearings
- To suit high RPM/load applications
- Offer reduced friction and operating temperatures
- Increased oil supply and overall lubrication
- To fit : Honda 1.5L, 1.8L, 2.0L (D15B, D15Z, A18A, A20A) - full application list below
- Made in Australia
Ask a question about this productEngineering Bulletin
ACL provides an official guide for clearance control and optimization, and guidelines for bearing size selection : download it here.
ACL Reinforced Thrust Bearings
Designed to withstand high RPM, temperatures and load, these high strength bearings are manufactured by ACL from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
Available on selected applications, Calico's CT-1 coating provides intermittent dry lubrication, unaffected by dust or dirt, which helps to reduce friction and abrasive wear. It is specially designed to withstand the extreme conditions of modern high-performance engines.
These bearings, also called thrust washers, are sold in standard sizes and, depending on the part number, in repair sizes.
Application List & Engine Codes
- Honda/PRELUDE II/SOHC/OHC 16v/A18A
- Honda/ACCORD III/SOHC/OHC 12v/A20A1
- Honda/ACCORD III/SOHC/OHC 12v/A20A2
- Honda/ACCORD III/SOHC/OHC 12v/A20A3
- Honda/ACCORD III/SOHC/OHC 12v/A20A4
- Honda/PRELUDE II/SOHC/OHC 12v/A20A4
- Honda/CIVIC IV/SOHC/OHC 16v/D15B1
- Honda/CIVIC II/SOHC/OHC 16v/D15B2
- Honda/CIVIC IV/SOHC/OHC 16v/D15B2
- Honda/CIVIC V/SOHC/OHC 16v/D15B2
- Honda/CONCERTO/SOHC/OHC 16v/D15B2
- Honda/CRX II/SOHC/OHC 16v/D15B2
- Honda/CIVIC II/SOHC/OHC 16v/D15B4
- Honda/CIVIC IV/SOHC/OHC 16v/D15B4
- Honda/CIVIC V/SOHC/OHC 16v/D15B4
- Honda/CRX II/SOHC/OHC 8v/D15B6
- Honda/CITY III/SOHC/OHC 16v/D15B7
- Honda/CIVIC IV/SOHC/OHC 16v/D15B7
- Honda/CITY/SOHC/OHC 16v/D15B7
- Honda/CIVIC V/SOHC/OHC 16v/D15B7
- Honda/CRX III/SOHC/OHC 16v/D15B7
- Honda/CIVIC V/SOHC/OHC 8v/D15B8
- Honda/CIVIC V/SOHC/OHC 16v/D15Z1
- Honda/CIVIC V/SOHC/OHC 16v/D15Z2
- Honda/CIVIC VI/DOHC 16v/D15Z3
- Honda/CIVIC VI/SOHC/OHC 16v/D15Z6
- Honda/CIVIC VI/SOHC/OHC 16v/D15Z8
- Honda/ACCORD II/SOHC/OHC 12v/ES2
- Honda/ACCORD II/SOHC/OHC 12v/ES3
- Honda/ACCORD II/SOHC/OHC 8v/ET1
- Honda/PRELUDE II/SOHC/OHC 8v/ET2
- Honda/PRELUDE II/SOHC/OHC 8v/ET3
- Honda/PRELUDE II/SOHC/OHC 8v/ET4
Characteristics
| Car Make | Honda |
|---|---|
| Bearing Type | Thrust Bearings |
| Engine Code | A18, A20, D15 |
Designed to withstand high RPM, temperatures and load, these high strength bearings are manufactured by ACL from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
