ACL Race Series Reinforced Main Bearings - GM V6 3.0L, 3.2L, 3.6L (HFV6)
ACL Race Series Main Bearings
- ACL trimetal main bearings
- To suit high RPM/load applications
- Offer reduced friction and operating temperatures
- Increased oil supply and overall lubrication
- To fit : GM V6 3.0L, 3.2L, 3.6L (HFV6) - full application list below
- Made in Australia
Ask a question about this productEngineering Bulletin
ACL provides an official guide for clearance control and optimization, and guidelines for bearing size selection : download it here.

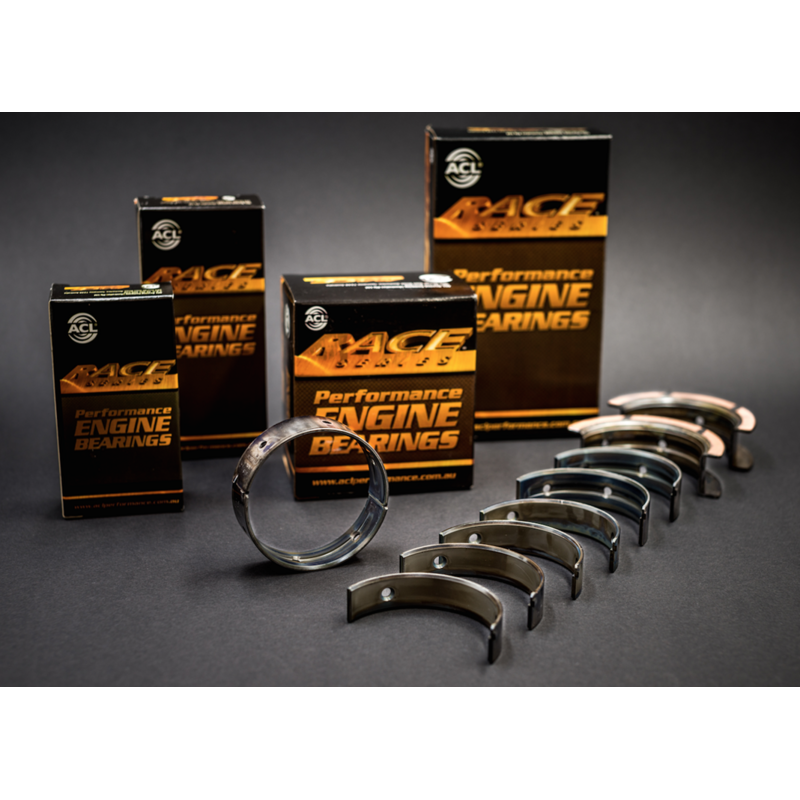

ACL Race Series Reinforced Main Bearings
Designed to withstand high RPM, temperatures and load, these ACL Race Series bearings are manufactured from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
To help engine builders optimise clearances for their specific applications, ACL provides a range of different bearing sizes for standard crankshaft journal sizes:
- H-STD: Bearing thickness is precision finished to provide a nominal clearance based on OEM specifications. Suitable for all applications using crankshafts finished to OEM specifications.
- HX-STD: Providing an extra .001" (0.025mm) of clearance over the H-STD size bearings. Suitable for high to extreme power applications where additional clearance is beneficial to part reliability.
- H-001 / H-.025: Providing a reduction of .001" (0.025mm) of clearance over the H-STD size bearings. Suitable for adjusting clearance to compensate for surface reconditioning (polishing) of crankshaft journals or the use of low viscosity lubricants.
Please note: there are also HD (with location dowel holes) and HXD (with location dowel holes and 0.025mm (0.001") extra clearance) part numbers, reserved for some connecting rod bearing applications only.
Application List & Engine Codes
- Alfa Romeo/159, Brera, Spider/DOHC 24v/JTS HFV6 3.2L
- Holden/Captiva CGII, Commodore VE, VEII/DOHC 24v SIDI/3.0L LF1 Alloytec (HFV6)
- Holden/Captiva CG/DOHC 24v/3.2L 10HMA Alloytec (HFV6)
- Holden/Caprice WM, WMII, Commodore VE, VEII, Statesman WM, Ute VE, VEII/DOHC 24v SIDI/3.6L LLT Alloytec (HFV6)
- Opel/Insignia, Signum, Vectra/DOHC 24v Turbo/Z28NEL
- Saab/9-3, 9-5/DOHC 24v Turbo/LP9 (HFV6)
- Holden/Adventra VZ/DOHC 24v/3.6L LY7 Alloytec (HFV6)
- Holden/Caprice WL/DOHC 24v/3.6L LY7 Alloytec (HFV6)
- Holden/Caprice WM/DOHC 24v/3.6L LY7 Alloytec (HFV6)
- Holden/Statesman WL, WM/DOHC 24v/3.6L LY7 Alloytec (HFV6)
- Holden/Statesman WM/DOHC 24v/3.6L LY7 Alloytec (HFV6)
- Holden/Colorado RC/DOHC 24v/3.6L LY7 Alloytec (HFV6)
- Holden/Commodore VE/DOHC 24v/3.6L LY7 Alloytec (HFV6)
- Holden/Commodore VZ/DOHC 24v/3.6L LY7 Alloytec (HFV6)
- Holden/Crewman VZ/DOHC 24v/3.6L LY7 Alloytec (HFV6)
- Holden/Rodeo RA/DOHC 24v/3.6L LY7 Alloytec (HFV6)
- Holden/Rodeo Ute VE/DOHC 24v/3.6L LY7 Alloytec (HFV6)
- Holden/Rodeo VZ/DOHC 24v/3.6L LY7 Alloytec (HFV6)
Characteristics
| Car Make | Alfa Romeo, Opel, Saab, Holden |
|---|---|
| Bearing Type | Main Bearings |
| Engine Code | HFV6 |
Designed to withstand high RPM, temperatures and load, these high strength bearings are manufactured by ACL from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
