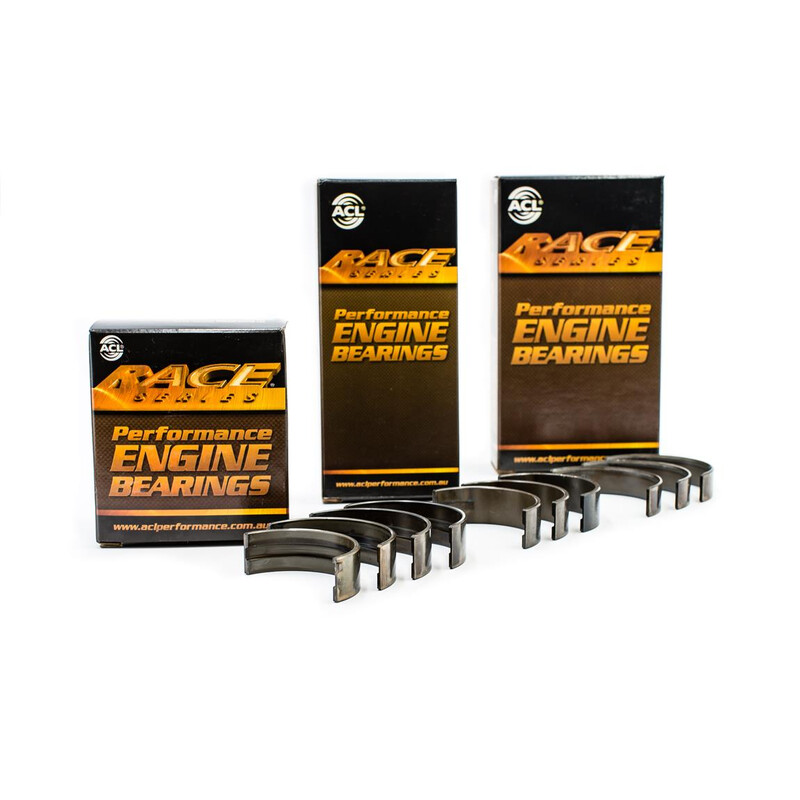

ACL Race Series Reinforced Main Bearings - Ford V8 302 5.0L Windsor
ACL Race Series Main Bearings
- ACL trimetal main bearings
- To suit high RPM/load applications
- Offer reduced friction and operating temperatures
- Increased oil supply and overall lubrication
- To fit : Ford V8 302 5.0L Windsor - full application list below
- Made in Australia
Ask a question about this productEngineering Bulletin
ACL provides an official guide for clearance control and optimization, and guidelines for bearing size selection : download it here.
ACL Race Series Reinforced Main Bearings
Designed to withstand high RPM, temperatures and load, these ACL Race Series bearings are manufactured from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
To help engine builders optimise clearances for their specific applications, ACL provides a range of different bearing sizes for standard crankshaft journal sizes:
- H-STD: Bearing thickness is precision finished to provide a nominal clearance based on OEM specifications. Suitable for all applications using crankshafts finished to OEM specifications.
- HX-STD: Providing an extra .001" (0.025mm) of clearance over the H-STD size bearings. Suitable for high to extreme power applications where additional clearance is beneficial to part reliability.
- H-001 / H-.025: Providing a reduction of .001" (0.025mm) of clearance over the H-STD size bearings. Suitable for adjusting clearance to compensate for surface reconditioning (polishing) of crankshaft journals or the use of low viscosity lubricants.
Please note: there are also HD (with location dowel holes) and HXD (with location dowel holes and 0.025mm (0.001") extra clearance) part numbers, reserved for some connecting rod bearing applications only.
Application List & Engine Codes
- Ford/Fairlane 1963/OHV 16v/260
- Ford/Fairlane ZA, Fairmont XR, Falcon XP, XR,� Galaxie, Mustang/OHV 16v/289
- Ford/Fairlane ZA, ZB, ZC, ZD, Fairmont XT, XW, Falcon XT, XW, XY, Mustang/OHV 16v/302 Windsor
- Ford/Bronco/OHV 16v/5.0L Windsor EFI
- Ford/F100/OHV 16v/5.0L Windsor EFI
- Ford/F150/OHV 16v/5.0L Windsor EFI
- Ford/Fairlane AU/OHV 16v/5.0L Windsor EFI
- Ford/Fairlane II/OHV 16v/5.0L Windsor EFI
- Ford/Fairlane III/OHV 16v/5.0L Windsor EFI
- Ford/Fairlane NB/OHV 16v/5.0L Windsor EFI
- Ford/Fairlane NC/OHV 16v/5.0L Windsor EFI
- Ford/Fairlane NF/OHV 16v/5.0L Windsor EFI
- Ford/Fairlane NL/OHV 16v/5.0L Windsor EFI
- Ford/Fairmont AU/OHV 16v/5.0L Windsor EFI
- Ford/Fairmont II/OHV 16v/5.0L Windsor EFI
- Ford/Fairmont III/OHV 16v/5.0L Windsor EFI
- Ford/Fairmont EB/OHV 16v/5.0L Windsor EFI
- Ford/Fairmont ED/OHV 16v/5.0L Windsor EFI
- Ford/Fairmont EF/OHV 16v/5.0L Windsor EFI
- Ford/Fairmont EL/OHV 16v/5.0L Windsor EFI
- Ford/Fairmont LTD/OHV 16v/5.0L Windsor EFI
- Ford/Falcon AU/OHV 16v/5.0L Windsor EFI
- Ford/Falcon II/OHV 16v/5.0L Windsor EFI
- Ford/Falcon III/OHV 16v/5.0L Windsor EFI
- Ford/Falcon EB/OHV 16v/5.0L Windsor EFI
- Ford/Falcon ED/OHV 16v/5.0L Windsor EFI
- Ford/Falcon EF/OHV 16v/5.0L Windsor EFI
- Ford/Falcon EL/OHV 16v/5.0L Windsor EFI
- Ford/Falcon LTD/OHV 16v/5.0L Windsor EFI
Characteristics
| Car Make | Ford |
|---|---|
| Bearing Type | Main Bearings |
| Engine Code | V8 302ci (4.9L) |
Designed to withstand high RPM, temperatures and load, these high strength bearings are manufactured by ACL from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
