ACL Race Series Reinforced Main Bearings - Ford 6 Cylinder 4.1L (Falcon, Cortina)
ACL Race Series Main Bearings
- ACL trimetal main bearings
- To suit high RPM/load applications
- Offer reduced friction and operating temperatures
- Increased oil supply and overall lubrication
- To fit : Ford 6 Cylinder 4.1L (Falcon, Cortina) - full application list below
- Made in Australia
Ask a question about this productEngineering Bulletin
ACL provides an official guide for clearance control and optimization, and guidelines for bearing size selection : download it here.

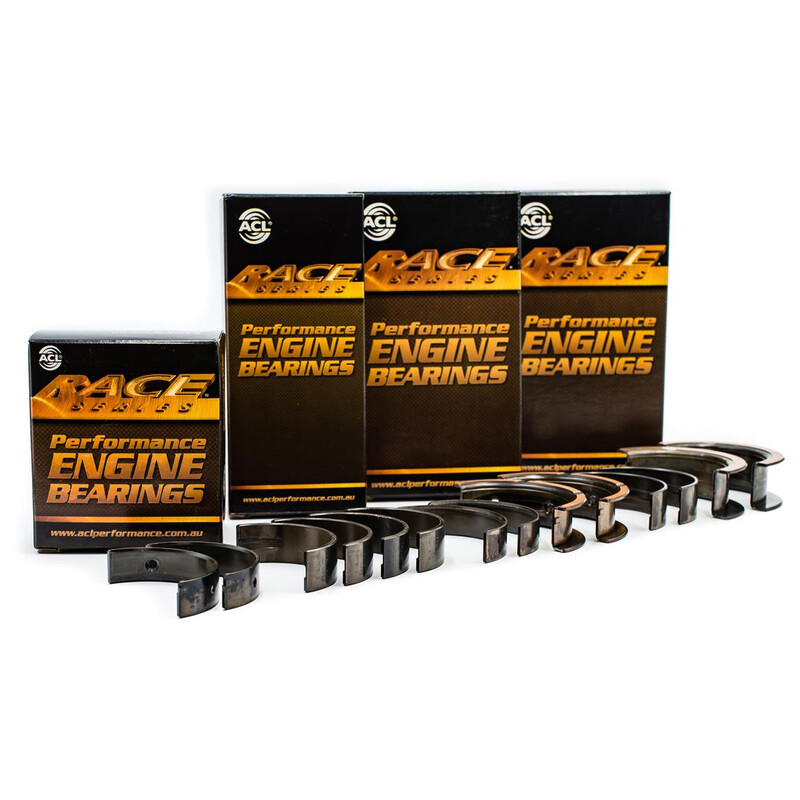

ACL Race Series Reinforced Main Bearings
Designed to withstand high RPM, temperatures and load, these ACL Race Series bearings are manufactured from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
To help engine builders optimise clearances for their specific applications, ACL provides a range of different bearing sizes for standard crankshaft journal sizes:
- H-STD: Bearing thickness is precision finished to provide a nominal clearance based on OEM specifications. Suitable for all applications using crankshafts finished to OEM specifications.
- HX-STD: Providing an extra .001" (0.025mm) of clearance over the H-STD size bearings. Suitable for high to extreme power applications where additional clearance is beneficial to part reliability.
- H-001 / H-.025: Providing a reduction of .001" (0.025mm) of clearance over the H-STD size bearings. Suitable for adjusting clearance to compensate for surface reconditioning (polishing) of crankshaft journals or the use of low viscosity lubricants.
Please note: there are also HD (with location dowel holes) and HXD (with location dowel holes and 0.025mm (0.001") extra clearance) part numbers, reserved for some connecting rod bearing applications only.
Application List & Engine Codes
- Ford/Cortina, Fairlane ZA, ZB, ZD, ZF, Fairmont XA, XB, XP, XR, Falcon XA, XB, XL, XM, XP, XR, XY/OHV 12v/200 Non X Flow
- Ford/Falcon EA/SOHC 12v/3.2L
- Ford/Cortina, F100, Fairmont XC, XD/OHV 12v/3.3L X Flow Cast Iron Head
- Ford/Fairlane NA, NC, Falcon EA, EB, LTD DA, DC/SOHC 12v/3.9L
- Ford/Fairlane NB, NC, Fairmont EB, ED, Falcon EB, ED, XF, LTD/SOHC 12v/4.0L EB-ED
- Ford/Cortina/OHV 12v/250 Non X Flow
- Ford/Fairlane ZD/OHV 12v/250 Non X Flow
- Ford/Fairlane ZF/OHV 12v/250 Non X Flow
- Ford/Fairlane ZG/OHV 12v/250 Non X Flow
- Ford/Fairmont XA/OHV 12v/250 Non X Flow
- Ford/Fairmont XB/OHV 12v/250 Non X Flow
- Ford/Fairmont XY/OHV 12v/250 Non X Flow
- Ford/Falcon XA/OHV 12v/250 Non X Flow
- Ford/Falcon XB/OHV 12v/250 Non X Flow
- Ford/Falcon XY/OHV 12v/250 Non X Flow
- Ford/Cortina/OHV 12v/3.3L X Flow Alloy Head
- Ford/Fairmont XD/OHV 12v/3.3L X Flow Alloy Head
- Ford/Fairmont XE/OHV 12v/3.3L X Flow Alloy Head
- Ford/Fairmont XF/OHV 12v/3.3L X Flow Alloy Head
- Ford/Falcon XD/OHV 12v/3.3L X Flow Alloy Head
- Ford/Falcon XE/OHV 12v/3.3L X Flow Alloy Head
- Ford/Falcon XF/OHV 12v/3.3L X Flow Alloy Head
- Ford/Fairlane NF/SOHC 12v/4.0L EF-EL
- Ford/Fairlane NL/SOHC 12v/4.0L EF-EL
- Ford/Fairmont EF/SOHC 12v/4.0L EF-EL
- Ford/Fairmont EL/SOHC 12v/4.0L EF-EL
- Ford/Fairmont XR6/SOHC 12v/4.0L EF-EL
- Ford/Fairmont Longreach Ute/SOHC 12v/4.0L EF-EL
- Ford/Falcon EF/SOHC 12v/4.0L EF-EL
- Ford/Falcon EL/SOHC 12v/4.0L EF-EL
- Ford/Falcon XR6/SOHC 12v/4.0L EF-EL
- Ford/Longreach Ute/SOHC 12v/4.0L EF-EL
- Ford/Fairlane ZJ/OHV 12v/4.1L X Flow Alloy Head (250 X Flow)
- Ford/Fairlane ZK/OHV 12v/4.1L X Flow Alloy Head (250 X Flow)
- Ford/Fairlane ZL/OHV 12v/4.1L X Flow Alloy Head (250 X Flow)
- Ford/Fairmont XD/OHV 12v/4.1L X Flow Alloy Head (250 X Flow)
- Ford/Fairmont XE/OHV 12v/4.1L X Flow Alloy Head (250 X Flow)
- Ford/Fairmont XF/OHV 12v/4.1L X Flow Alloy Head (250 X Flow)
- Ford/Fairmont LTD/OHV 12v/4.1L X Flow Alloy Head (250 X Flow)
- Ford/Falcon XD/OHV 12v/4.1L X Flow Alloy Head (250 X Flow)
- Ford/Falcon XE/OHV 12v/4.1L X Flow Alloy Head (250 X Flow)
- Ford/Falcon XF/OHV 12v/4.1L X Flow Alloy Head (250 X Flow)
- Ford/Falcon LTD/OHV 12v/4.1L X Flow Alloy Head (250 X Flow)
- Ford/Cortina/OHV 12v/4.1L X Flow Cast Iron Head (250 X Flow)
- Ford/Fairlane ZH/OHV 12v/4.1L X Flow Cast Iron Head (250 X Flow)
- Ford/Fairlane ZJ/OHV 12v/4.1L X Flow Cast Iron Head (250 X Flow)
- Ford/Fairmont XC/OHV 12v/4.1L X Flow Cast Iron Head (250 X Flow)
- Ford/Fairmont XD/OHV 12v/4.1L X Flow Cast Iron Head (250 X Flow)
- Ford/Fairmont LTD/OHV 12v/4.1L X Flow Cast Iron Head (250 X Flow)
- Ford/Falcon XC/OHV 12v/4.1L X Flow Cast Iron Head (250 X Flow)
- Ford/Falcon XD/OHV 12v/4.1L X Flow Cast Iron Head (250 X Flow)
- Ford/Falcon LTD/OHV 12v/4.1L X Flow Cast Iron Head (250 X Flow)
Characteristics
| Car Make | Ford |
|---|---|
| Bearing Type | Main Bearings |
| Engine Code | Ford 4.1L |
Designed to withstand high RPM, temperatures and load, these high strength bearings are manufactured by ACL from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
