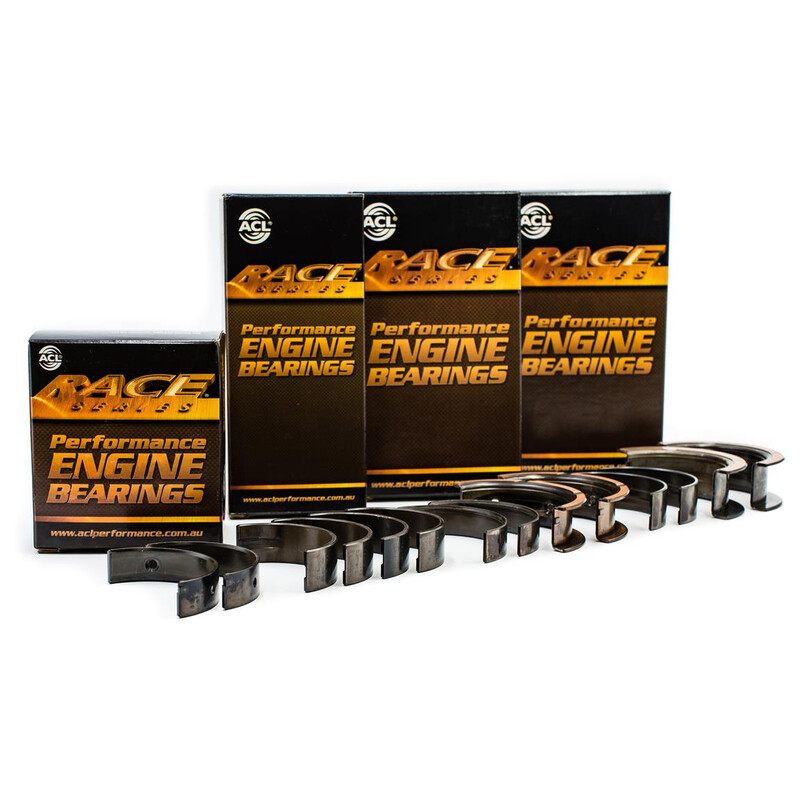

ACL Race Series Reinforced Main Bearings - Ford 4.0L Barra incl. Turbo
ACL Race Series Main Bearings
- ACL trimetal main bearings
- To suit high RPM/load applications
- Offer reduced friction and operating temperatures
- Increased oil supply and overall lubrication
- To fit : Ford 4.0L Barra incl. Turbo - full application list below
- Made in Australia
Ask a question about this productEngineering Bulletin
ACL provides an official guide for clearance control and optimization, and guidelines for bearing size selection : download it here.
ACL Race Series Reinforced Main Bearings
Designed to withstand high RPM, temperatures and load, these ACL Race Series bearings are manufactured from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
To help engine builders optimise clearances for their specific applications, ACL provides a range of different bearing sizes for standard crankshaft journal sizes:
- H-STD: Bearing thickness is precision finished to provide a nominal clearance based on OEM specifications. Suitable for all applications using crankshafts finished to OEM specifications.
- HX-STD: Providing an extra .001" (0.025mm) of clearance over the H-STD size bearings. Suitable for high to extreme power applications where additional clearance is beneficial to part reliability.
- H-001 / H-.025: Providing a reduction of .001" (0.025mm) of clearance over the H-STD size bearings. Suitable for adjusting clearance to compensate for surface reconditioning (polishing) of crankshaft journals or the use of low viscosity lubricants.
Please note: there are also HD (with location dowel holes) and HXD (with location dowel holes and 0.025mm (0.001") extra clearance) part numbers, reserved for some connecting rod bearing applications only.
Application List & Engine Codes
- Ford/Fairlane BA, BF, Falcon BA, BF, FG, Ute BA, BF, FG, Territory SX, SY, SZ/DOHC 24v/4.0L Barra
- Ford/Falcon BA, BF, FG, Ute BA, BF, FG, Territory SY, FPV F6, F6-E, F6 Tornado, F6 Typhoon, F6X/DOHC 24V Turbo/4.0L Barra Turbo
- Ford/Falcon BA/DOHC 24v/4.0L E-Gas EFI
- Ford/Fairlane NF/SOHC 12v/4.0L EF-EL
- Ford/Fairlane NL/SOHC 12v/4.0L EF-EL
- Ford/Fairmont EF/SOHC 12v/4.0L EF-EL
- Ford/Fairmont EL/SOHC 12v/4.0L EF-EL
- Ford/Fairmont XR6/SOHC 12v/4.0L EF-EL
- Ford/Fairmont Longreach Ute/SOHC 12v/4.0L EF-EL
- Ford/Falcon EF/SOHC 12v/4.0L EF-EL
- Ford/Falcon EL/SOHC 12v/4.0L EF-EL
- Ford/Falcon XR6/SOHC 12v/4.0L EF-EL
- Ford/Longreach Ute/SOHC 12v/4.0L EF-EL
- Ford/Fairlane AU/SOHC 12v/4.0L Intech
- Ford/Fairlane II/SOHC 12v/4.0L Intech
- Ford/Fairlane III/SOHC 12v/4.0L Intech
- Ford/Fairlane XR6/SOHC 12v/4.0L Intech
- Ford/Fairmont AU/SOHC 12v/4.0L Intech
- Ford/Fairmont II/SOHC 12v/4.0L Intech
- Ford/Fairmont III/SOHC 12v/4.0L Intech
- Ford/Fairmont XR6/SOHC 12v/4.0L Intech
- Ford/Falcon AU/SOHC 12v/4.0L Intech
- Ford/Falcon II/SOHC 12v/4.0L Intech
- Ford/Falcon III/SOHC 12v/4.0L Intech
- Ford/Falcon XR6/SOHC 12v/4.0L Intech
Characteristics
| Car Make | Ford |
|---|---|
| Bearing Type | Main Bearings |
| Engine Code | Barra |
Designed to withstand high RPM, temperatures and load, these high strength bearings are manufactured by ACL from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
