ACL Race Series Reinforced Main Bearings - Buick V6 3.8L Ecotec
ACL Race Series Main Bearings
- ACL trimetal main bearings
- To suit high RPM/load applications
- Offer reduced friction and operating temperatures
- Increased oil supply and overall lubrication
- To fit : Buick V6 3.8L Ecotec - full application list below
- Made in Australia
Ask a question about this productEngineering Bulletin
ACL provides an official guide for clearance control and optimization, and guidelines for bearing size selection : download it here.

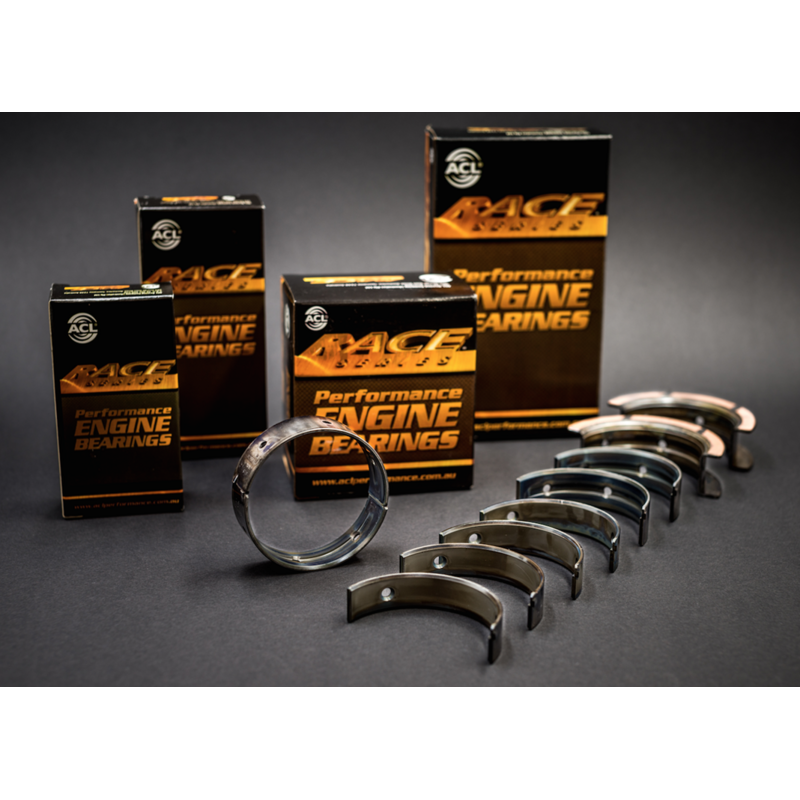

ACL Race Series Reinforced Main Bearings
Designed to withstand high RPM, temperatures and load, these ACL Race Series bearings are manufactured from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
To help engine builders optimise clearances for their specific applications, ACL provides a range of different bearing sizes for standard crankshaft journal sizes:
- H-STD: Bearing thickness is precision finished to provide a nominal clearance based on OEM specifications. Suitable for all applications using crankshafts finished to OEM specifications.
- HX-STD: Providing an extra .001" (0.025mm) of clearance over the H-STD size bearings. Suitable for high to extreme power applications where additional clearance is beneficial to part reliability.
- H-001 / H-.025: Providing a reduction of .001" (0.025mm) of clearance over the H-STD size bearings. Suitable for adjusting clearance to compensate for surface reconditioning (polishing) of crankshaft journals or the use of low viscosity lubricants.
Please note: there are also HD (with location dowel holes) and HXD (with location dowel holes and 0.025mm (0.001") extra clearance) part numbers, reserved for some connecting rod bearing applications only.
Application List & Engine Codes
- Holden/Commodore VN, VP, VR, Caprice VR, Statesman VQII, VR, Ute VG, VP, VR, HSV LS VP, Sport VP, SV3800 VP, Toyota Lexcen VN, VP, VR/OHV 12v/3.8 Buick
- Holden/Commodore VS, VT, VX, VY, VYII, Caprice VS, WH, Monaro V2, Statesman VS, WH, WHII, WK, HSV Grange WH, XU6 VT, VX/OHV 12v/3.8 Buick Ecotec Supercharged
- Toyota/Lexcen VN, VP, VR/OHV 12v/Holden 3.8 Buick
- Toyota/Lexcen T4, T5/OHV 12v/Holden 3.8 Buick Ecotec
- Holden/Commodore VS/OHV 12v/3.8 Buick Ecotec
- Holden/Commodore VT/OHV 12v/3.8 Buick Ecotec
- Holden/Commodore VX/OHV 12v/3.8 Buick Ecotec
- Holden/Commodore VY/OHV 12v/3.8 Buick Ecotec
- Holden/Commodore VYII/OHV 12v/3.8 Buick Ecotec
- Holden/Crewman VYII/OHV 12v/3.8 Buick Ecotec
- Holden/Caprice VS/OHV 12v/3.8 Buick Ecotec
- Holden/Caprice WH/OHV 12v/3.8 Buick Ecotec
- Holden/Caprice WHII/OHV 12v/3.8 Buick Ecotec
- Holden/Caprice WK/OHV 12v/3.8 Buick Ecotec
- Holden/Caprice Ute VS/OHV 12v/3.8 Buick Ecotec
- Holden/Caprice VU/OHV 12v/3.8 Buick Ecotec
- Holden/Caprice VY/OHV 12v/3.8 Buick Ecotec
- Holden/Caprice VYII/OHV 12v/3.8 Buick Ecotec
- Holden/Toyota Lexcen T4/OHV 12v/3.8 Buick Ecotec
- Holden/Toyota Lexcen T5/OHV 12v/3.8 Buick Ecotec
Characteristics
| Car Make | Holden, Toyota, Buick |
|---|---|
| Bearing Type | Main Bearings |
| Engine Code | 3.8L Ecotec |
Designed to withstand high RPM, temperatures and load, these high strength bearings are manufactured by ACL from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
