ACL Duraglide Reinforced Rod Bearings - Ford Duratorq 2.0L, 2.2L, 2.4L (Ranger, Transit)

Engineering Bulletin

ACL provides an official guide for clearance control and optimization, and guidelines for bearing size selection : download it here.

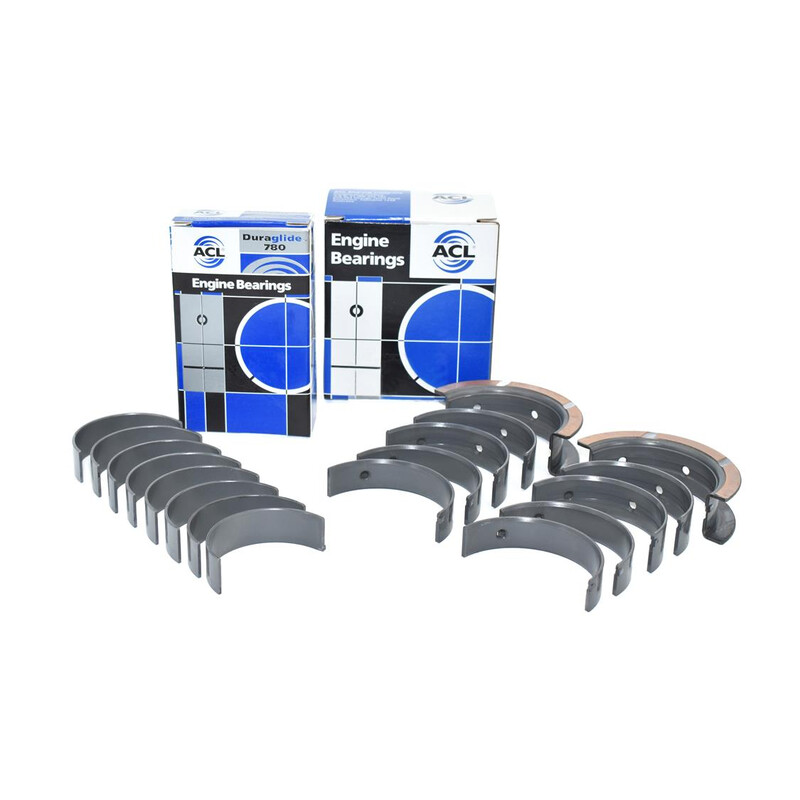

ACL Duraglide Reinforced Rod Bearings

Designed to withstand higher loads than OEM parts, these ACL Duraglide bearings are made from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.

To help engine builders optimise clearances for their specific applications, ACL provides a range of different bearing sizes for standard crankshaft journal sizes :

• STD: Bearing thickness is precision finished to provide a nominal clearance based on OEM specifications. Suitable for all applications using crankshafts finished to OEM specifications.
• 001 / .025: Providing a reduction of .001" (0.025mm) of clearance over the STD size bearings. Suitable for adjusting clearance to compensate for surface reconditioning (polishing) of crankshaft journals or the use of low viscosity lubricants.

Application List & Engine Codes

• Ford/TOURNEO/2.0 DI 16V/ABFA
• Ford/TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)/2.0 DI (F_E_, F_F_, F_G_)/ABFA
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.0 DI (F_E_, F_F_)/ABFA
• Ford/TRANSIT TOURNEO Bus (FC_ _)/2.0/ABFA
• Ford/TRANSIT Van (FA_ _)/2.0 DI (FAE_, FAF_, FAG_)/ABFA
• Ford/MONDEO IV (BA7)/2.0 TDCi/AZBA
• Ford/MONDEO IV Saloon (BA7)/2.0 TDCi/AZBA
• Ford/MONDEO IV Turnier (BA7)/2.0 TDCi/AZBA
• Ford/MONDEO Hatchback (MA, MB, MC)/2.0 TDCi/AZBA
• Ford/MONDEO Saloon (MA, MB)/2.0 TDCi/AZBA
• Ford/TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)/2.0 DI (F_E_, F_F_, F_G_)/D3FA
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.0 DI (F_E_, F_F_)/D3FA
• Ford/TRANSIT TOURNEO Bus (FC_ _)/2.0/D3FA
• Ford/TRANSIT Van (FA_ _)/2.0 DI (FAE_, FAF_, FAG_)/D3FA
• Ford/MONDEO III (B5Y)/2.0 16V DI / TDDi / TDCi/D5BA
• Ford/MONDEO III Saloon (B4Y)/2.0 16V DI / TDDi / TDCi/D5BA
• Ford/MONDEO III Turnier (BWY)/2.0 16V DI / TDDi / TDCi/D5BA
• Ford/MONDEO III (B5Y)/2.0 16V TDDi / TDCi/D6BA
• Ford/MONDEO III Saloon (B4Y)/2.0 16V TDDi / TDCi/D6BA
• Ford/MONDEO III Turnier (BWY)/2.0 16V TDDi / TDCi/D6BA
• Ford/TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)/2.0 DI (F_E_, F_F_, F_G_)/F3FA
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.0 DI (F_E_, F_F_)/F3FA
• Ford/TRANSIT Van (FA_ _)/2.0 DI (FAE_, FAF_, FAG_)/F3FA
• Ford/TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)/2.0 TDCi (F_F_, F_E_, F_G_)/FIFA
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.0 TDCi (F_E_, F_F_)/FIFA
• Ford/TRANSIT TOURNEO Bus (FC_ _)/2.0/FIFA
• Ford/TRANSIT Van (FA_ _)/2.0 TDCi/FIFA
• Ford/MONDEO III (B5Y)/2.0 TDCi/FMBA
• Ford/MONDEO III Saloon (B4Y)/2.0 TDCi/FMBA
• Ford/MONDEO III Turnier (BWY)/2.0 TDCi/FMBA
• Jaguar/X-TYPE I Estate (X400)/2.0 D/FMBA
• Jaguar/X-TYPE I (X400)/2.0 D/FMBA
• Ford/MONDEO III (B5Y)/2.0 16V TDDi / TDCi/HJBA
• Ford/MONDEO III Saloon (B4Y)/2.0 16V TDDi / TDCi/HJBA
• Ford/MONDEO III Turnier (BWY)/2.0 16V TDDi / TDCi/HJBA
• Ford/MONDEO III (B5Y)/2.0 16V TDDi / TDCi/HJBB
• Ford/MONDEO III Saloon (B4Y)/2.0 16V TDDi / TDCi/HJBB
• Ford/MONDEO III Turnier (BWY)/2.0 16V TDDi / TDCi/HJBB
• Ford/MONDEO III (B5Y)/2.0 16V TDDi / TDCi/HJBC
• Ford/MONDEO III Saloon (B4Y)/2.0 16V TDDi / TDCi/HJBC
• Ford/MONDEO III Turnier (BWY)/2.0 16V TDDi / TDCi/HJBC
• Ford/MONDEO IV (BA7)/2.0 TDCi/LPBA
• Ford/MONDEO IV Saloon (BA7)/2.0 TDCi/LPBA
• Ford/MONDEO IV Turnier (BA7)/2.0 TDCi/LPBA
• Ford/MONDEO III (B5Y)/2.0 TDCi/N7BA
• Ford/MONDEO III Saloon (B4Y)/2.0 TDCi/N7BA
• Ford/MONDEO III Turnier (BWY)/2.0 TDCi/N7BA
• Ford/MONDEO III (B5Y)/2.0 TDCi/N7BB
• Ford/MONDEO III Saloon (B4Y)/2.0 TDCi/N7BB
• Ford/MONDEO III Turnier (BWY)/2.0 TDCi/N7BB
• Ford/MONDEO III (B5Y)/2.0 16V DI / TDDi / TDCi/SDBA
• Ford/MONDEO III Saloon (B4Y)/2.0 16V DI / TDDi / TDCi/SDBA
• Ford/MONDEO III Turnier (BWY)/2.0 16V DI / TDDi / TDCi/SDBA
• Ford/TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)/2.4 DI (F_B_, F_C_, F_A_)/D2FA
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.4 DI (F_A_, F_B_, F_C_, F_D_)/D2FA
• Ford/TRANSIT Van (FA_ _)/2.4 DI (FAA_, FAB_, FAC_, FAD_)/D2FA
• Ford/TRANSIT Bus (VH, VJ)/2.4 D/D2FA
• Ford/TRANSIT Platform/Chassis (VH, VJ)/2.4 TD/D2FA
• Ford/TRANSIT Van (VH, VJ)/2.4 TD/D2FA
• Ford/TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)/2.4 DI (F_B_, F_C_, F_A_)/D2FB
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.4 DI (F_A_, F_B_, F_C_, F_D_)/D2FB
• Ford/TRANSIT Van (FA_ _)/2.4 DI (FAA_, FAB_, FAC_, FAD_)/D2FB
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.4 DI (F_A_, F_B_, F_C_, F_D_)/D2FE
• Ford/TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)/2.4 DI RWD (F_B_, F_C_, F_A_)/D4FA
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.4 DI (F_A_, F_B_, F_C_, F_D_)/D4FA
• Ford/TRANSIT Van (FA_ _)/2.4 DI RWD (FAA_, FAB_, FAC_, FAD_)/D4FA
• Ford/TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)/2.4 TDE (F_C_, F_B_, F_A_)/DOFA
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.4 TDE/DOFA
• Ford/TRANSIT Van (FA_ _)/2.4 TDE/DOFA
• Ford/TRANSIT Bus (VH, VJ)/2.4 D/DOFA
• Ford/TRANSIT Platform/Chassis (VH, VJ)/2.4 TD/DOFA
• Ford/TRANSIT Van (VH, VJ)/2.4 TD/DOFA
• Ford/TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)/2.4 DI RWD (F_B_, F_C_)/F4FA
• Ford/TRANSIT Platform/Chassis (FM_ _, FN_ _)/2.4 DI (F_A_, F_B_, F_C_, F_D_)/F4FA
• Ford/TRANSIT Van (FA_ _)/2.4 DI RWD (FAA_, FAB_, FAC_, FAD_)/F4FA
• Ford/TRANSIT Van (FA_ _)/2.4 TD/F4FA
• Ford/TRANSIT Bus (VH, VJ)/2.4 D/F4FA
• Ford/TRANSIT Platform/Chassis (VH, VJ)/2.4 TD/F4FA
• Mazda/BT-50 II pick-up (B22, B32, UP, UR)/2.2 MZ-CD/P4-AT
• Mazda/BT-50 II pick-up (B22, B32, UP, UR)/2.2 MZ-CD 4WD/P4-AT
• Ford/RANGER pick-up (PX)/2.2 TDdi (PX)/P4-AT
• Ford/RANGER pick-up (PX)/2.2 TDdi (PXII, PXIII)/P4-AT
