ACL Aluglide Main Bearings - Toyota 2K, 3K, 4K, 5K
ACL Aluglide Main Bearings
- OEM type ACL main bearings
- Features in line with standard requirements
- To fit : Toyota 2K, 3K, 4K, 5K - full application list below
- Made in Australia
Ask a question about this productEngineering Bulletin
ACL provides an official guide for clearance control and optimization, and guidelines for bearing size selection : download it here.

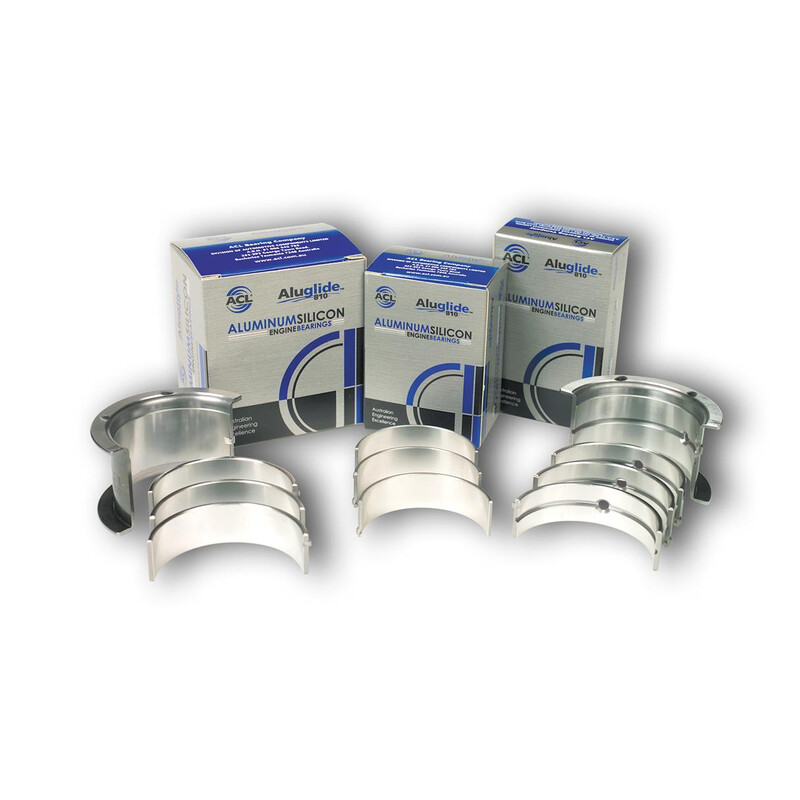

ACL Aluglide Main Bearings
These ACL Aluglide bearings are made from an aluminium-tin-silicon metal alloy and are of the same quality as the OEM parts. They are particularly recommended when rebuilding a stock engine.
To help engine builders optimise clearances for their specific applications, ACL provides a range of different bearing sizes for standard crankshaft journal sizes :
- STD: Bearing thickness is precision finished to provide a nominal clearance based on OEM specifications. Suitable for all applications using crankshafts finished to OEM specifications.
- 001 / .025: Providing a reduction of .001" (0.025mm) of clearance over the STD size bearings. Suitable for adjusting clearance to compensate for surface reconditioning (polishing) of crankshaft journals or the use of low viscosity lubricants.
Application List & Engine Codes
- Toyota/1000 1.0/OHV 8v/2K
- Toyota/1000 Estate 1.0/OHV 8v/2K
- Toyota/Starlet 1.0/OHV 8v/2K
- Toyota/Starlet 1000 1.0/OHV 8v/2K
- Toyota/Starlet 1000 Kombi 1.0/OHV 8v/2K
- Toyota/Starlet Estate 1.0/OHV 8v/2K
- Toyota/Corolla Estate 1.2/OHV 8v/3K
- Toyota/Corolla 1.3/OHV 8v/4K
- Toyota/Corolla Estate 1.3/OHV 8v/4K
- Toyota/Corolla Liftback 1.3/OHV 8v/4K
- Toyota/Liteace Van 1.3/OHV 8v/4K
- Toyota/Liteace Wagon 1.3/OHV 8v/4K
- Toyota/Starlet 1.3/OHV 8v/4K
- Toyota/Corolla Estate 1.3/OHV 8v/4K-C
- Toyota/Liteace Van 1.3/OHV 8v/4K-C
- Toyota/Liteace Bus 1.5/OHV 8v/5K
- Toyota/Litace Bus 1.5/OHV 8v/5K
- Toyota/Litace Van 1.5/OHV 8v/5K
Characteristics
| Car Make | Toyota |
|---|---|
| Bearing Type | Main Bearings |
| Engine Code | 2K, 3K, 4K, 5K |
Designed to withstand high RPM, temperatures and load, these high strength bearings are manufactured by ACL from 3 layers of hardened steel, copper and nickel. This "trimetal" composition substantially lowers friction, and thus reduces the operating temperatures while providing superior lubrication.
