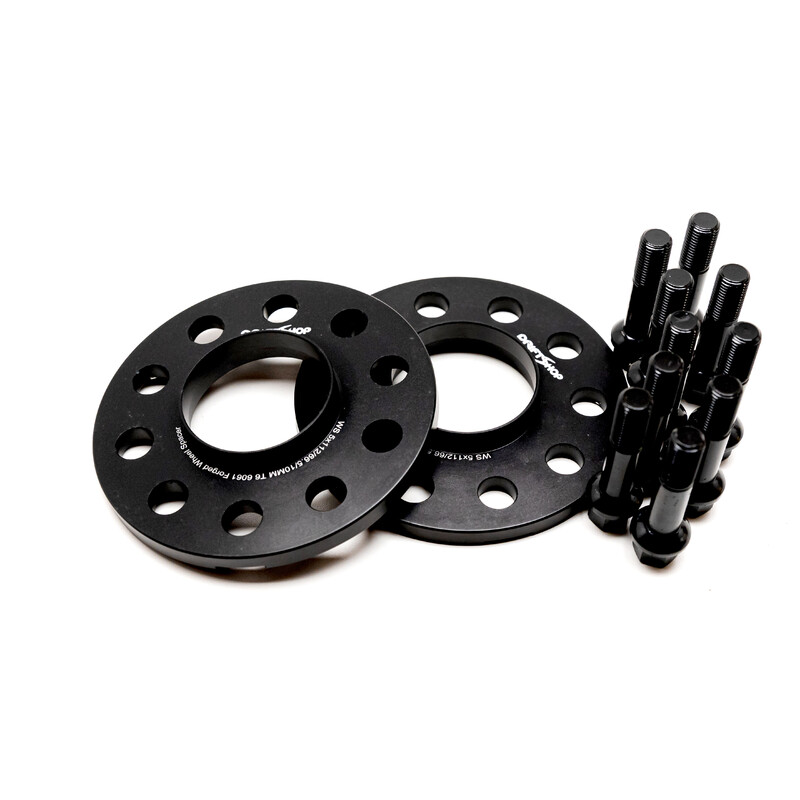

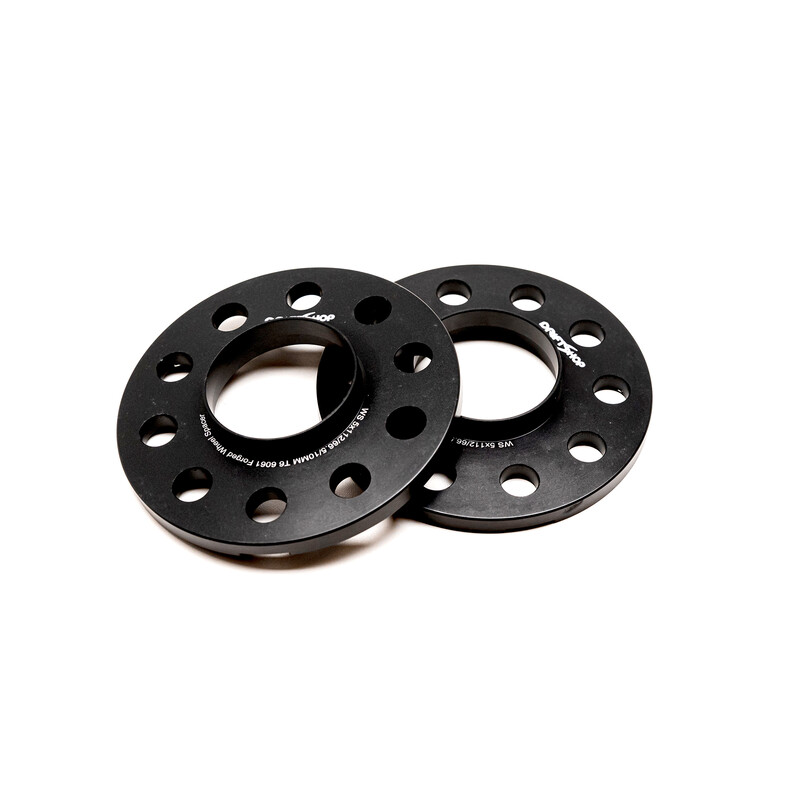

5x112 Hubcentric Wheel Spacers - 10 mm (66.5)

How to choose the correct bolts for my car ?

Attention : when using these spacers, longer bolts are required (see options above). For your safety, do not use original wheel bolts ! To choose the right bolts for your application, three parameters must be considered:

• Thread: this refers to the diameter (M12, M14) and the pitch of the bolt (1.25, 1.50). Find your vehicle in the list of applications below to check the thread size you need. Some Mercedes models even have M15 threads.

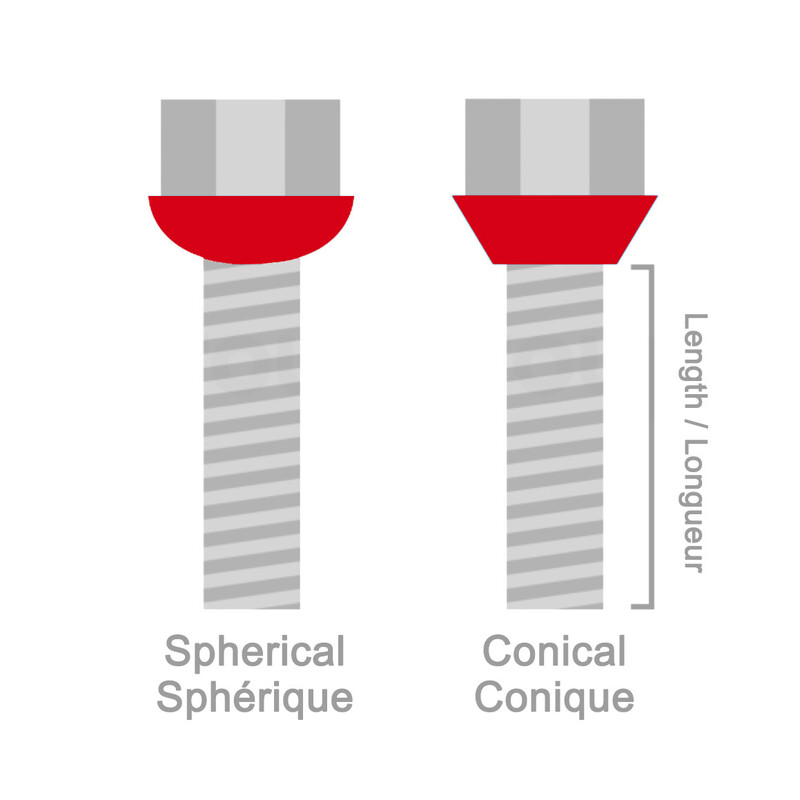

• Length: the length of the new bolts must be at least equal to the length of the old bolts + the thickness of the wheel spacer. Caution: bolts that are too short may loosen, while bolts that are too long may not fit or damage hub components. Given the wide range of models and any modifications already made to your vehicle, we recommend removing an original bolt to calculate the new length you need. The length is always measured under the head (see photo above).
• Seat: the bolt seat can be conical or spherical (see photo above). This is the part of the bolt that is in contact with the wheel. Mercedes often have a spherical seat as standard, but if you've had your wheels replaced, you'll likely need a conical seat. Again, remove a bolt from the vehicle to make sure.

List of Compatible Vehicles (non-exhaustive)

• Audi A4 (2019+) - M14x1.50 bolts
• Audi A4 B8 (07-15) - M14x1.50 bolts
• Audi A4 B9 (15-19) - M14x1.50 bolts
• Audi A5 (07-16) - M14x1.50 bolts
• Audi A5 (2016+) - M14x1.50 bolts
• Audi A6 (11-14) - M14x1.50 bolts
• Audi A6 (14-18) - M14x1.50 bolts
• Audi A6 C8 (2018+) - M14x1.50 bolts
• Audi A7 4G (10-17) - M14x1.50 bolts
• Audi A7 (2018+) - M14x1.50 bolts
• Audi A8 4H (10-18) - M14x1.50 bolts
• Audi A8 D5 (2018+) - M14x1.50 bolts
• Audi Allroad (2012+) - M14x1.50 bolts
• Audi Q5 (08-16) - M14x1.50 bolts
• Audi Q5 (2017+) - M14x1.50 bolts
• Audi Q7 (2015+) - M14x1.50 bolts
• Audi Q8 (2018+) - M14x1.50 bolts
• Audi RS5 (10-16) - M14x1.50 bolts
• Audi RS5 F5 (2017+) - M14x1.50 bolts
• Audi RS6 C7 (13-18) - M14x1.50 bolts
• Audi RS6 C8 (2019+) - M14x1.50 bolts
• Audi RS7 Sportback (13-18) - M14x1.50 bolts
• Audi RS7 Sportback (2019+) - M14x1.50 bolts
• Audi S4 (09-15) - M14x1.50 bolts
• Audi S4 (2016+) - M14x1.50 bolts
• Audi S5 (07-6) - M14x1.50 bolts
• Audi S5 (2017+) - M14x1.50 bolts
• Audi S6 (11-18) - M14x1.50 bolts
• Audi S6 C8 (2019+) - M14x1.50 bolts
• Audi S7 (11-18) - M14x1.50 bolts
• Audi S7 (2019+) - M14x1.50 bolts
• Audi S8 4H (11-18) - M14x1.50 bolts
• Audi S8 (2019+) - M14x1.50 bolts
• BMW 2 Series F45 / F46 (14-21) - M14x1.25 bolts
• BMW 2 Series Active Tourer U06 (2022+) - M14x1.25 bolts
• BMW 2 Series Gran Tourer F46 (15-23) - M14x1.25 bolts
• BMW 5 Series G30 & G31 (2017+) - M14x1.25 bolts
• BMW 6 Series G32 (18-23) - M14x1.25 bolts
• BMW 7 Series G11 & G12 (2015+) - M14x1.25 bolts
• BMW i3 (2013+) - M14x1.25 bolts
• BMW i8 (2014+) - M14x1.25 bolts
• BMW X3 G01 (2018+) - M14x1.25 bolts
• Mercedes C Class 450 AMG (2015+) - M14x1.50 bolts
• Mercedes C Class C205 (2015-2021) - M14x1.50 bolts
• Mercedes C Class W205 (2013-2021) - M14x1.50 bolts
• Mercedes GLA (2013+) - M14x1.50 bolts
• Mercedes Vito W640 (2013+) - M14x1.50 bolts
• Mini Cooper / Cooper S (2014+) - M14x1.25 bolts
• Mini One (2014+) - M14x1.25 bolts
• Porsche Macan (2014+) - M14x1.50 bolts with spherical (ball) seat
• Ssangyong Tivoli (2015+) - M12x1.50 bolts
• Toyota GR Supra A90 (2019+) - M14x1.25 bolts

When using these spacers, longer bolts are required (see options above). For your safety, do not use original wheel bolts !

Warning: check the height of the hub (hubcentric flange) on your car. These spacers can only be installed if the hub height does not exceed 8 mm.
