5x112 Hubcentric "Slip On" Wheel Spacers - 10 mm (CB 66.6)

Technical Note

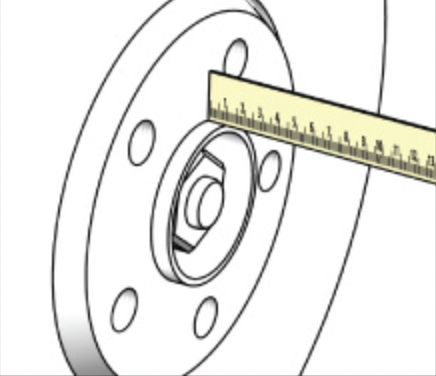

These 10 mm thick wheel spacers require special attention to guarantee their installation. For technical reasons, they cannot be installed on vehicles where the hub height exceeds 13 mm. If in doubt, take the time to double check on your vehicle (see example diagram on the left) !

How to choose the correct bolts for my car ?

Attention : when using these spacers, longer bolts are required (see options above). For your safety, do not use original wheel bolts ! To choose the right bolts for your application, three parameters must be considered:

• Thread: this refers to the diameter (M12, M14) and the pitch of the bolt (1.25, 1.50). Find your vehicle in the list of applications below to check the thread size you need. Some Mercedes models even have M15 threads.

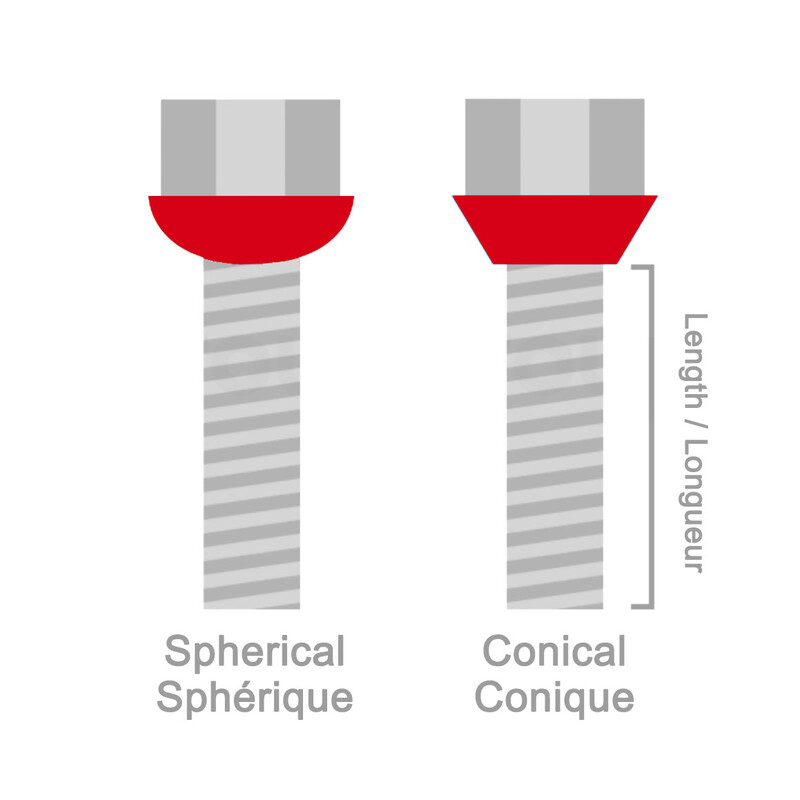

• Length: the length of the new bolts must be at least equal to the length of the old bolts + the thickness of the wheel spacer. Caution: bolts that are too short may loosen, while bolts that are too long may not fit or damage hub components. Given the wide range of models and any modifications already made to your vehicle, we recommend removing an original bolt to calculate the new length you need. The length is always measured under the head (see photo above).
• Seat: the bolt seat can be conical or spherical (see photo above). This is the part of the bolt that is in contact with the wheel. Mercedes often have a spherical seat as standard, but if you've had your wheels replaced, you'll likely need a conical seat. Again, remove a bolt from the vehicle to make sure.

List of Compatible Vehicles (non-exhaustive)

• Alpina B3 (2019+) - M14x1.25 bolts
• Alpina B5 (2017+) - M14x1.25 bolts
• Alpina B7 (2019+) - M14x1.25 bolts
• Alpina XB7 (2020+) - M14x1.25 bolts
• Alpina XD3 (2018+) - M14x1.25 bolts
• Alpina XD4 (2018+) - M14x1.25 bolts
• Audi A4 (2007-2015) - M14x1.50 bolts
• Audi A4 (2015-2019) - M14x1.50 bolts
• Audi A4 (2019+) - M14x1.50 bolts
• Audi A5 (2007-2016) - M14x1.50 bolts
• Audi A5 Sportback (2009-2016) - M14x1.50 bolts
• Audi A5 (2016+) - M14x1.50 bolts
• Audi A6 (2011-2014) - M14x1.50 bolts
• Audi A6 (2014-2018) - M14x1.50 bolts
• Audi A6 (2018+) - M14x1.50 bolts
• Audi A7 (2010-2017) - M14x1.50 bolts
• Audi A7 (2018+) - M14x1.50 bolts
• Audi A8 (2010-2018) - M14x1.50 bolts
• Audi A8 (2018+) - M14x1.50 bolts
• Audi Allroad (2012+) - M14x1.50 bolts
• Audi E-Tron (2018+) - M14x1.50 bolts
• Audi Q5 (2008-2016) - M14x1.50 bolts
• Audi Q5 (2017+) - M14x1.50 bolts
• Audi Q7 (2015+) - M14x1.50 bolts
• Audi Q8 (2018+) - M14x1.50 bolts
• Audi QS5 (2013+) - M14x1.50 bolts
• Audi RS4 (2012-2016) - M14x1.50 bolts
• Audi RS4 (2017+) - M14x1.50 bolts
• Audi RS5 (2010-2016) - M14x1.50 bolts
• Audi RS5 (2017+) - M14x1.50 bolts
• Audi RS7 (2013-2018) - M14x1.50 bolts
• Audi RS7 Sportback (2013-2018) - M14x1.50 bolts
• Audi RS7 (2019+) - M14x1.50 bolts
• Audi RS7 Sportback (2019+) - M14x1.50 bolts
• Audi S4 (2009-2015) - M14x1.50 bolts
• Audi S4 (2016+) - M14x1.50 bolts
• Audi S5 (2007-2016) - M14x1.50 bolts
• Audi S5 (2017+) - M14x1.50 bolts
• Audi S6 (2011-2018) - M14x1.50 bolts
• Audi S6 (2019+) - M14x1.50 bolts
• Audi S7 (2011-2018) - M14x1.50 bolts
• Audi S7 (2019+) - M14x1.50 bolts
• Audi S8 (2011-2018) - M14x1.50 bolts
• Audi S8 (2019+) - M14x1.50 bolts
• Audi SQ5 (2012-2017) - M14x1.50 bolts
• Audi SQ5 (2017+) - M14x1.50 bolts
• Audi SQ7 (2016+) - M14x1.50 bolts
• Audi SQ8 (2019+) - M14x1.50 bolts
• BMW 1 Series F52 (2017+) - M14x1.25 Bolts
• BMW 2 Series Active Tourer F45 (2014-2021) - M14x1.25 Bolts
• BMW 2 Series Gran Tourer F46 (2015-2023) - M14x1.25 Bolts
• BMW 2 Series Active Tourer U06 (2022+) - M14x1.25 Bolts
• BMW 3 Series G20 & G21 (2019+) - M14x1.25 Bolts
• BMW 4 Series F44 (2021+) - M14x1.25 Bolts
• BMW 4 Series G22, G23 & G26 (2020+) - M14x1.25 Bolts
• BMW 5 Series G30 & G31 (2017+) - M14x1.25 Bolts
• BMW 6 Series G32 (2018-2023) - M14x1.25 Bolts
• BMW 7 Series G11 & G12 (2015+) - M14x1.25 Bolts
• BMW 8 Series G15 (2018+) - M14x1.25 Bolts
• BMW i3 (2013+) - M14x1.25 Bolts
• BMW i4 (2021+) - M14x1.25 Bolts
• BMW i8 (2014+) - M14x1.25 Bolts
• BMW iX (2021+) - M14x1.25 Bolts
• BMW iX3 (2020+) - M14x1.25 Bolts
• BMW M5 F90 (2018+) - M14x1.25 Bolts
• BMW M8 (2019+) - M14x1.25 Bolts
• BMW X1 F48 (2015-2019) - M14x1.25 Bolts
• BMW X1 (2019+) - M14x1.25 Bolts
• BMW X2 F39 (2018+) - M14x1.25 Bolts
• BMW X3 G01 (2014+) - M14x1.25 Bolts
• BMW X3M F97 (2019+) - M14x1.25 Bolts
• BMW X4 G02 (2018+) - M14x1.25 Bolts
• BMW X4M F98 (2019+) - M14x1.25 Bolts
• BMW X6 G06 (2019+) - M14x1.25 Bolts
• BMW X6M F96 (2020+) - M14x1.25 Bolts
• BMW XM G09 (2023+) - M14x1.25 Bolts
• BMW X7 (2018+) - M14x1.25 Bolts
• BMW Z4 G29 (2018+) - M14x1.25 Bolts
• Chrysler Crossfire (2002-2007) - M12x1.50 bolts (not suitable for OEM wheels)
• Mini Cooper (2014+) - M14x1.25 bolts
• Mini Cooper S (2014+) - M14x1.25 bolts
• Mini Countryman (2017+) - M14x1.25 bolts
• Mini One (2014+) - M14x1.25 bolts
• Porsche Macan (2014+) - M14x1.50 bolts
• Rolls-Royce Cullinan (2018+) - M14x1.50 bolts
• Ssangyong Korando CK (2010+) - M12x1.50 bolts
• Ssangyong Tivoli (2015+) - M12x1.50 bolts
• Volkswagen Transporter T2 (1967-1979) - M14x1.50 bolts
• Volkswagen Transporter T3 (1979-1990) - M14x1.50 bolts

Important Notice

We also offer a range of specific wheel spacers designed for Mercedes cars fitted with long hubcentric flanges on the hubs. If you are looking for such application, please check this link instead : 5x112 Mercedes Hubcentric Wheel Spacers - 15 mm (Thin Lip CB 66.6).
