Link ECU Razor PDM (Power Distribution Module)

Link ECU Razor PDM (Power Distribution Module) Specifications

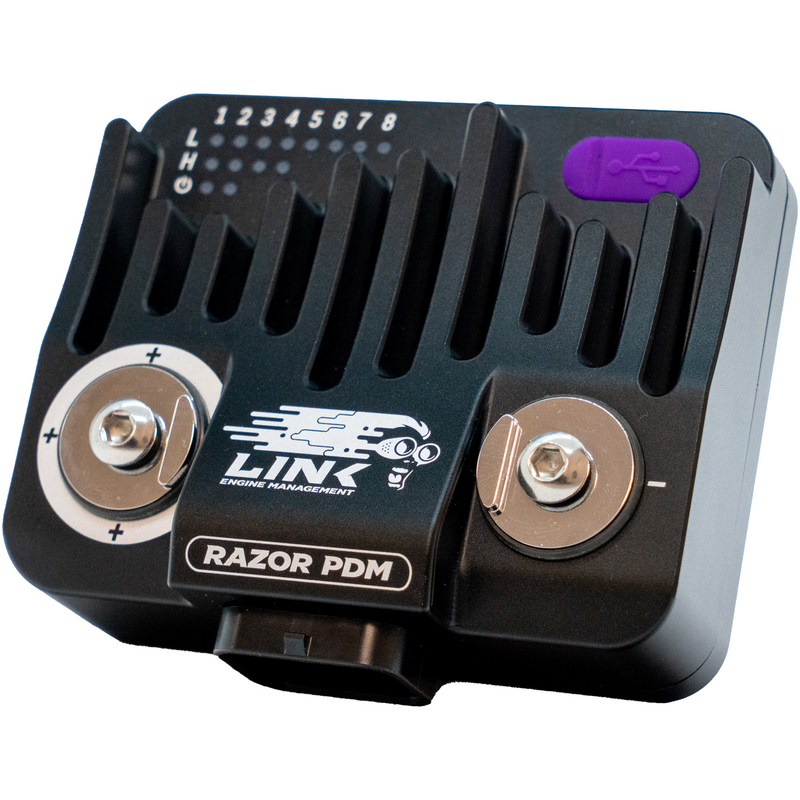

The Razor PDM (Power Distribution Module) is a programmable module designed to manage power distribution to various components, such as lights, fans, and fuel pumps, based on signals from ECUs, CAN keyboards, switches, or sensors.

With the Razor PDM, you have complete control: it provides precise power distribution, automatically adjusts settings in real time, and troubleshoots immediately to prevent failure or damage. Its compact solid-state design makes installation easy by reducing the amount of wiring and connectors required.

The Razor PDM is very easy to configure using Link preset files. These basic configurations are ready to use for many common PDM installations. Simply wire the device, select the preset that fits your application, and you’re done ! This will save you time, money, and effort, while adding reliabiity.

Technical Data

Specifications :

• 25A continuous, 80A max safe peak, PWM capable 10KHz max
• Max input voltage 12V, max measurable voltage 5V
• <300mA no output static current draw
• Weight : 475 g

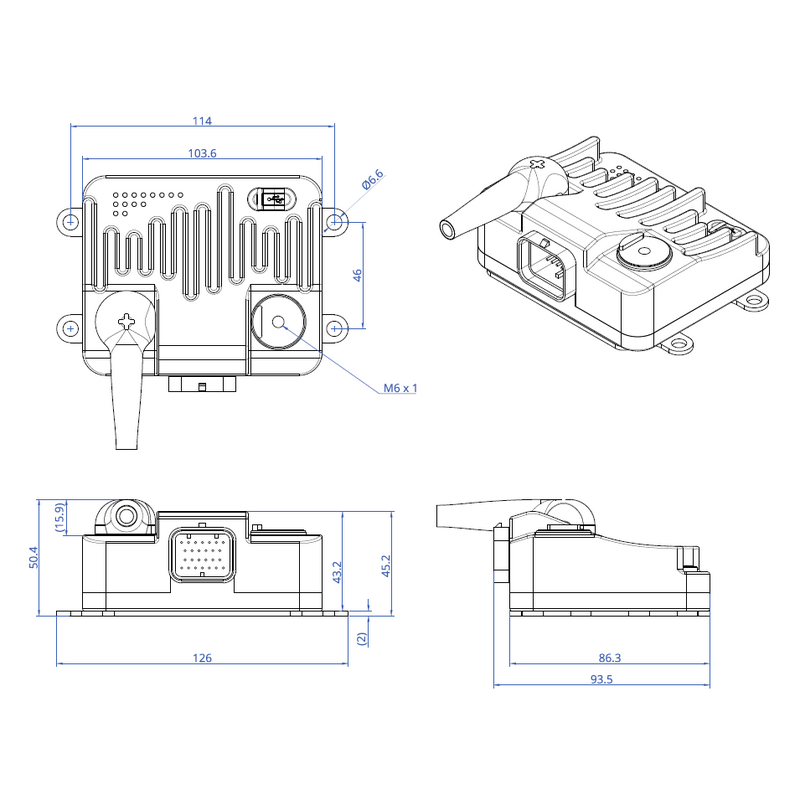

• Dimensions : (L) 103.6 mm x (W) 93.4 mm x (H) 43.2 mm
• Housing type: anodised aluminium
• Water resistant
• -40 to +80 °C operating temperature

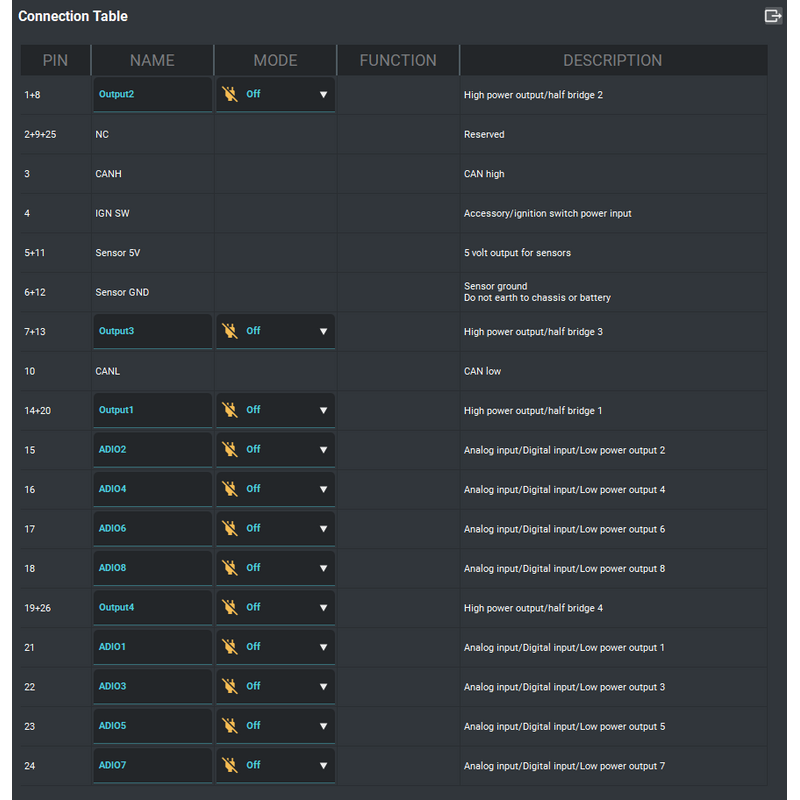

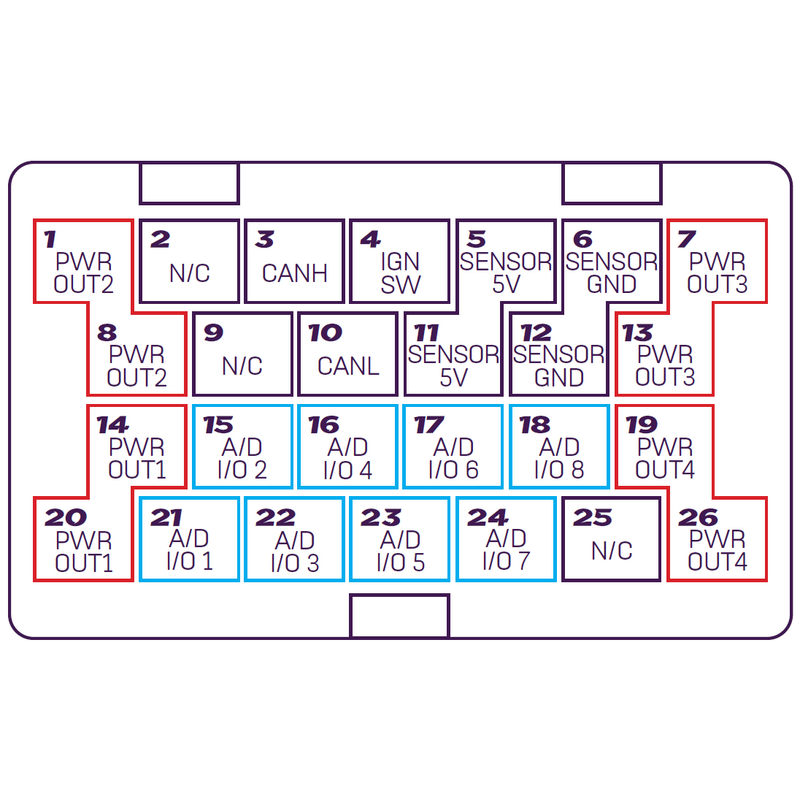

High Power Outputs :

• 4x High power outputs. Highside or lowside drive or paired in H-bridge configuration
• 8x "ADIO" - Analog-Digital-Input-Output
• All 8 capable of analog and digital/switched input
• All 8 capable of highside drive on/off output
• 4x capable of PWM/Frequency/Duty cycle/Speed input. 10KHz max (ADIO 5-8)
• 4x capable of PWM output. Highside drive only. 10 KHz max (ADIO 1-4)
• Software controlled pull-ups (4K7 to 5V)
• Output 8A max, overcurrent protected but current limit is not user adjustable (wire must be capable of 8A)

Power :

• 6 - 24 Volts operating range (across main terminals)
• 12 and 16 Volt systems supported - nominal operation
• 4.5V - 5.5V USB (Low power mode, configuration only)
• 5V Sensor supply
• Sensor ground

Communication :

• USB (C type connector)
• CAN BUS user configurable bit rate

Software updates :

• Free
