GReddy DCT Cooler Kit for Nissan GT-R

Some options are available below Please check them before adding to the cart

GReddy Transmission Oil Cooler Kit

  • For Nissan GT-R
  • Engine code: VR38DETT
  • Ideal for intensive use
  • Drastic reduction of the oil temperature
  • Built-in thermostat
  • Comes complete with all accessories required for installation: hoses, bolts, brackets, fittings, etc.
  • GReddy part numbers: 12024810 / 12024811 / 12024814
  • Made in Japan
  • Express delivery!
  • Your choice *Please fill in this field.
  • Optional gearbox oil (11L recommended)

GReddy DCT Oil Cooler Kit for Nissan GT-R R35 Specifications

Specially designed for the Nissan GT-R R35, this GReddy cooler allows to significantly lower the oil temperature of the OEM 6-speed dual clutch gearbox, especially under heavy use. On the GT-R, when the temperature rises above 140°C, the failsafe engages and the throttle remains closed. With this kit, you'll be able to exploit the transmission's capabilities for longer while improving its reliability.

GReddy has developed an air-cooled oil cooler core that sits inside the left front fender and works in conjunction with the standard water-cooled heat exchanger. Together they keep the GR6 gearbox oil at the optimum temperature, even during low temperature starts, for extended performance on the road and track.

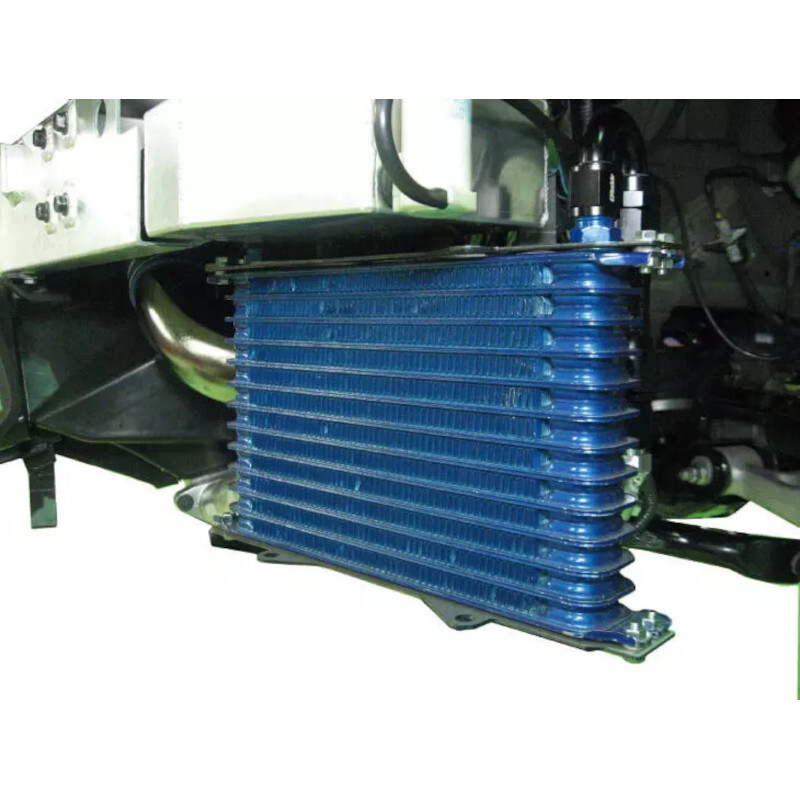

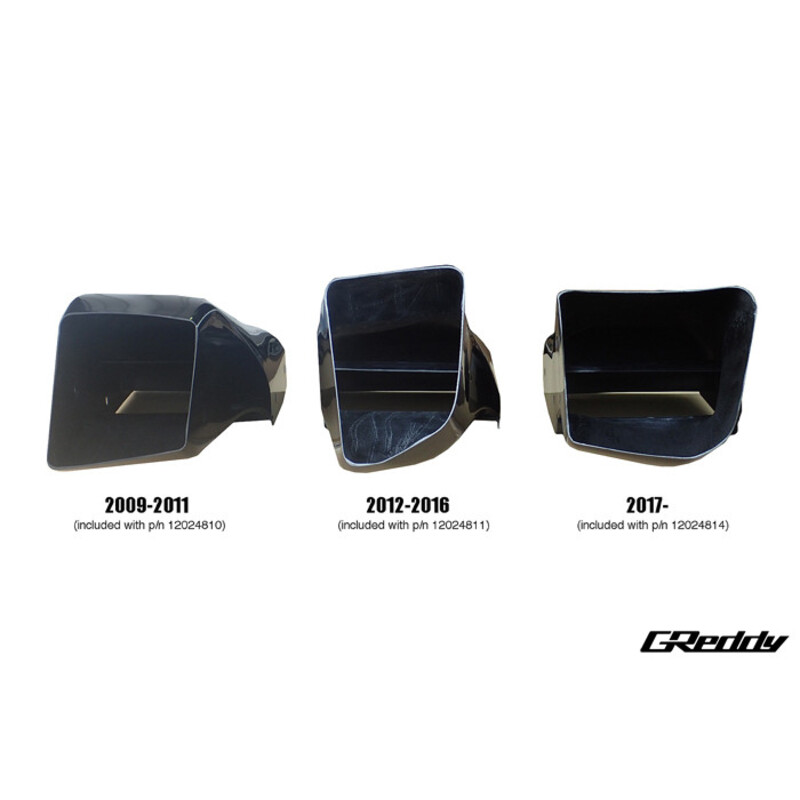

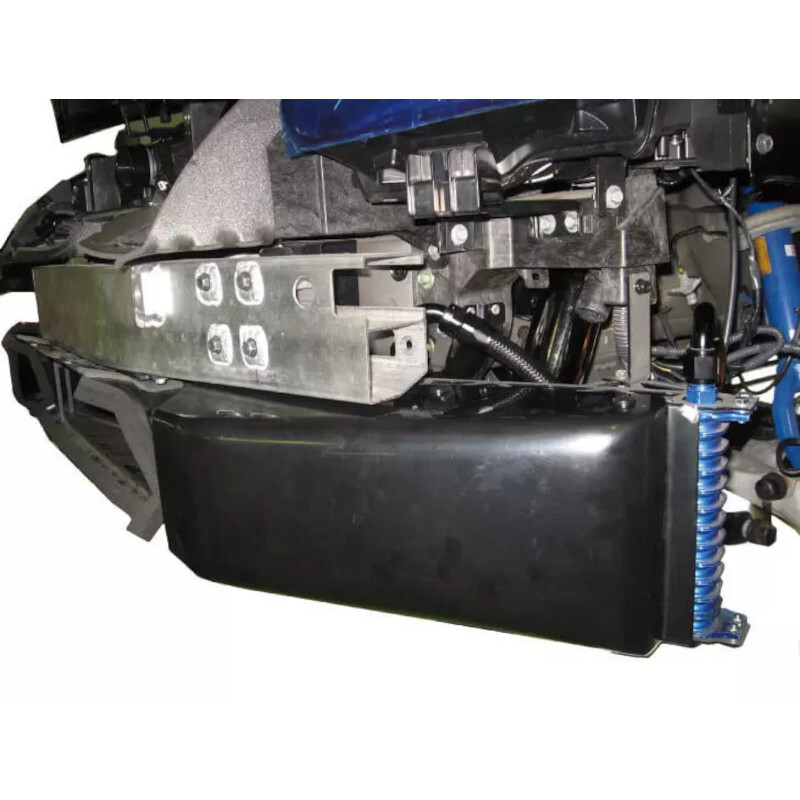

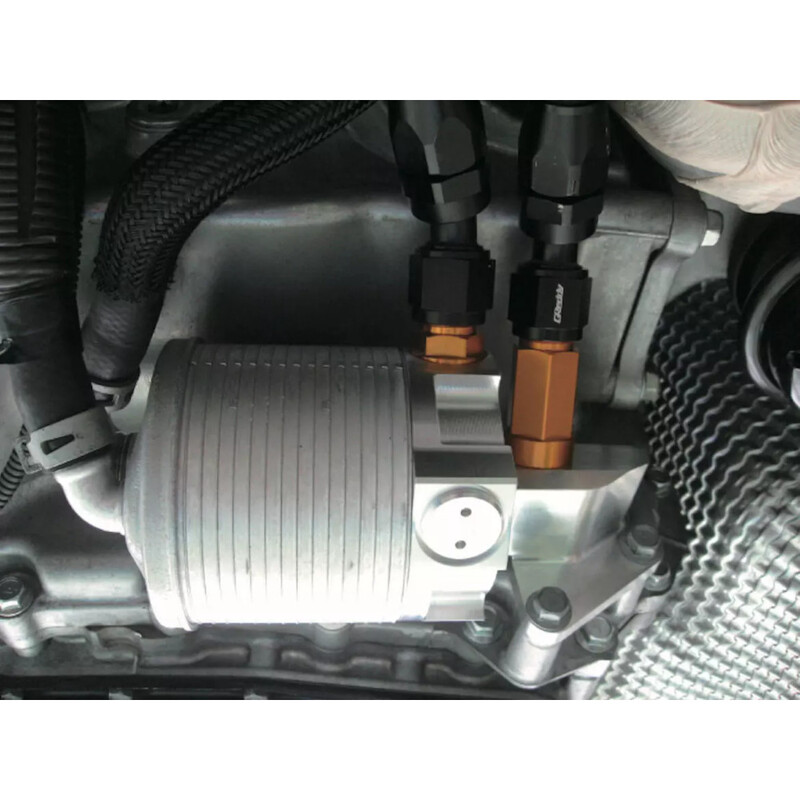

The 13-row cooler is housed behind a GT-R model-specific fibre duct, compartmentalised like the stock one, for optimum fresh air supply. Made from anodised aluminium, the supplied oil block with built-in thermostat helps to stabilise oil temperature and provide better oil control by isolating the line of the genuine heat exchanger and the line of the DCT cooler core.

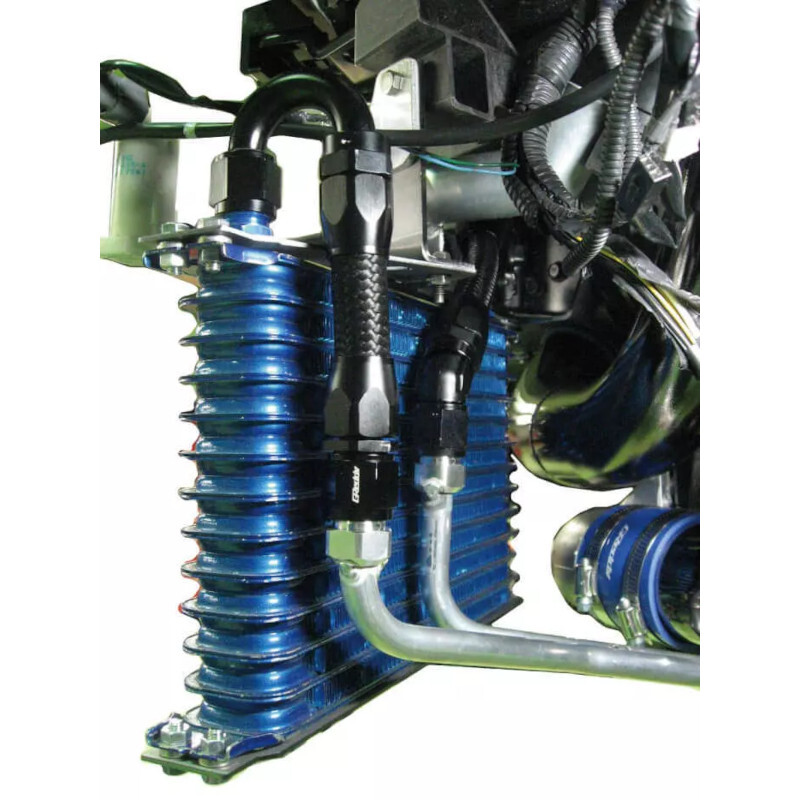

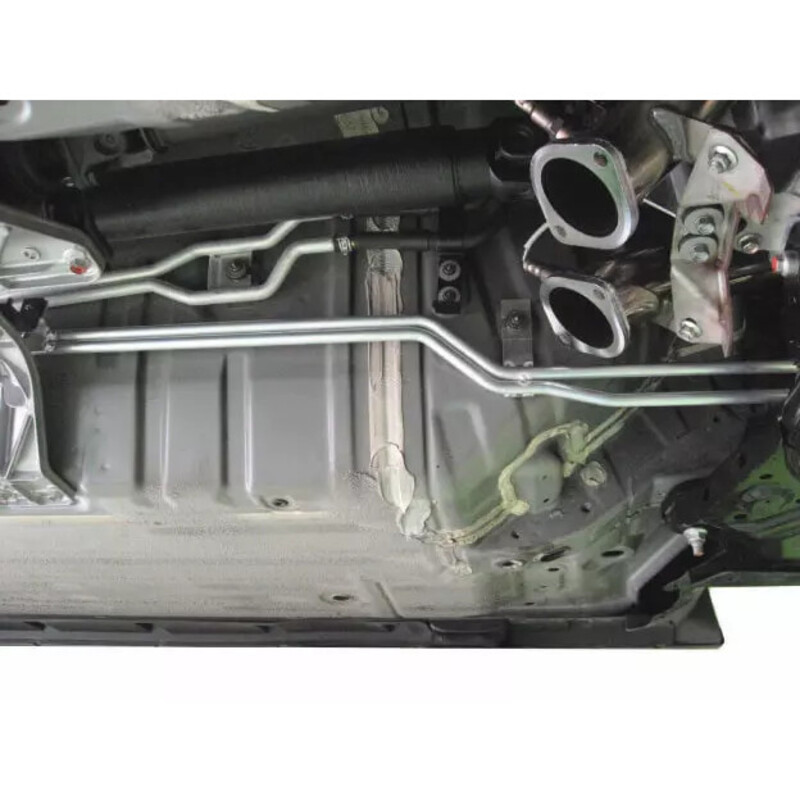

Easy to install, 14mm diameter aluminium pipes are used to connect the oil block to the DCT cooler. The shortened piping route optimises flow and reduces the loss of oil pressure from the DCT pump. Size 10 fittings and fire-resistant nylon hoses ensure excellent safety.

Kit Contents

  • Oil cooler core (13 rows)
  • Oil block (built-in thermostat)
  • Aluminium piping
  • FRP air supply duct with partition plate
  • Hoses, fittings and stays

Please note: This kit is available for the 2009-2011 (CBA-R35), 2012-2016 (DBA-R35) and 2017+ (4BA-R35) GT-Rs. It requires a GReddy specific washer tank p/n 13526110 for CBA-R35/DBA-R35 and 13526111 for 4BA-R35, sold separately.


Car Make Nissan
Car Model Nissan GT-R
Engine Code VR38DETT
