Exelixis PDM-16 Power Distribution Module Specifications

Exelixis, a French company specialising in electrical harnesses and motor management, has developed the PDM-16 Power Distribution Module in collaboration with HP Electronik. With 16 outputs and capable of handling up to 40 A, it is the most compact and powerful unit currently available on the market.

A PDM is a device used to replace conventional relays and fuses to simplify the wiring harness and reduce weight, while increasing reliability. It is designed to provide electronically switched power to the vehicle's various electrical systems, and can be programmed to perform various tasks automatically. It also provides comprehensive diagnostic information, enabling the whole vehicle to be monitored by telemetry.

The Exelixis PDM-16 unit is available in two versions:

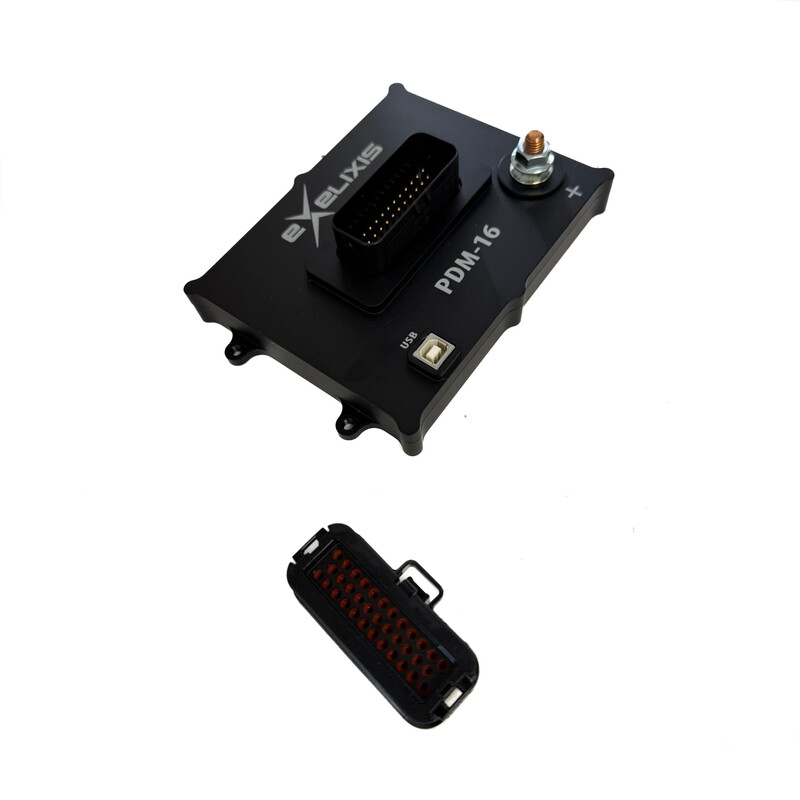

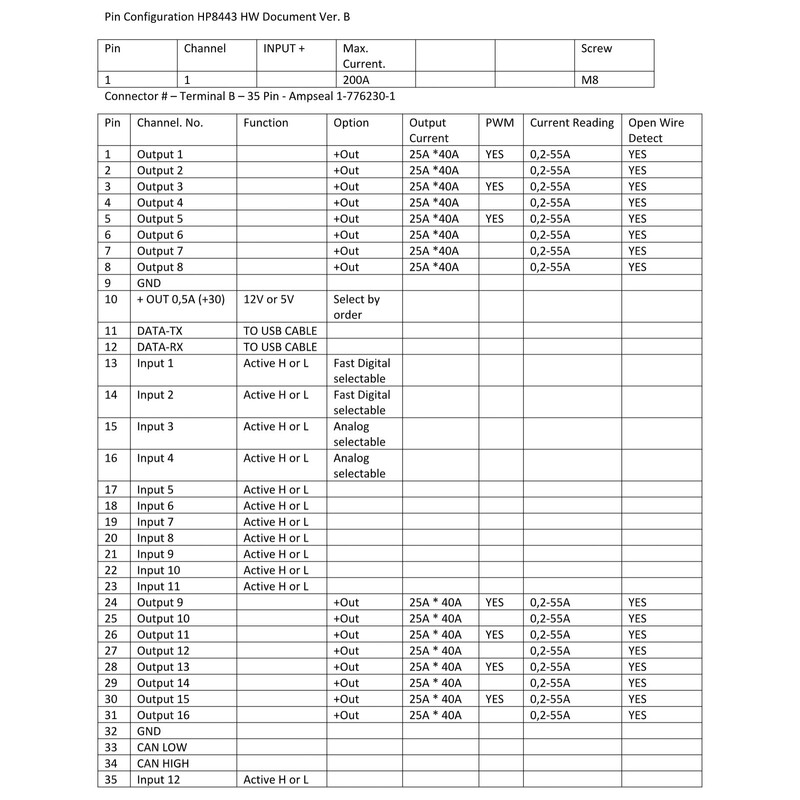

• Standard : the PDM with AMPseal connectors + pins, allowing the user to create their own wiring.

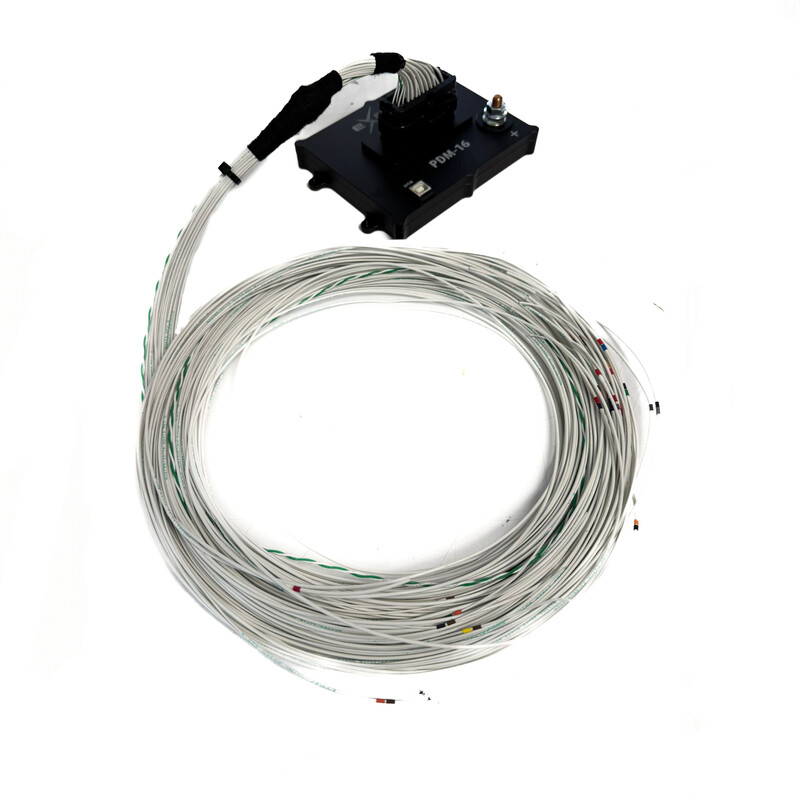

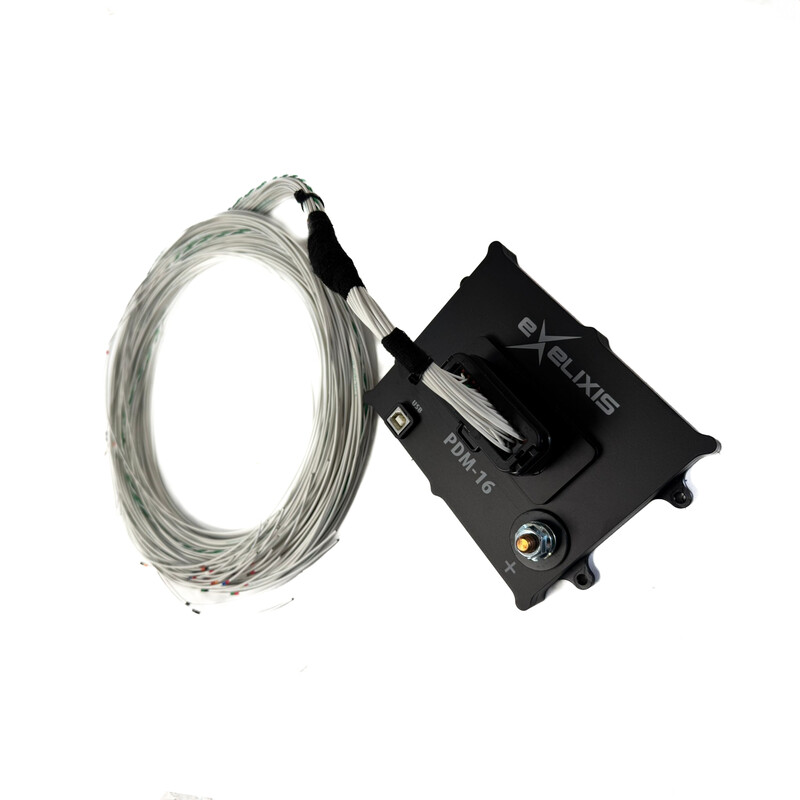

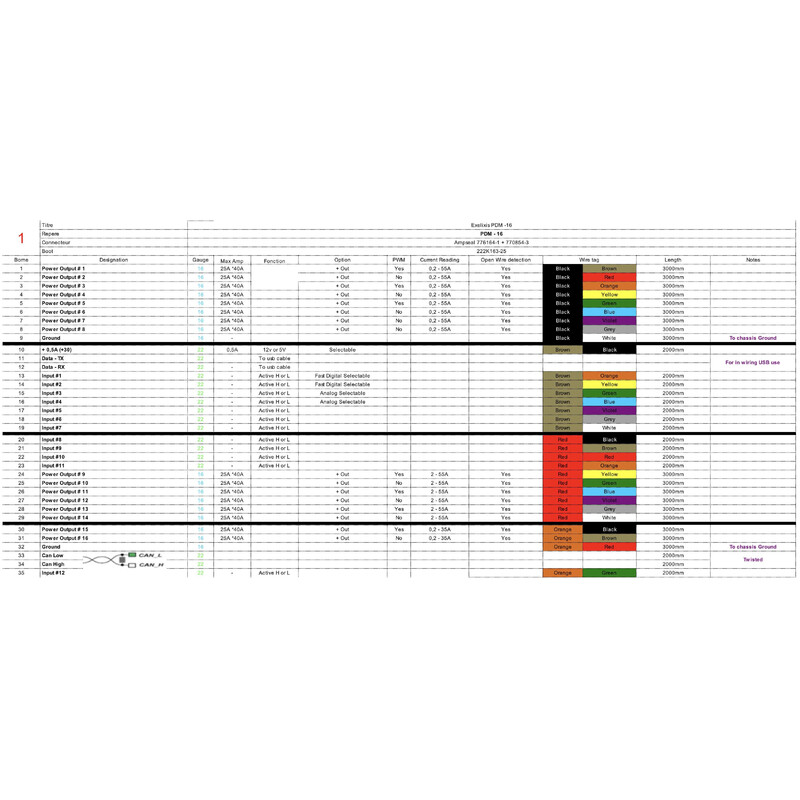

• Premium : the PDM with 3 metres of M22759/32 military-grade wiring, ready for installation on any vehicle.

This PDM is designed to work in perfect synergy with MaxxECU ECUs and Exelixis dashboards, which will benefit from a major update. This update will enable users to view amperage consumption directly on the display, without the need for a PC to diagnose faults in the electrical circuit.

Technical Data

Specifications:

• +200 A load (PCB tested up to +400 A)
• Voltage: 12 and 24 volts
• Active voltage: 5.7-32 volts DC
• Minimum current consumption: 2.3 mA
• Weight: 436 grams
• Housing type: anodised aluminium
• AMPseal Gold connectors

16 outputs can be controlled/monitored at up to 6 levels:

• Overload
• Load too low
• Short circuit
• Open wire
• Active state
• Error

12 inputs:

• Toggle/momentary/lock
• Negative input
• Positive input
• Analogue input
• Pulse input (PWM) max. 2 kHz

16 general-purpose 25 A outputs:

• Up to 40 A for a shorter period (limited by Pin)
• PWM 10 Hz - 2 kHz (configurable pulse)

1 CAN input:

• 11 bits
• 29 bits
• Fully configurable

CAN export:

• 5 CAN export levels
• Fully configurable
• All status exports: inputs, outputs, current, status
• Faults, open wire, current, temperature and more

Special functions:

• Integrated CAN monitor - logger
• Flash timers
• PWM
• Output cut-off function
• Output start function
• Parking and wiper logic
• Virtual inputs (logic)
• Error log
• Auto reset fuse
• Sequence functions
• Automatic shutdown
• CAN export of all states, inputs, outputs, current used, virtual, fault states
• Fault output with reset

Warranty:

• 1 year

Software updates:

• Free
