Setrab Slimline 592 Oil Coolers

Some options are available below Please check them before adding to the cart

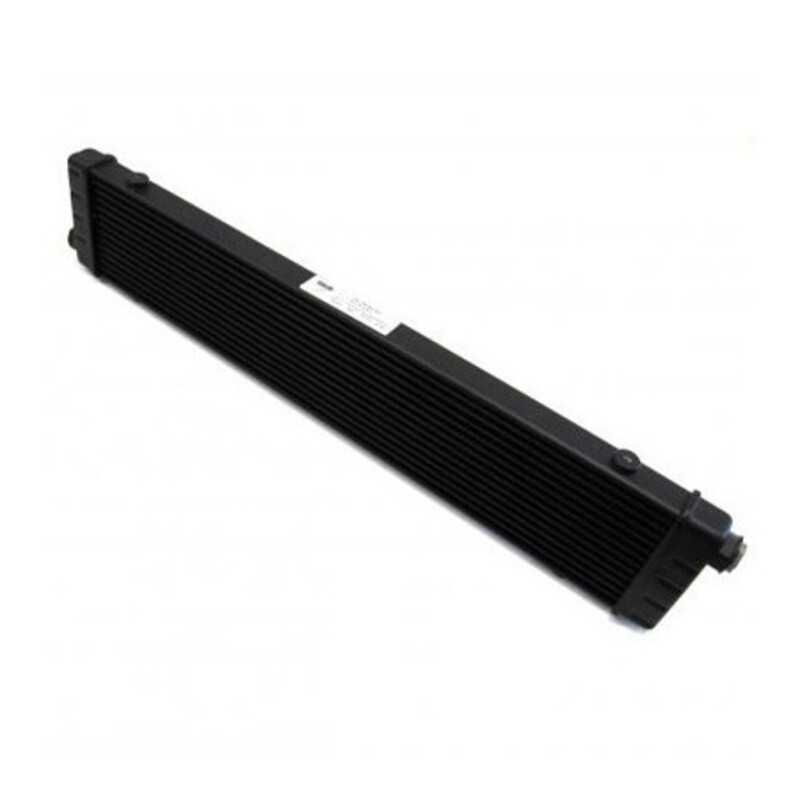

Setrab Slimline 592 Oil Cooler

  • For competitive use
  • Thinner range ideal for confined spaces
  • Made from aluminium
  • Operating pressure: from 0 to 10 bar
  • Operating temperature: -40 to 150°C
  • Available in 6 to 14 row models
  • Optional adapters and brackets for mounting
  • Original Setrab quality
  • Your Choice
  • Optional Fitting (Input)
  • Optional Fitting (Output)

Setrab Slimline 592 Oil Cooler Specifications

Setrab, the world's leading manufacturer of oil coolers for competition, offers thinner Slimline 592 models (592 mm long), perfect for cooling gearboxes, differentials, motorcycle engines and all other similar parts placed in an area with limited space.

Made from aluminum alloy and assembled by brazing, these refined and reinforced products, compared to OEM ones, demonstrate a proven robustness in motorsport guaranteeing the mechanic as well as the driver, first-rate performance and reliability. These Slimline oil coolers are developed to operate at dynamic pressures between 0 and 10 bar, and withstand temperatures ranging from -40°C to 150°C.

Models available

  • SLM 592-06 (6 row) : 655 x 65 x 40 mm (length x height x depth)
  • SLM 592-10 (10 row) : 662 x 101 x 40 mm (length x height x depth)
  • SLM 592-14 (14 row) : 662 x 136 x 40 mm (length x height x depth)

These slimline coolers have an M22 female thread on each side that can accommodate optional adapters for perfect mounting whatever your configuration: Dash 6, Dash 8, Dash 10, Dash 12, Dash 16, 3/8" BSP, 1/2" BSP, 5/8" BSP, 3/4" BSP, M14 female, M16 female, M18 female. They also have female M6 ports on the top and bottom to secure their installation.


Setrab, the world's leading manufacturer of oil coolers for motorsport, offers these Series 1 models ideal for custom configurations and suitable for cooling any type of automotive fluid: engine oil, gearbox oil, clutch fluid, brake fluid, power steering oil ...
