Kaaz Limited Slip Differential for Honda Civic Type R EP3

Honda Civic Type R EP3 - Application List

Chassis	Engine	Year	Transmission	Position	OEM Diff.	Nb. Discs	2-Way Part No.	1.5-Way Part No.
EF9	B16A	89.09-91.09	MT	Front	Open	12	-	DBH1822
EG6/EG9	B16A	91.09-95.09	MT	Front	Open	12	-	DBH1812
EK4	B16A	95.09-97.07	MT	Front	Open	12	-	DBH1812
				Front	Helic.	12	-	DBH1832
EK9	B16B	97.08-01.11	MT	Front	Helic.	12	-	DBH1832
EP3	K20A	01.12-05.08	MT	Front	Helic.	12	-	DBH2020
FD2	K20A	07.03-10.08	MT	Front	Helic.	12	-	DBH2020
FN2	K20A	09.11-12.06	MT	Front	Helic.	12	-	DBH2020

Kaaz Limited Slip Differentials Specifications

Kaaz clutch type LSDs are made in Japan. They are extremely efficient, reliable and great value for money. Whether for drifting, sporty driving on road or track, or for pure racing, they are acclaimed around the world by both amateur and professional drivers.

Equipped with 8 to 24 discs depending on the model, Kaaz differentials guarantee constant, reliable locking, as well as rapid, efficient and predictive behavior for maximum traction and perfect control. Kaaz limited slip differentials come with all required accessories for installation : they replace the internals of the stock differential by re-using the crown gear and the drive pinion, and go in place without any modification. By favouring traction and control, a Kaaz limited slip differential radically transforms and improves the handling and safety of your vehicle.

1.5-Way or 2-Way ?

Kaaz LSDs are generally available in 1.5-way and 2-way versions. The fundamental difference between a Kaaz 1.5-way and 2-way LSD is its reaction during deceleration : thanks to a particular design of the cams acting on the differential lock, a 1.5-way LSD will react only very slightly when lifting off the accelerator. This feature makes 1.5-way LSDs more suitable for use on an open road, or for use in sporty driving, such as "grip".

Meanwhile, a 2-way Kaaz self-locking differential will block as much when accelerating as when lifting the foot. This is particularly suitable for drift use because it offers better control during transitions, and makes it easier to initiate drifting when braking.

In short : under acceleration, 1.5-way and 2-way LSDs react identically. The deceleration lock is much lower on 1.5-way models, making it more suitable for "grip". For pure and hard drifting, choose a 2-way model.

SuperQ Version ?

The SuperQ (Super Quiet) versions of the Kaaz LSDs feature discs that have undergone special treatment, to make the operation smoother and quieter. They provide the same performance as a standard version while reducing the noises sometimes produced at very low speed during manoeuvres. They are therefore recommended for daily road use.

Kaaz LSD Rating

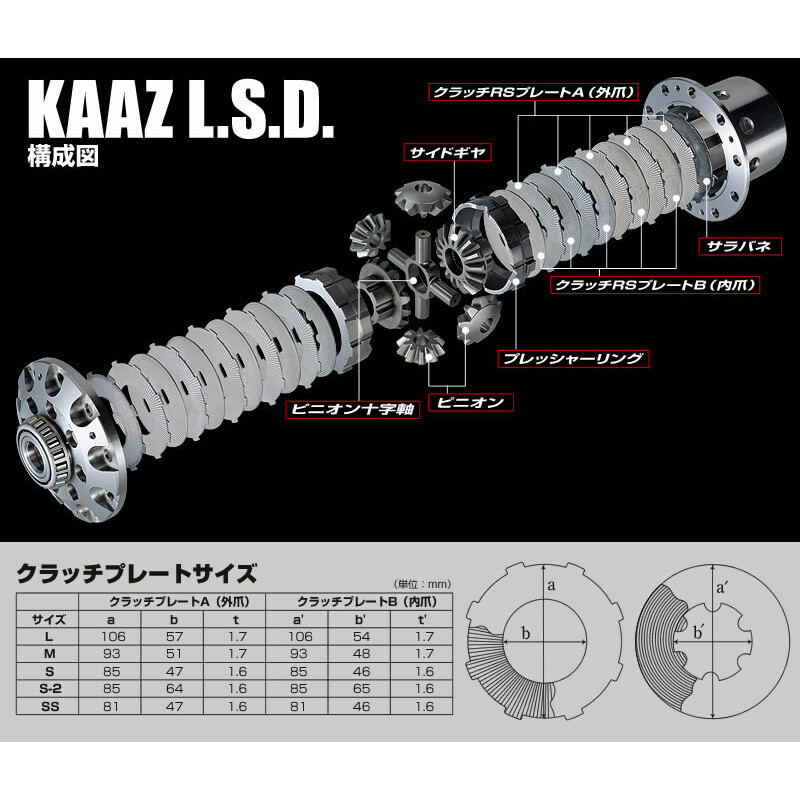

When assembled at the factory in Japan, Kaaz limited-slip differentials are rated for 100% locking, generally optimal for drifting (both wheels spin at exactly the same speed). However, this value can be modified by changing the order of the discs inside the differential housing, to obtain a locking of 35% or 65% according to your needs, more progressive and less radical for road use or grip racing. The diagram below shows you these different possibilities:
