D2 Super Racing Coilovers for BMW M3 E46 (02-06)

Coilover or Inboard Springs ?

This model of adjustable suspension offers you the choice between inboard springs (OEM style set-up), or coilover springs (spring around the shock absorber). Generally lighter and easier to adjust, coilover springs are recommended for tuned vehicles, equipped with a roll cage or used in motorsport. For a standard vehicle used on the open road, D2 recommends keeping the inboard springs setup. Note that between a coilover assembly or a separate assembly, the spring rates can be different : this is a difference in technical design due to the shape of the springs, the design of the vehicle's axles, or even the position of the original springs on the chassis. In feel and use, the separate and coilover models are identical, and show no significant difference in driving performance or comfort.

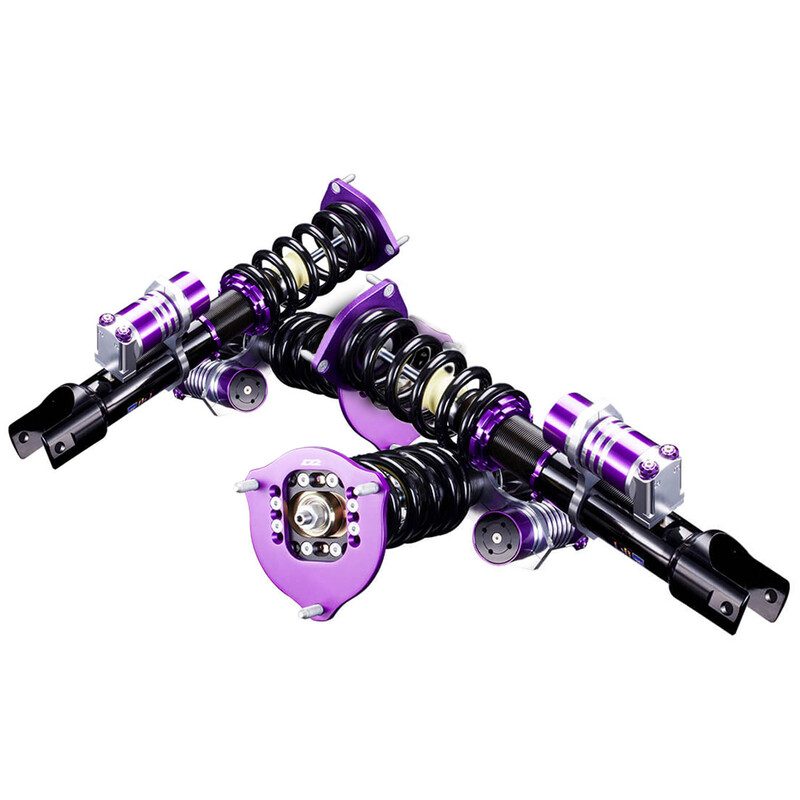

D2 Super Racing Coilovers Specifications

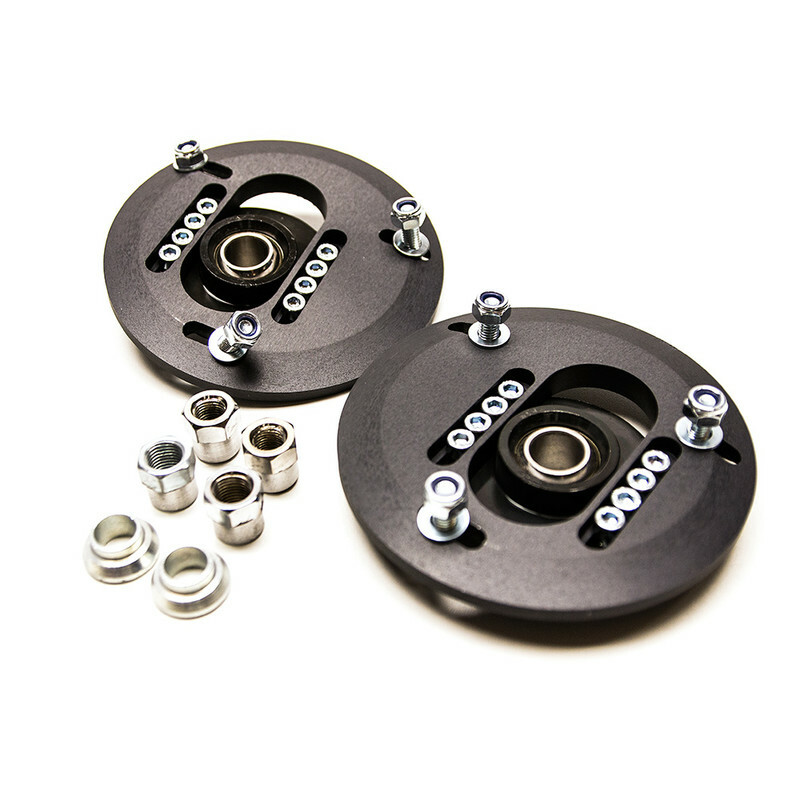

Specifically designed for motorsport, the Super Racing series is both compression and rebound adjustable. The internal nitrogen gas pressure can also be controlled, allowing for extremely precise adjustments (over 10.000 combinations per shock). Separate oil reservoirs offer large overall oil capacity and help control temperature rise to give consistent performance. These tanks are fixed on the shock bodies. Giving virtually infinite adjustment, the Pro Racing series can cater for the most demanding teams and ensure some of the best suspension tuning possibilities. Front camber can be adjusted via the top mounts (McPherson struts only).

Using monotube dampers, D2 Racing coilovers offer a lowering range of up to 10-12 cm (depending on the model), while being corrosion resistant thanks to their aluminium construction. Often lighter than OEM units, D2 coilovers also help reduce weight.

All D2 products are TÜV and ISO-9001 approved and benefit from a one-year manufacturer warranty. For your specific needs, it is possible to modify spring rates; D2 France always keeps a large choice of spare parts in stock, to facilitate maintenance and repair of your suspensions, without delaying other projects. Please contact us for more information.
