Bosch 044 Fuel Pump - 285 L/h

Bosch 044 Technical Specifications

• Flow at 3 BAR : 285 litres / hour
• Flat at 5 BAR : 258 litres / hour
• Maximum pressure : 12 BAR
• Inlet : M18x1.5
• Outlet : M12x1.5
• Overall length : 194 mm
• Diameter : 60 mm
• Weight : 1.03 kg

For setups that exceed 500 horsepower, a serious, high performance fuel pump is required. The Bosch 044 pumps are capable of delivering 285 litres / hour at 3 BAR and 258 litres / hour at 5 BAR (max 12 bar pressure), exceptional performance whilst ensuring reliability.

Bosch pumps 044 are an industry standard, used to great success by many professional teams, combining excellent manufacturing, quality and reliability. For use beyond 600 horsepower, you can combine two Bosch 044 pumps in parallel.

Unlike Walbro pumps, the Bosch 044 is not "plug and play", and will require adaptation work during installation. If necessary, the optional mounting kit offers various adapters and connectors (see picture above):

• Straight 12 mm push on,
• Straight -8
• Inlet adapter
• 8mm push on output
• *other fittings may be required depending on your specific setup

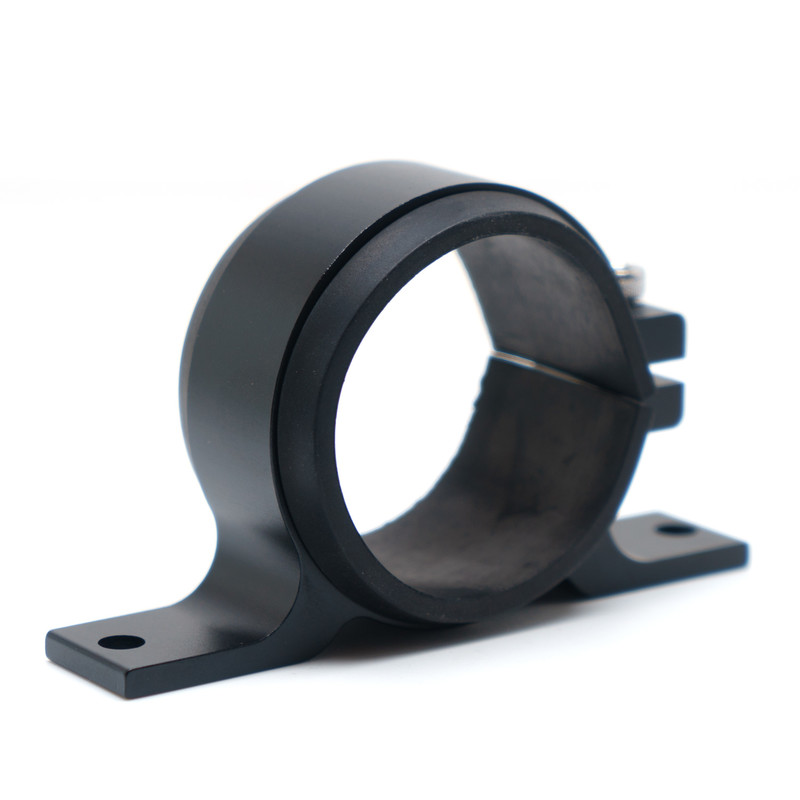

We also offer an aluminium pump bracket: it provides a simple, reliable and secure mount your pump and a quality finish (see photos above).

DriftShop is provided directly from the manufacturer without any intermediary. Our Bosch pumps are 100% genuine and guaranteed 1 year.
