Deatschwerks DW810 810 L/h E85 Fuel Pump Kit with C105 Controller

Deatschwerks DW810 810 L/h E85 Fuel Pump

When modifying or rebuilding an engine, or for a simple FlexFuel conversion, the stock fuel pump is often insufficient and can't let fuel flow through quick enough. The consequences can be disastrous, in the worst case a broken engine (a lean air/fuel mix causing knocking).

The Deatschwerks DW810 brushless fuel pump provides unprecedented high fuel flow in a reliable, quiet, and compact package. The brushless technology reduces friction and heat, increases efficiency, significantly improves pump life with ethanol (E85, E100) and methanol fuels, and allows higher voltages for increased flow. It is capable of delivering 810 lph at 2.7 bar pressure.

Please note that a high flow fuel pump won't increase your vehicle's power. It allows you to replace your existing pump that may be worn or insufficient, and can withstand an increased fuel flow for engine upgrades with high boost pressure, bigger injectors, or other modifications.

Technical Specifications

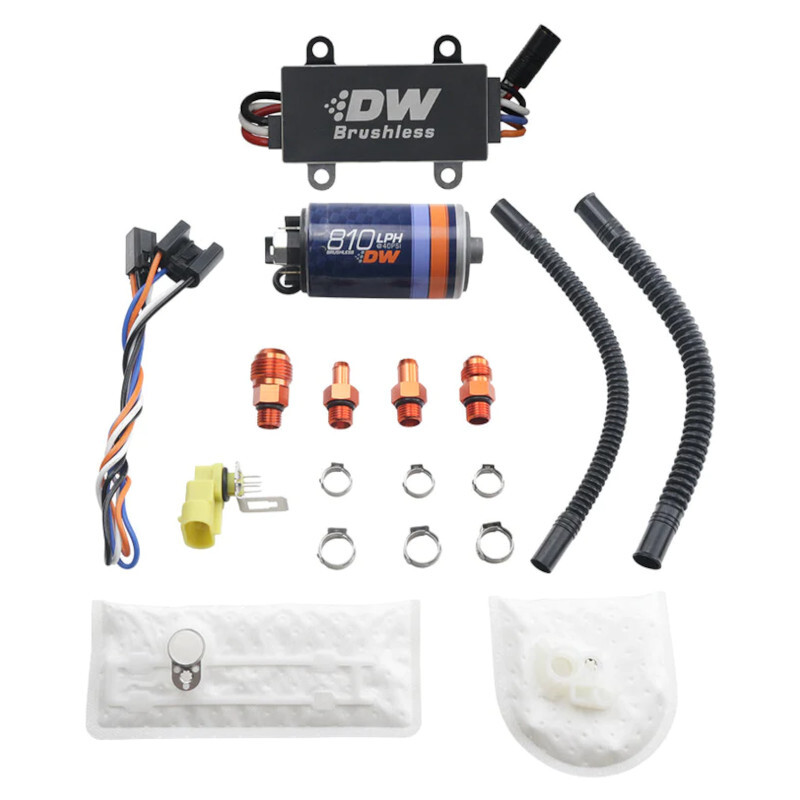

• Components of the universal kit : see picture(s)
• Inlet fitting : 8.5 mm ID, 11.8 mm OD
• Outlet fitting : AN-4 O-ring boss (7/16-20" SAE)
• Min / Max voltage : 8 V / 14.5 V
• Maximum pressure : 7 bars
• Maximum flow : 840 liters / hour
• Flow at 3 bars : 800 liters / hour
• Flow at 5 bars : 710 liters / hour

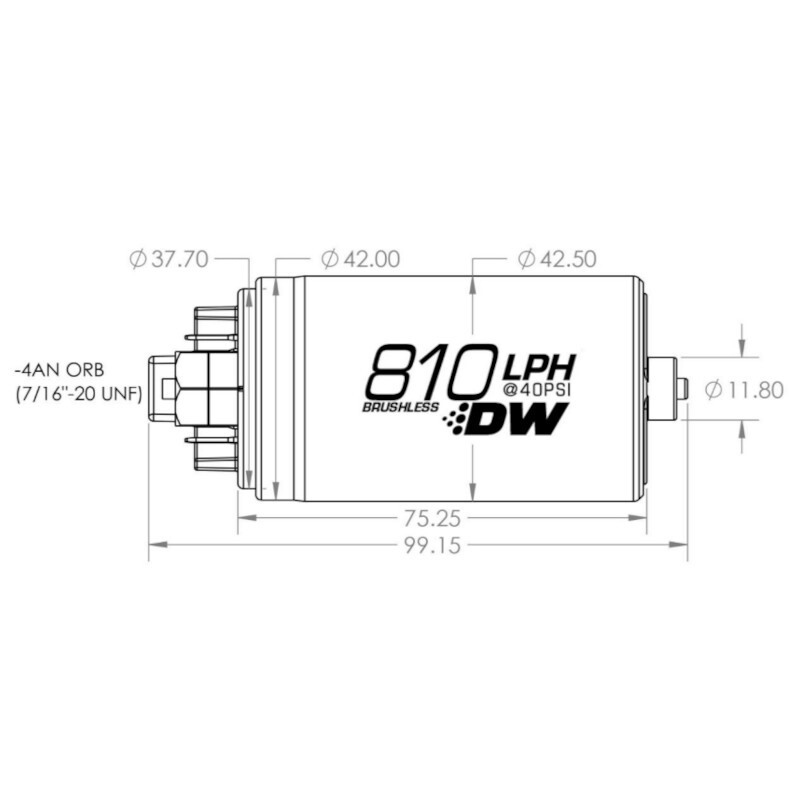

• Length : 99 mm
• Diameter : 42 mm
• Weight : 328 grams
• Need more technical data ? Check out the installation guides on Deatschwerks official website

DriftShop supplies these pumps straight from the manufacturer. These Deatschwerks pumps are 100% authentic with a 3 year manufacturer warrantee.
