AEM Series 2 Plug & Play Engine Management System

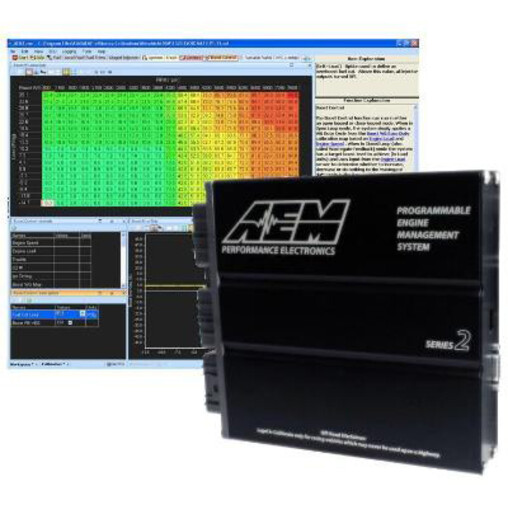

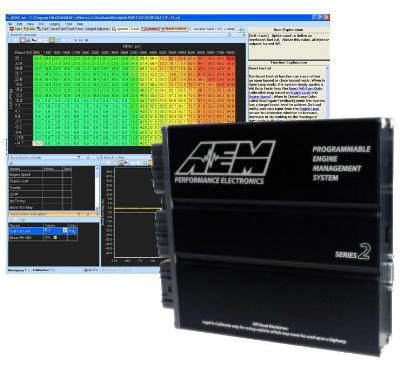

AEM Series 2 EMS

AEM was the first company to offer complete engine control using a race vehicle’s factory wiring harness and sensors. The Series 2 Plug & Play EMS is a culmination of this original program. It combines robust construction with proven AEMtuner Software to deliver total engine control.

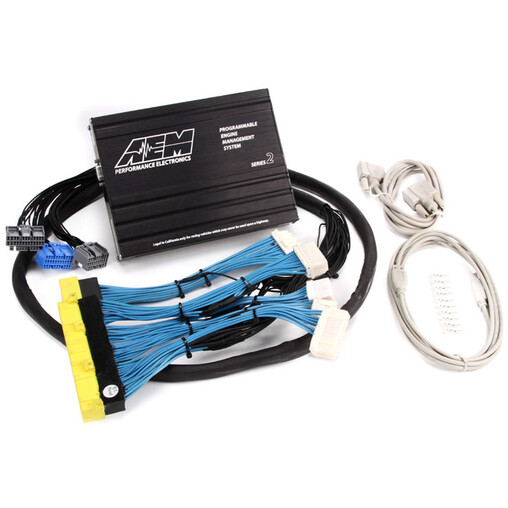

AEM's Series 2 Plug & Play EMS plugs directly into a vehicle's factory ECU harness and requires no additional wiring or hardware. Windows™ compatible software (XP, Vista, 7) simplifies copying, viewing and data manipulation. AEMtuner software is infinitely adjustable. It allows tuners to program virtually any combination of engine control, power adders and auxiliary devices, and accurately deliver proper amounts of fuel and correct ignition timing, for any boost level or operating condition.

Features

• Plugs directly into the factory harness. No rewiring necessary
• Uses all the factory sensors
• Includes start up calibrations
• System is fully enabled and unlocked - Never pay for upgrades!
• Context sensitive help eases tuning process
• Maps can be password protected by the tuner to prevent unauthorized usage or sharing
• Runs on Windows-compatible software
• Tune using new USB communication port or serial port
• Works with all AEM gauges

Capability

• Electronic boost control
• Full idle control
• Programmable traction control
• Software definable knock control
• Two step launch control
• User configurable soft-cut rev limiters
• Wet or dry nitrous control

Specs

• Up to 12 peak and hold injector drivers
• Up to 8 direct-fire coil outputs
• Up to 16 general-purpose outputs
• Up to 8 definable switch inputs
• Up to 4 EGT inputs with fuel trim
• 1MB of internal data logging

AEMtuner Software

Intuitive and easy to use, the AEMtuner Software has many displays to help and inform the user about the various functions. It is possible to protect both reading and editing of your maps using a password, to avoid any copy or modification by a third party.

Thanks to its internal conflict detection system, AEMtuner alerts you to any errors or inconsistencies in your engine maps. Different graphic displays are available for reading and comparison of maps, helping you to analyse data-logging, to constantly improve your performance.



Warning

This installation is not for the tuning novice! Use this system with EXTREME caution! The AEM Series 2 Programmable EMS allows for total flexibility in engine tuning. Misuse or improper tuning of this product can destroy your engine! If you are not well versed in engine dynamics and the tuning of engine management systems DO NOT attempt the installation

Application List

• 30-6030
  • Honda Integra (02-06), K20A2, K20A3, manual only
  • Honda Civic (01-05), D17A1, D17A2, manual only
  • Honda Civic (02-05), K20A3
• 30-6040
  • Honda Integra (92-95), B17A1, B18A1, B18B1, B18C1, manual only
  • Honda Accord (90-95), F22A1, F22A4, F22A6, F22B1, F22B2, manual only
  • Honda CRX Del Sol (93-95), D15B7, D16Z6, B16A3, manual only
  • Honda Civic (92-95), D15B7, D16Z6, manual only
  • Honda Prelude (90-95), B21A1, F22A1, H22A1, H23A1, inc. 4WS, manual only
• 30-6050
  • Honda Accord (98-02), F23A1, F23A4, F23A5, manual only
  • Honda Integra (00-01), B18B1, B18C1, B18C5, manual only
  • Honda Civic (99-00), D16Y7, D16Y8, B16A2, manual only
• 30-6051
  • Honda Accord, Odyssey (99-04), Swap J30A, J32A, J35A, manual only
• 30-6052
  • Honda S2000 (00-05), F20C1, F22C1
• 30-6100
  • Toyota Supra (93-97), 2JZ-GTE
• 30-6101
  • Toyota Supra (93-97), 2JZ-GE
• 30-6310
  • Eagle Talon TSi (95-98), Turbo, manual only
  • Mitsubishi Eclipse (95-02), 4G63, 4G64, manual only
  • Mitsubishi Lancer Evolution 8 (03-05), 4G63
• 30-6311
  • Dodge Stealth (92-96), 6G72
  • Mitsubishi 3000GT (91-97), 6G72
• 30-6320
  • Mitsubishi Lancer Evolution 9 (2006), 4G63
• 30-6600
  • Infiniti G20 (91-93), SR20DE, manual only
  • Nissan 240SX (91-94), KA24DE, manual only, 64 pins
  • Nissan Bluebird (89-95), SR20DET, manual only, 64 pins
  • Nissan 100NX (91-93), GA16DE, SR20DE, manual only, 64 pins
  • Nissan Sunny GTi-R (90-94), SR20DET, manual only, 64 pins
  • Nissan Sentra (91-94), GA16DE, SR20DE, manual only, 64 pins
• 30-6601
  • Nissan 180SX S13 (91-95), SR20DET, manual only, 64 pins
• 30-6620
  • Nissan 200SX S13 (88-90), CA18DET, manual only, 76 pins
  • Nissan 300ZX (90-95), VG30DE, VG30DETT, manual only, 76 pins
  • Nissan Maxima (92-94), VE30DE, manual only, 76 pins
  • Nissan 200SX S14 (94-99), SR20DET, manual only, 76 pins
  • Nissan Skyline R32 (89-92), RB20DET, RB26DETT, manual only, 76 pins
  • Nissan Skyline R33 (93-98), RB25DET, RB26DETT, manual only, 76 pins
