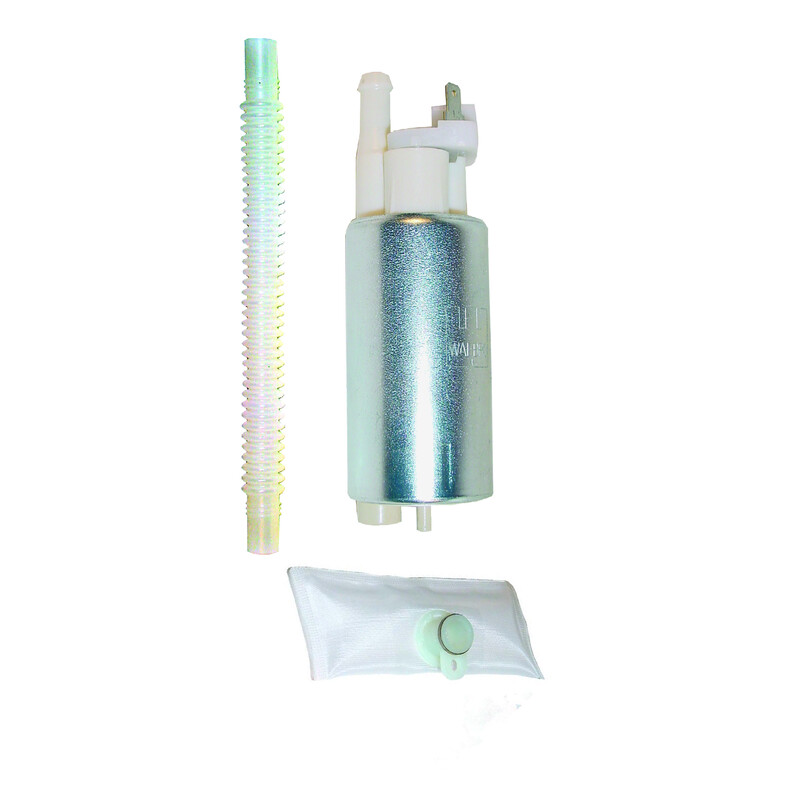

Walbro Motorsport 190 L/h Fuel Pump Kit - Renault Clio RS 2 & 3

Walbro Motorsport 190 L/h Fuel Pump Kit - Renault Clio RS 2 & 3

When tuning an engine, the original fuel pump is often unsuitable and no longer able to provide enough fuel. The consequences can be disastrous, with the worst case being engine failure from running lean.

Fuel pump kits are the first step towards increasing fuel system function and reliability. Note that by itself, a high flow fuel pump does not increase the power of your vehicle. They are used to replace a tired OE pump or when there’s a need for increased fuel flow, such as applications with increased boost pressure, larger injectors, or other changes.

Technical specifications

• Walbro Motorsport 190 L/h fuel pump
• Inlet diameter : 11 mm
• Outlet diameter : 8 mm
• Pump reference : Walbro TTP277
• Voltage : 12 V
• Maximum pressure : 6.8 bar
• Maximum flow : 192 liters per hour
• Flow at 3 bar : 132 liters per hour
• Flow at 5 bar : 72 litres par heure
• Length : 115 mm
• Diameter : 37 mm
• Weight : 300g

Fitments

• Renault Clio 172 2.0, 2001-2003
• Renault Clio 182 2.0, 2003-2006
• Renault Clio 197 & 200, 2006-2011
