AiM Solo 2 DL Plug & Play Kit for Motorbike

AiM Solo 2 DL GPS Lap Timer Kit Specifications

The AiM Solo 2 DL is a lap timer with data acquisition designed for motor sports, both ultra-precise and very easy to use. It receives data from two satellite navigation systems, GPS and Glonass, which makes it much faster and accurate than the previous version with a tolerance of 2 hundredths of a second. It can also be connected to the vehicle's ECU to obtain various data from previously installed sensors.

This lap timer has a high contrast display for excellent readability of the data displayed. It offers a choice of 7 different backlight colors to easily adapt to your preferences.

The predictive lap timing feature allows you to compare your current lap to your best lap in real time. The LEDs are also configurable and inform you if you are faster or slower. Several display options are available depending on your needs.

Very versatile, the Solo 2 DL has two modes: speed races on a closed track or performance tests (for example: 0-100 km/h). For each of these configurations, the lap timer displays all the data in real time and records it for review after each session.

The Solo 2 DL GPS lap timer lets you create a new temporary or permanent track layout if it's not in its database, whether it's a rally stage or a closed-loop track. With more than 2000 tracks from around the world preloaded, Solo 2 DL identifies its location as soon as it is switched on. Once you start driving, it automatically recognizes the track's starting line coordinates and begins sampling lap times every time you go past.

Solo 2 DL can be easily connected to the vehicle's ECU in order to obtain a large amount of data, such as: RPM, throttle position, oil, air and water temperatures, oil pressure, battery voltage, speed, engaged gear, air/fuel ratio.

The Solo 2 DL has built-in Wi-Fi connectivity that allows you to analyze data in depth and transfer it quickly and securely to a computer up to 50 meters away without the use of cables. This data can then be imported into the Race Studio 3 software.

With Race Studio 3, you can create, modify, delete, import and export configurations with all channels, ECU drivers, math channels, display pages, digital outputs, alarms, shift lights... This powerful software can also analyze all the data recorded by the Solo 2 DL and download to your PC: graphs, histograms and tables to provide you with objective support that will help you improve your driving and overall performance.

This kit is specially designed for sport bikes and allows a "plug and play" installation and an easy connection on many models. The complete list of compatible motorcycles is detailed below. Please choose the corresponding option when ordering.

• Aprilia kit : RSV4 RR/RF 2017+, RSV4 1100 2019+, Tuono V4 RR/Factory 2017+
• BMW kit : S1000RR 2009-2014, S1000RR 2015+, S1000RR HP4 2013-2014
• Ducati kit 1 : Panigale 899 2013-2015, 959 2016+, 1199 2012-2014, 1199R 2015-2017, 1299 2015-2019, V4 2018+, V2 2020+
• Ducati kit 2 : 848/EVO/EVO Corse 2007-2013, 1098/S/S Tricolore/R 2007-2009, 1198/S/S Corse/R Corse/SP 2009-2011
• Ducati kit 3 : Hypermotard 796 2009-2011, Multistrada 1200 2010-2011
• Honda kit : CBR 600RR 2003-2019, 600RR HRC (D11 ECU only) 2013-2015, 1000RR 2004-2016, 1000RR HRC 2014-2016
• Kawasaki kit : Ninja ZX-10R 2011+, ZX-10R Racing Kit 2011+
• MV Agusta kit : F3 675 2012+, F3 800 2012+, F4 1000 2013+
• Suzuki kit : GSX-R 600 2006-2019, 750 2006-2019, 1000 2005-2019, 1300 Hayabusa Gen. 2 2008-2016
• Yamaha kit 1 : YZF-R1/R1M 2015+, YZF-R6 2017+
• Yamaha kit 2 : YZF-R1 (YEC incl.) 2004-2008, YZF-R6 (YEC incl.) 2006-2016
• Yamaha kit 3 : YZF-R1 (YEC incl.) 2009-2014

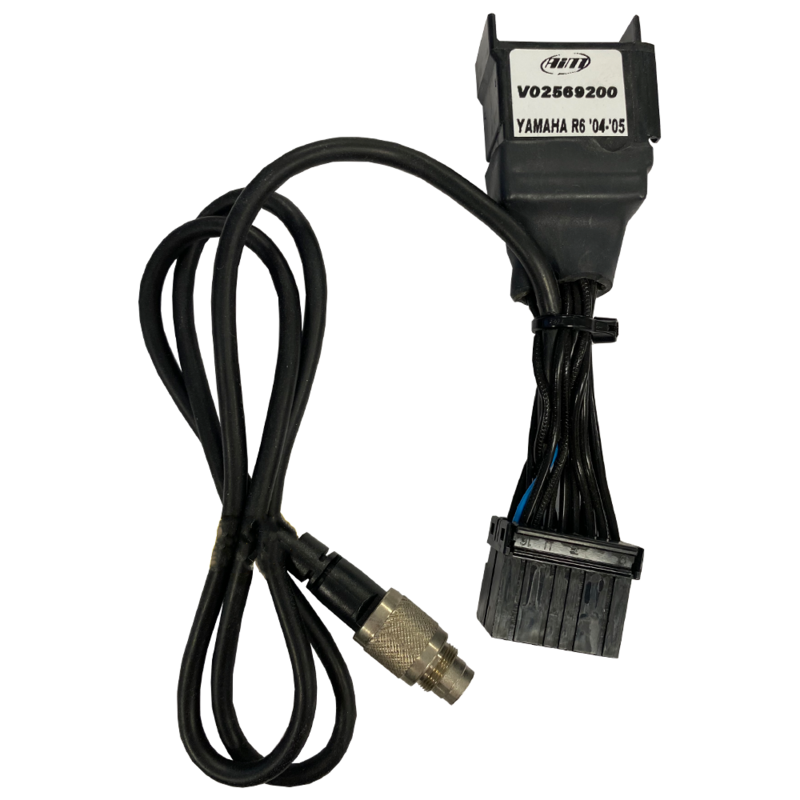

• Yamaha kit 4 : YZF-R6 (YEC incl.) 2004-2005

Technical specifications:

• Display: Graphical
• Resolution: 238 x 99 pixels
• Display pages: Up to 8 freely configurable
• Backlight: 7 configurable RGB colors
• Shift lights/alarm LEDs: 10 configurable RGB LEDs
• 3 axis inertial platform: Accelerometer ± 5 G + gyroscope + magnetometer
• Wi-Fi connection: Yes
• GPS: 10 Hz
• ECU connection: CAN, RS232 or K-Line
• External power: 12 V
• Connectors: 1 Binder 712 socket, 5 pins + 1 Binder 712 socket, 8 pins
• Internal memory: 4 GB
• Battery type: Rechargeable Lithium
• Dimensions: 98 x 73.7 x 30.2 mm
• Weight: 249 g (battery included)
• Waterproof: IP67

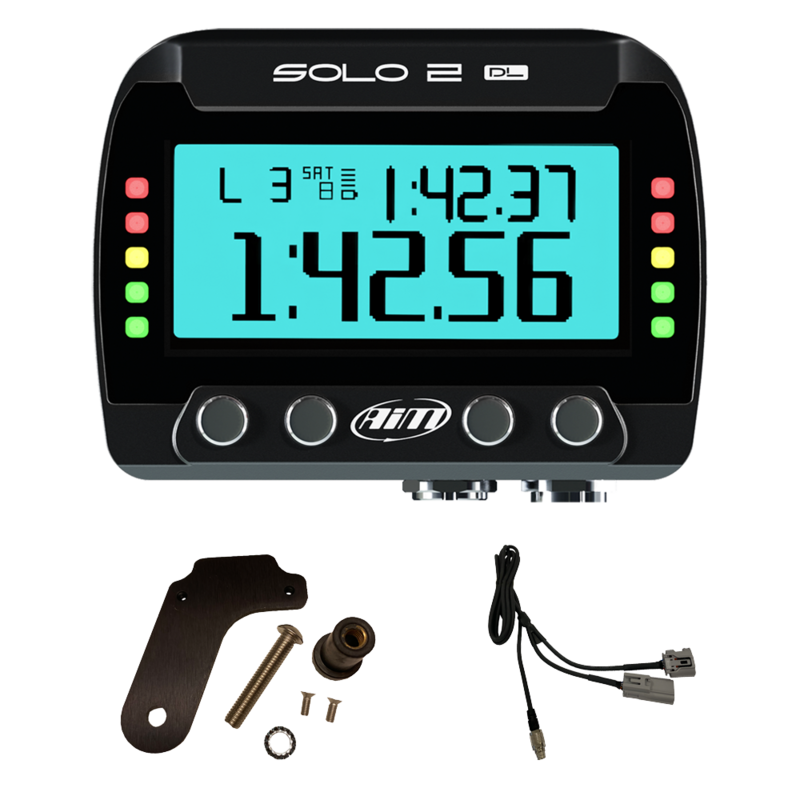

Included in the box:

• Solo 2 DL lap timer
• Power cable with AC adapter
• Specific connection cable of your choice
• Mounting bracket with screws
• Race Studio 3 software
