AiM MX Strada Logger Kit with Data Hub and GPS09 Module

AiM MX Strada Logger Kit Specifications

The AiM Strada Logger kit allows you to turn any MX Strada dash (MXG, MXP, MXS) into a real data logger. No configuration is required, just plug the kit to your device and enjoy the new features available to you!

The data from your practice sessions or races are recorded onto the data logger and can then be downloaded to the Race Studio 3 software for analysis. This opportunity will allow you to improve your performance as a driver, but also to identify possible ways to improve the tuning of your vehicle to save precious seconds.

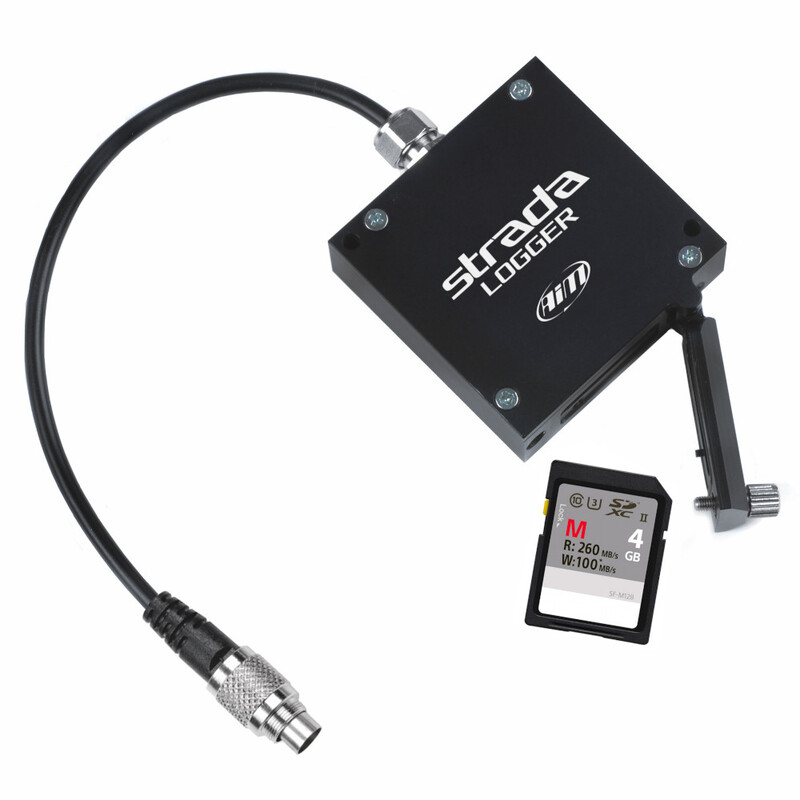

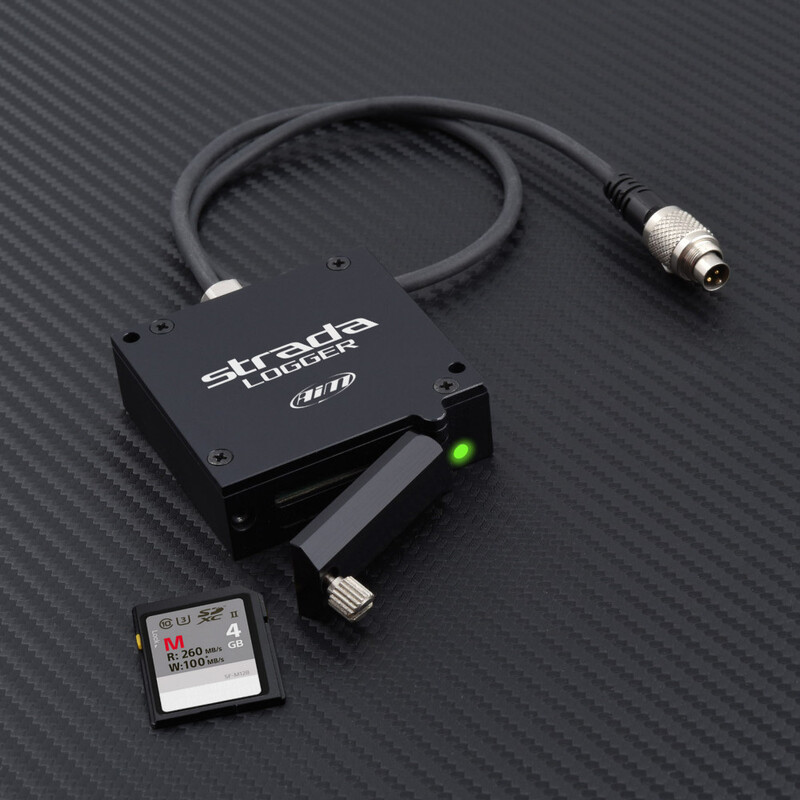

The Strada Logger is an SD card holder to be connected via CAN bus to your MX Strada dash. The data is recorded on the SD card (max. capacity: 32 GB) and stored in the memory of the logger. The SD card can be removed while the engine is running, for example during a pit stop, which gives you the opportunity to analyze your data directly on the track during endurance races or long test sessions. It features a front LED that informs you about its status: recording / firmware update.

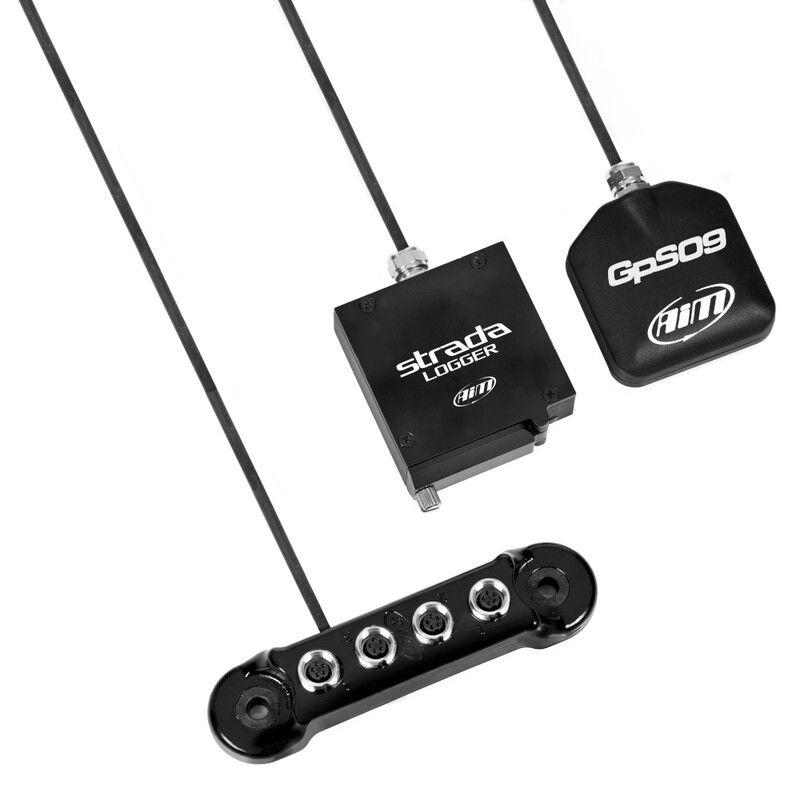

The kit also includes a hub that adds 4 CAN channels and acts as an interface between the logger and its accessories and peripherals. Easy to install, the GPS09 module combines accuracy and reliability to provide instant lap times and all the data needed to help you progress.

Technical specifications:

• Strada Logger
• Max power consumption: 50 mA
• Cable length: 40 cm
• SD card support: Up to 32 GB (not included)
• Dimensions: 55.5 x 78.3 x 18 mm
• Weight: 103 g
• Waterproof: IP65
• 4-Way Data Hub
• Dimensions: 123 x 30 x 23.5 mm
• CAN cable length: 40 cm
• Weight: 97 g
• Waterproof: IP65
• GPS09 Module
• Dimensions: 64.8 x 53.2 x 19.7 mm
• Weight: 60.5 g

Included in the box:

• Strada Logger
• 4-Way Data Hub
• GPS09 Module with cable length choice

Please note: You can also order just the Strada Logger if you don't need the full kit.
